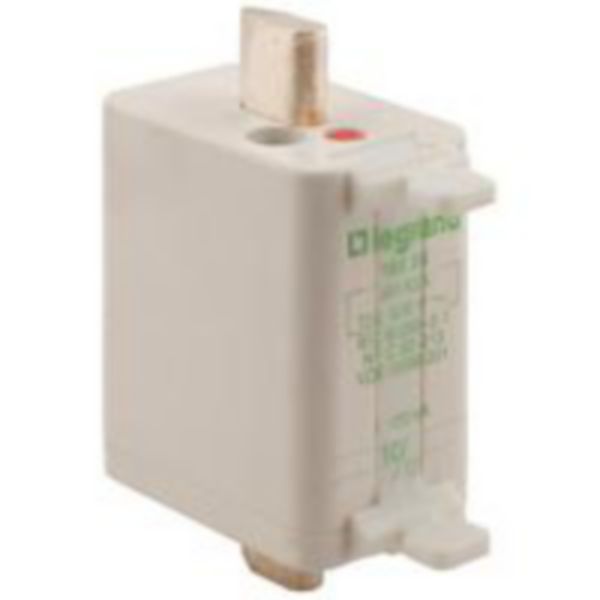

HRC blade type cartridge fuse - cylindrical type aM 22 X 58 - 25 A - w indicator

Name: HRC blade type cartridge fuse - cylindrical type aM 22 X 58 - 25 A - w indicator
SKU: 016035

LEGRAND

REF. 016035 EAN. 3245060160357

Compare You can only compare 4 products, you must remove 1 to add this one

HRC blade type cartridge fuses - gG/gL and aM types
Type aM (motor rated) - Conform to EN 60269 - 1, IEC 60269 - 1, 2 and VDE 0636 - 1 - Fully insulated end plate and handle lugs Size - With indicator - Rating : 63 Amps - Voltage ~ : 500 Volts - Breaking capacity : 120000 Amps

Fuse construction type according to IEC 60269	NH00
Voltage type	AC/DC
Rated current	63 A
Rated voltage AC	500 V
Rated voltage DC	48 V
Utilization category according to IEC 60269	aM (switchgear protection)

Type of fuse status indicator	Top fuse status indicator
Power loss at rated current	2.9 W
Width	78.5 mm
Height	60 mm
Depth	30 mm
