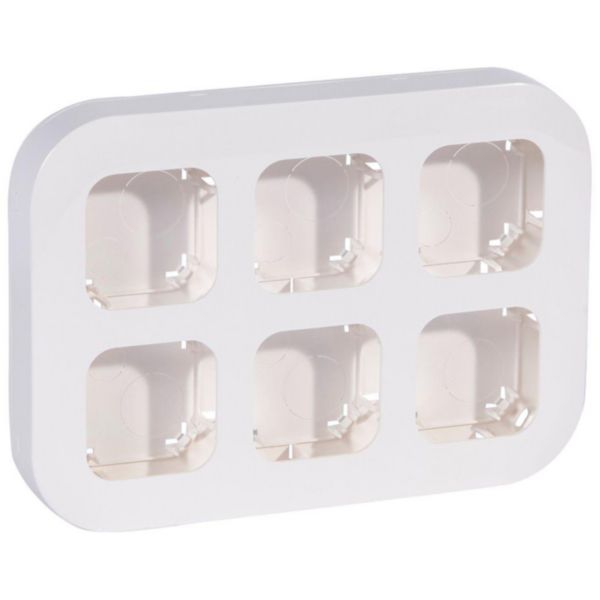

Forix - Workstation to be equipped - horizontal or vertical mounting - 6 gang
Forix
LEGRAND
Forix - Workstation to be equipped - horizontal or vertical mounting - 6 gang
REF. 782496
EAN.
3245067824962
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Assembly arrangement | Surface mounted box |
|---|---|
| Suitable for modular domestic switching devices | No |
| Number of modules (module system) | 6 |
| Number of units | 6 |
| Mounting direction | Horizontal and vertical |
| Shape | Rectangular |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Colour | White |
| RAL-number (similar) | 9003 |
| Transparent | No |
| With cover frame | Yes |
| With duct entry | Yes |
|---|---|
| With cable entry | Yes |
| With screw gland entry | No |
| Shock resistant | Yes |
| Degree of protection (IP) | IP2X |
| Width | 280 mm |
| Height | 200 mm |
| Depth | 34.5 mm |
| Device width | 280 mm |
| Device height | 200 mm |
| Device depth | 34.5 mm |
| degree of impact strength (IK) | IK04 |
| Operating / setting temperature | -25-60 °C |
| Storage temperature | -25-60 °C |
Documentation
2 documents
Instruction Use
Technical Sheet
1 document
Catalogue Commercial Page
