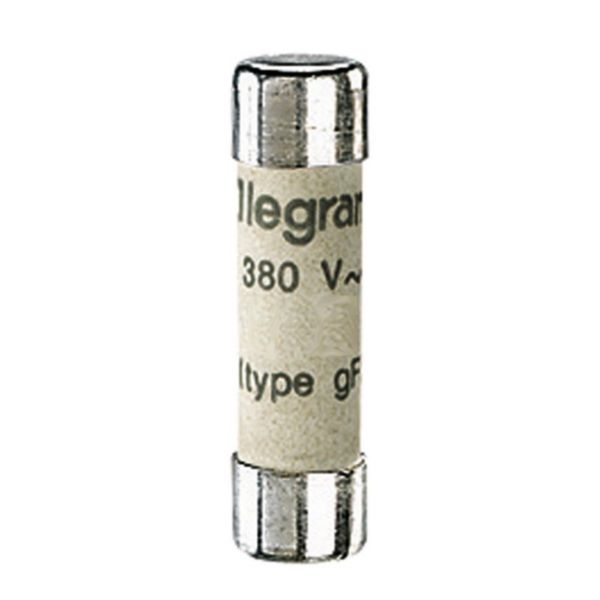

Domestic cartridge fuse - cylindrical type gG 8 x 32 - 10 A - without indicator

Name: Domestic cartridge fuse - cylindrical type gG 8 x 32 - 10 A - without indicator
SKU: 012310

LEGRAND

REF. 012310 EAN. 3245060123109

Compare You can only compare 4 products, you must remove 1 to add this one

HRC cartridge fuses
Cylindrical type gG - Conform to EN 60269 - 1, IEC 60269 - 1 and 28 x 32 (previously 8.5 x 31.5) - Without indicator - Rating : 10 Amps - Voltage ~ : 400 Volts - Rupture capacity : 20000 Amps

Model	Ceramic fuse
Size	8x32 mm
Rated current	10 A
Depth	32 mm
Width	8 mm
Voltage type	AC
Utilization category according to IEC 60269	GG

Rated operating frequency	50-60 Hz
Type of fuse status indicator	Other
Release characteristic	Fast (F)
Power loss at rated current	1.2 W
Operating / setting temperature	-25-40 °C
Storage temperature	-40-70 °C
