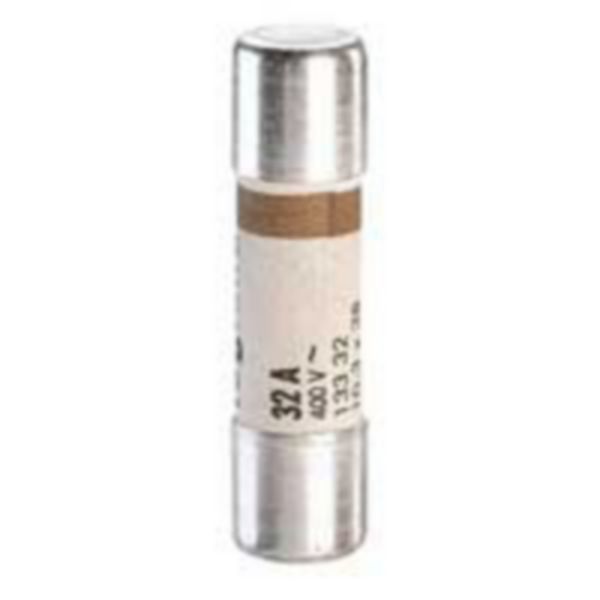

Domestic cartridge fuse - cylindrical type 10.3 x 38 - 32 A - with indicator

LEGRAND

Domestic cartridge fuse - cylindrical type 10.3 x 38 - 32 A - with indicator

REF. 013432 EAN. 3245060134327
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Domestic cartridge fuses
  • Cylindrical10,3 x 38 - Rating : 32 Amps - Voltage ~ : 400 Volts - Rupture capacity Copper : 20000 Amps - Protected section : 6 mm² - Color Indication : Brown

Technical characteristics

Model Ceramic fuse
Size 10x38 mm
Rated current 32 A
Depth 38 mm
Width 10.3 mm
Voltage type AC
Utilization category according to IEC 60269 Other
Rated operating frequency 50-60 Hz
Type of fuse status indicator Top fuse status indicator
Power loss at rated current 3.4 W
Operating / setting temperature -25-40 °C
Storage temperature -40-70 °C
