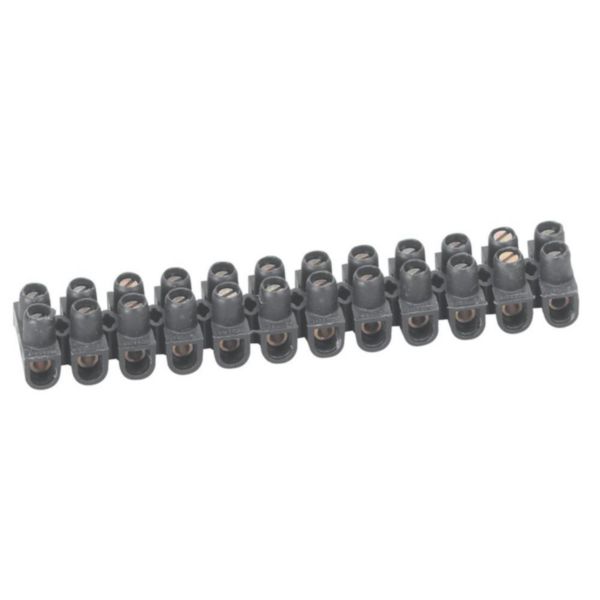

Connection strip Nylbloc - capacity 6 mm² - max. current 41 A - black

Name: Connection strip Nylbloc - capacity 6 mm² - max. current 41 A - black
SKU: 034213

Nylbloc™ LEGRAND

REF. 034213 EAN. 3245060342135

Compare You can only compare 4 products, you must remove 1 to add this one

Nylbloc™ - connection strips and connectors without screws Nylbloc connection strips - 12 elements with captive screws - Supplied with screws undone - Flame retardant polypropylene (– 25 °C to + 100 °C) - Ambient temperature from – 25 °C to + 55 °C (T 55) - Conform to EN 60998 - 2 - 1 and EN 60664 - 1 - Self - extinguishing to EN 60695 - 2 - 11 at 850° - Insulation voltage : 250 V according to EN 60 998 - 2 - 1 - Use at 400 V integrated in a series of products that comply with the requirements of EN 60664 - 1, pollution degree 2, overload category III - Black - Rated capacity : 6 mm ²mm ² - Hole Ø : 3.5 mm - Max current : 41 A

Explosion-tested version 'Ex e'	Yes
Type of electrical connection 1	Screw connection
Type of electrical connection 2	Screw connection
Mounting method	Other
Material insulation body	Thermoplastic

Inflammability class of insulation material according to UL94	Other
Closing plate required	No
Colour	Black
Transparent	No

1 document

Select all

Catalogue Commercial Page

ex223001_0819.pdf pdf (0.1 Mo)

4 documents

Select all

PEP

LGRP-2015-037-V1-EN.pdf pdf (0.62 Mo)

Agreement

AENOR-030/000810 (0.62 Mo)

Agreement

IMQ-EN641 (0.62 Mo)

Agreement

NF App Domestic-650672A (0.18 Mo)
