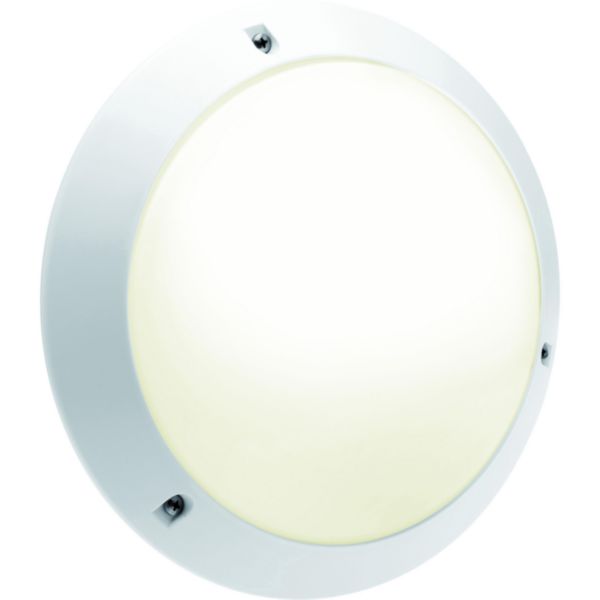

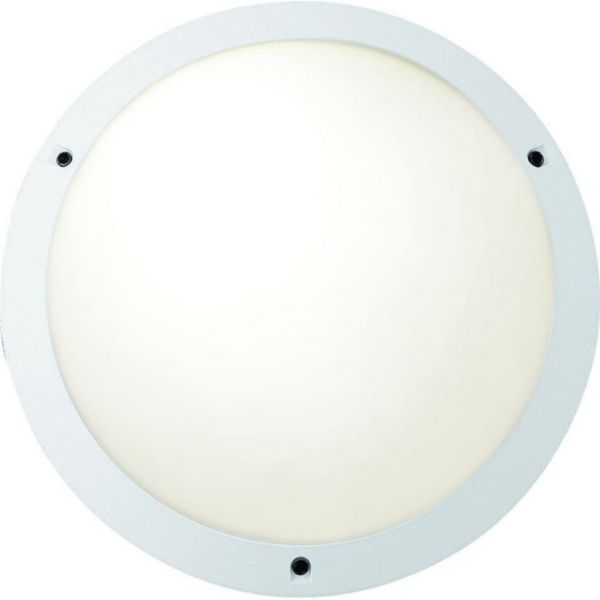

Chartres Origine round decorative bulkhead light - IP54 - IK10 - to be equipped

Chartres Origine SARLAM

Chartres Origine round decorative bulkhead light - IP54 - IK10 - to be equipped

REF. 524270 EAN. 3292295242709
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Suitable for wall mounting Yes
Suitable for suspended mounting No
Suitable for ceiling mounting Yes
Suitable for built-in mounting No
Suitable for surface mounting Yes
Suitable for light line configuration No
Suitable for workplace according to EN 12464-1 No
Lamp type Incandescent lamp
With light source No
Suitable for number of light sources 1
Lamp holder E27
Housing material Plastic
Housing colour White
Material cover Plastic, transparent
Type of grid None
Voltage type AC
Nominal voltage 220-240 V
Nominal current 292-318 mA
Type of control gear Not required
With control gear No
Dimmable No
Dimming 0-10 V No
Dimming 1-10 V No
Dimming DALI No
Dimming DMX No
Dimming DSI No
Dimming manufacturer's proprietary system No
Dimming mains voltage modulation No
Dimming phase cut-off (trailing edge) No
Dimming phase cut-on (leading edge) No
Dimming programmable No
Dimming potentiometer (integrated) No
Dimming RF No
Dimming Touch and Dim No
Dimming Zigbee No
Dimming with push-button No
Light distributor Diffuser lens/optic/panel
Light distribution Symmetric
Beam angle <gt/> 80° - Extreme wide beam
Light outlet Direct
degree of impact strength (IK) IK10
Protection class according to IEC 61140 II
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 No
Rated ambient temperature according to IEC 62722-2-1 -5-40 °C
Luminous flux in emergency mode 1200 lm
Suitable for emergency lighting No
With movement sensor No
With light sensor No
Covering of the luminaire with thermally insulating material possible No
With air slots No
Suitable for lamp power 70-70 W
Luminaire efficacy 0-0 lm/W
Max. system power 70 W
Rated luminous flux according to IEC 62722-2- 1 1200-1200 lm
Colour of light White
Colour temperature 2700-2700 K
Colour rendering index CRI 90-100
Width 340 mm
Height/depth 110 mm
Length 340 mm
Outer diameter 340 mm
Luminous intensity 0-0 cd
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No

Documentation

2 documents
Instruction Use
37141-10.pdf pdf (2.09 Mo)
Technical Sheet
S000078843FR-2.pdf pdf (0.21 Mo)
2 documents
Catalogue Commercial Page
ex223001_0900.pdf pdf (0.06 Mo)
Catalogue Technical Page
ex223001_0902.pdf pdf (0.09 Mo)
1 document
PEP
LGRP-00786-V01.01-EN.pdf pdf (0.15 Mo)
