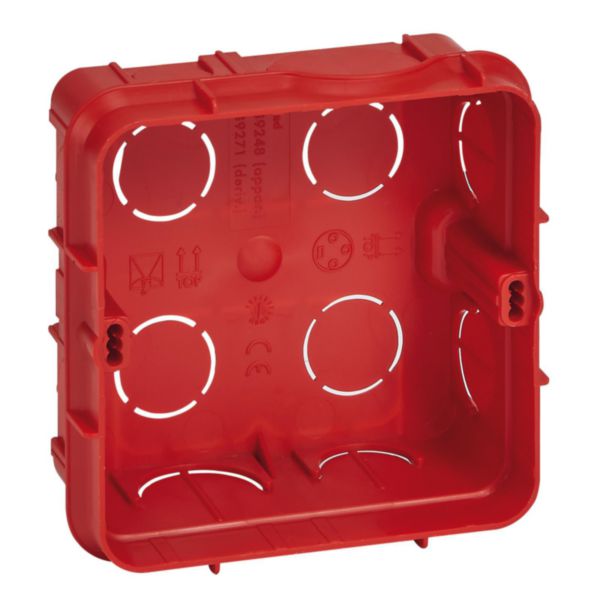

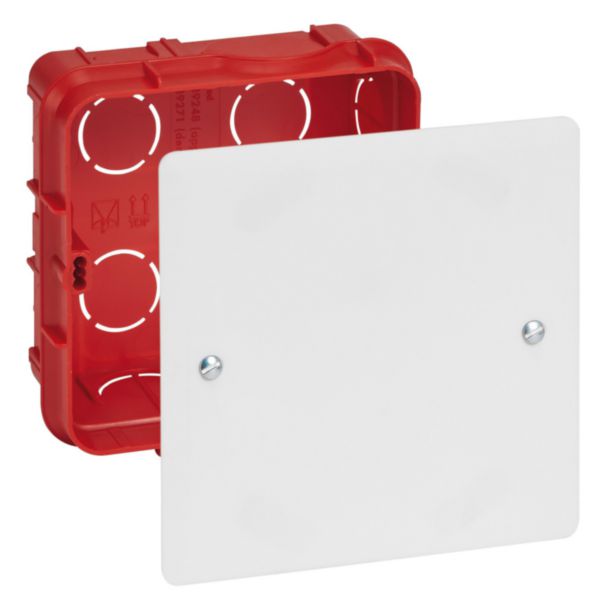

Batibox - Junction box - with cover and screws - 85x85x40 mm - for masonry
Batibox
LEGRAND
Batibox - Junction box - with cover and screws - 85x85x40 mm - for masonry
REF. 089271
EAN.
3245060892715
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Mounting method | Facing brickwork |
|---|---|
| Shape | Square |
| Construction type | Cable junction box |
| Model | Other |
| Equipped with | Other |
| Length | 100 mm |
| Width | 100 mm |
| Inner depth | 40 mm |
| With screws | No |
| For tube diameter | Other |
| Suitable for cable diameter | 16-25 mm |
| Pipe locking | No |
| Inlet from the rear | Yes |
| Number of inlets | 12 |
| Material | Plastic |
| Halogen free | Yes |
| Surface protection | Untreated |
|---|---|
| Colour | Red |
| Degree of protection (IP) | IP20 |
| Transparent cover | No |
| Cover attachment | Screwed |
| Sealable | No |
| Circuit integrity | None |
| With screening | No |
| Air tight | No |
| Number of poles of the clamp | 0 |
| Clamp position fixed | No |
| Luminaire hook mounting | No |
| Nozzle | None |
| Degree of impact strength (IK) | IK04 |
| Operating / setting temperature | -5-40 °C |
| Storage temperature | -5-60 °C |
Documentation
2 documents
Technical Sheet
Technical Sheet
1 document
Catalogue Commercial Page
