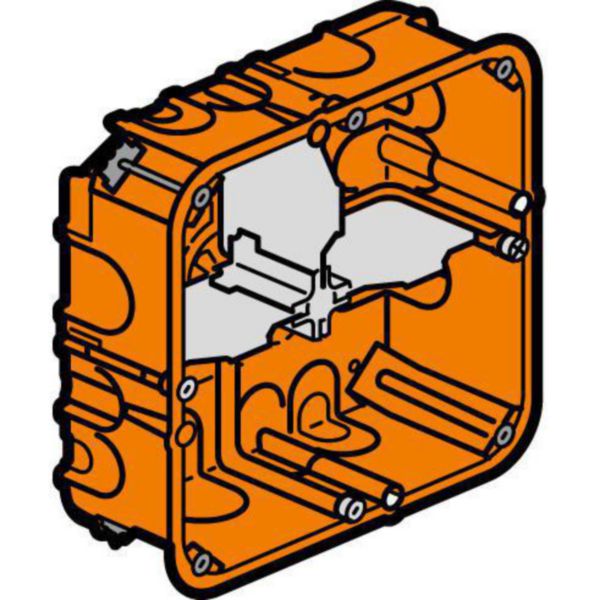

Name: Batibox - Flush mounting box - depth 50 mm - 142 x 142 mm - multi-material
SKU: 080124

Batibox - Flush mounting box - depth 50 mm - 142 x 142 mm - multi-material

Batibox LEGRAND

Batibox - Flush mounting box - depth 50 mm - 142 x 142 mm - multi-material

REF. 080124 EAN. 3245060801243

Compare You can only compare 4 products, you must remove 1 to add this one

Multi-gang boxes for multi-material - For Arteor, Mosaic - Depth 50 mm - 2 x 2 gang or 2 x 4/5 modules - Dimensions : 142 x 142 mm

Mounting method	Other
Shape	Square
Construction type	Device connection box (round/square)
Model	Other
Equipped with	None
Width	154 mm
For number of electric fittings	5
Mounting switching equipment	Screw or spread out
With screws	Yes
For tube diameter	20/25 mm
Suitable for cable diameter	20-25 mm
Pipe locking	No
Inlet from the rear	Yes
Number of inlets	16
Material	Plastic
Halogen free	No
Surface protection	Untreated

Colour	Orange
Degree of protection (IP)	IP20
Cover model	None
Cover attachment	Other
Sealable	No
Circuit integrity	None
With screening	No
Air tight	No
Max. conductor cross section	0 mm²
Number of poles of the clamp	0
Clamp position fixed	No
Luminaire hook mounting	No
Nozzle	None
Degree of impact strength (IK)	IK04
Operating / setting temperature	-5-40 °C
Storage temperature	-5-60 °C
