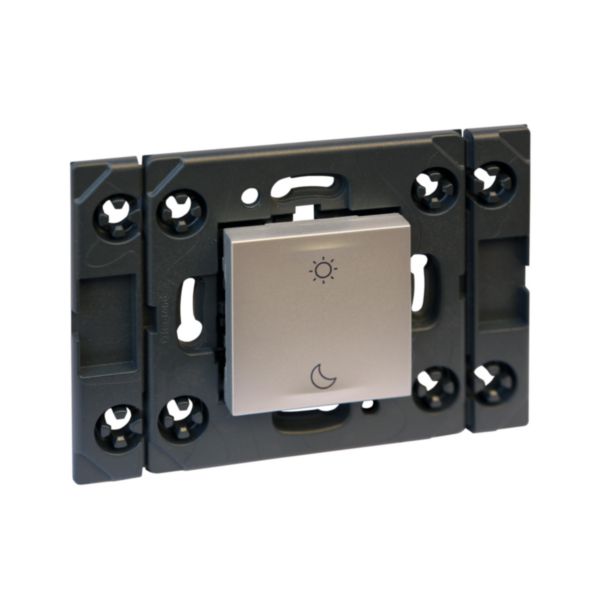

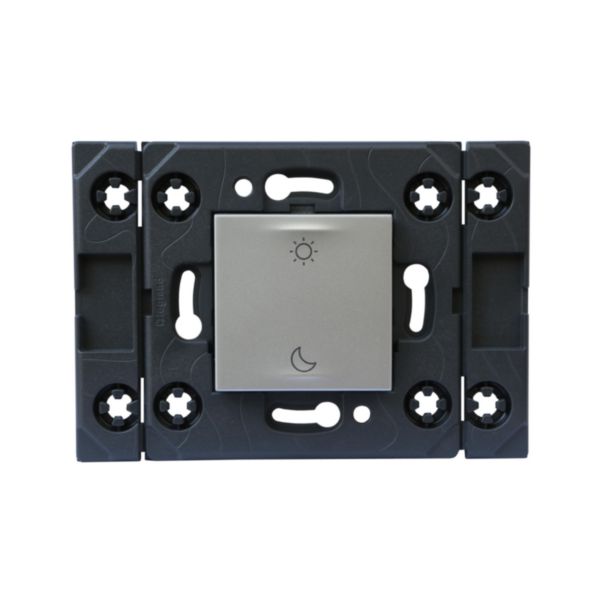

Arteor™ - Wireless batteryless control Wake-Up/Sleep - Soft Soft Alu

Arteor™ LEGRAND

Arteor™ - Wireless batteryless control Wake-Up/Sleep - Soft Soft Alu

REF. 574293 EAN. 3414972017824
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Radio frequency 2400 MHz
Rolling code system No
Code length (Bit) 128
Range 185 m
Number of commands 2
With manual radio transmitter Yes
Flush-mounted radio transmitter No
Surface mounted radio transmitter Yes
With radio coding device Yes
Degree of protection (IP) IP20
Keyboard protection cover No
Current supply Other
Width 116.6 mm
Height 82 mm
Depth 12 mm
Built-in depth 0 mm
Degree of impact strength (IK) IK02
Operating / setting temperature 5-45 °C
Storage temperature 0-45 °C
Standby consumption 0 mA
Mandatory neutral No
Stress test conformity (1000V) No
Colour Aluminium
Halogen free Yes
Antimicrobial treatment No
Mounting method Surface mounted
Contains Batteries and/or Accumulator No
IEC code (Pack1) Not applicable
Battery ou Accumulator (Pack1) Not applicable
Element Composition (Pack1) Not applicable
Connected object Yes
Operating method Zigbee
Application store for download App Store , Google Play Store
Programming way Smartphone apps
Programmable Yes
Interoperable connection Protocol Yes
With voice command Yes
Compatible voice assistants Google Assistant , Amazon Alexa , Apple Siri
Application name Home + Control
Product use function Lighting management
Connectable by Internet box Yes

Documentation

3 documents
Technical Sheet
S000113317FR-01.pdf pdf (1.17 Mo)
Instruction Use
LE14353AA.pdf pdf (3.4 Mo)
Technical Sheet
S000113317EN-01.pdf pdf (1.16 Mo)
3 documents
Catalogue Commercial Page
ex223001_0627.pdf pdf (0.12 Mo)
Catalogue Commercial Page
ex223001_0611.pdf pdf (0.16 Mo)
Catalogue Commercial Page
ex223001_0656.pdf pdf (0.1 Mo)
2 documents
Agreement
Agreement
LGOBSRPMCW (0.42 Mo)
