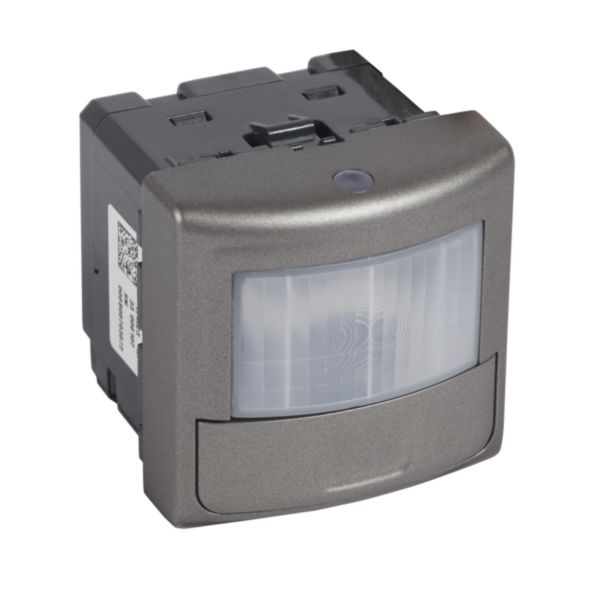

Arteor™ - KNX presence sensor - pir 180° - - Magnesium

Arteor LEGRAND

Arteor™ - KNX presence sensor - pir 180° - - Magnesium

REF. 574079 EAN. 3414970376879
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Model Movement sensor
Mounting method Flush-mounted
Constant light control Yes
HVAC-control No
Networkable Yes
Suitable for wireless transmission No
Creep-under protection Yes
Mounting height 1.2 m
Max. reach sideways 3 m
Max. reach frontally 8 m
Diameter reach on floor 6 m
Response value sensitivity adjustable Yes
Response value luminosity adjustable Yes
Teach-function for response value luminosity No
Dim function with dimmer basic element No
Animal zone No
Staircase light controller Yes
Combination movement sensor/push button switch Yes
With orientation lighting No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Suitable for degree of protection (IP) IP41
Operation mode switch No
Min. switch-on time 5 s
Max. duty cycle 18 min
Detection angle horizontal 0-180 °
Compatible with Apple HomeKit No
Colour Other
RAL-number (similar) 9003
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No

Documentation

4 documents
Technical Guide
LE05504AB_EN.pdf pdf (2.96 Mo)
Technical Guide
LE05504AC_FR.pdf pdf (6.12 Mo)
Technical Sheet
S000089366EN_4.pdf pdf (2.82 Mo)
Technical Sheet
S000089366FR_4.pdf pdf (2.88 Mo)
1 document
Catalogue Commercial Page
ex223001_0895.pdf pdf (0.06 Mo)
1 document
Agreement
1 document
Firmware
FW_LG-002638_2.zip zip (8.46 Mo)
