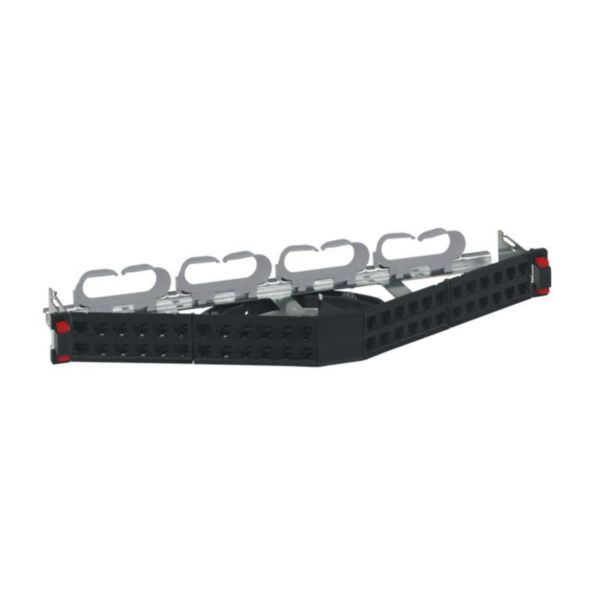

Angled Patch panel High density 19 inch - to be equipped with 48 RJ45

LCS³ LEGRAND

Angled Patch panel High density 19 inch - to be equipped with 48 RJ45

REF. 033794 EAN. 3414970870865

This high density 19 inch angled patch panel has a new generation quick-fix mechanism for automatic screwless mounting on the cabinets uprights.

You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Number of buses/couplings 48
Suitable for number of connectors 48
Type of connector RJ45 8(8)
Connection type Insulation displacement connector
Number of height units 1
Colour Black
RAL-number 9017
Mounting method 482.6 mm (19 inch) mounting
Height 43.8 mm
Width 482.6 mm
Depth 212.7 mm
Degree of impact strength (IK) IK03
Operating / setting temperature -25-70 °C
Storage temperature -40-70 °C
Terminal marking indication Yes
Prewired No
Cable nature for connection Flexible or rigid
Label space/information surface Yes
Cable support With zigzag
