Name: 6 connectors RJ45 Category 5e FTP
SKU: 033754

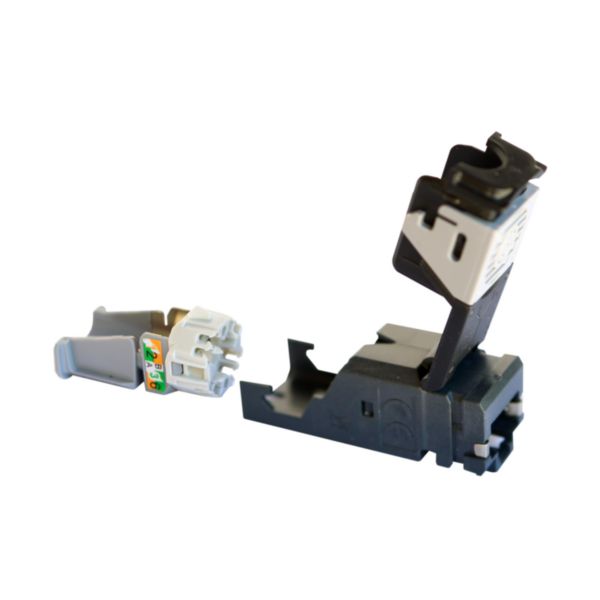

6 connectors RJ45 Category 5e FTP

LCS³ LEGRAND

6 connectors RJ45 Category 5e FTP

REF. 033754 EAN. 3414970870377

Compare You can only compare 4 products, you must remove 1 to add this one

User installation is rendered easy through an intuitive fast and secure management of each individual connector.

Daily user maintenance is rendered easy through the move-add-change management of each cassette and individual connector.

Connector tested and guaranteed to support POE signals (standard IEEE 802.3af and POE+, draft standards 802.3at) up to 2500 connections and disconnections with load.
Tests are carried out with 2 simultaneous POE+ circuits producing a minimum total power of 50W.

Model	Bus (jack)
Type of connector	RJ45 8(8)
Screened	No
Category	5E
Connection type	Insulation displacement connector
Special tool necessary	No
Suitable for round cable	Yes
Suitable for flat cable	No
Suitable for litz wire conductor	Yes
Suitable for solid conductors	Yes
Colour	Black
AWG-range	22-26
Width	17.5 mm

Height	20.5 mm
Depth	48.1 mm
Built-in depth	0 mm
Degree of protection (IP)	Not applicable
Operating / setting temperature	-40-70 °C
Terminal marking indication	Yes
RAL-number	0
Antimicrobial treatment	No
Label space/information surface	No
Mounting method	Other
Tube diameter for wall mounted product	0-0 mm
Entry membrane gland type	Not applicable

6 connectors RJ45 Category 5e FTP
