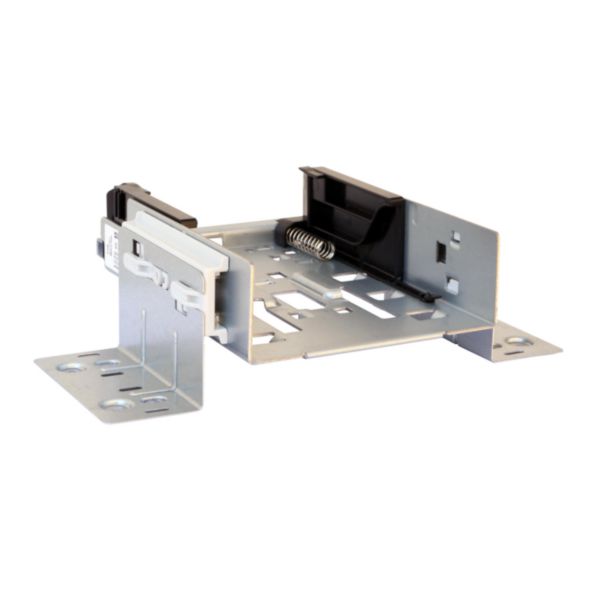

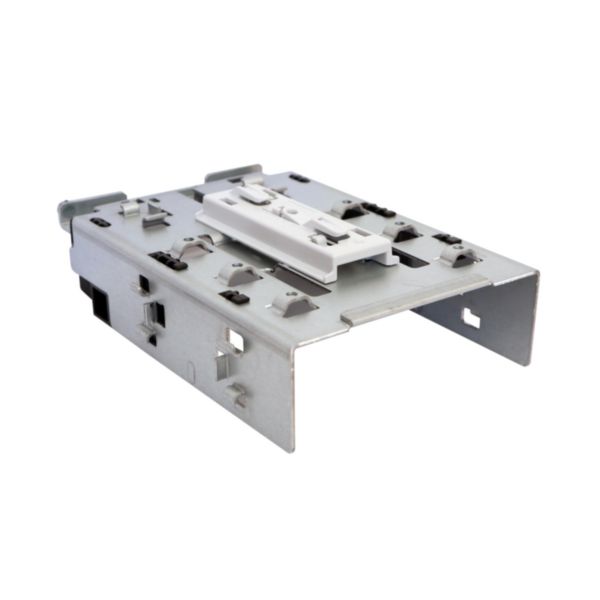

Zero-U kit for universal fixing for fibre optic and copper cassettes

LCS³ LEGRAND

Zero-U kit for universal fixing for fibre optic and copper cassettes

REF. 032103 EAN. 3414971939509

This Zero-U kit enables to bring few fibre optic or copper connections outside 19 inches panels. Supplied with a comprehensive range of accessories for fixing in or outside enclosures (raised access floors, cable trays, walls, ceiling...)

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

This Zero-U kit enables to bring few fibre optic or copper connections outside 19 inches panels. Supplied with a comprehensive range of accessories for fixing in or outside enclosures (raised access floors, cable trays, walls, ceiling...)

Product characteristics
  • Zero - U cassette holder to be equipped with an automatically removable cassette.
  • Compatible with all fibre optic HD cassettes, including slim, and copper cassettes of the LCS3 product range.
  • Supplied with wire mesh and sheet metal rail interfaces for a perfect tooless fitting on cable trays like Cablofil®. Supplied with fixing brackets compatible with gas fixing tool like Spit® for installation on raised access floors and walls. Direct screwing or fixing with cable ties also possible (screws and cable ties are supplied).
  • Equipped with earthing solution.
Recommendation / Restriction
  • Maximum capacity for the cassettes : 24 connectors LC, 12 connectors SC or 12 HD connectors RJ45

The product's benefits

Installation
  • Supplied with wire mesh and sheet metal rail interfaces for a perfect tooless fitting on cable trays like Cablofil®. Supplied with fixing brackets compatible with gas fixing tool like Spit® for installation on raised access floors and walls. Direct screwing or fixing with cable ties also possible (screws and cable ties are supplied). In association with automatically removable cassette, installation and maintenance is easy.
Usage
  • Good scalability for users (move, add and change) and efficiency (space optimization).
Avantages
  • Same support for fibre optic and copper solution. It accomodates the same products as 19 inches patchpanels.
  • Accomodates automatically removable cassettes.

Technical characteristics

Suitable for number of couplings/adaptors 24
Suitable for number of module inserts 1
With number of couplings/adaptors 0
With front plate No
With housing No
With pigtails No
Fibre type Other
Colour Silver
Mounting method Other
Height 66 mm
Width 218 mm
Depth 184 mm
degree of impact strength (IK) Not applicable
Degree of protection (IP) Not applicable
Operating / setting temperature -20-60 °C
Storage temperature -20-60 °C
Terminal marking indication No
Prewired No
Label space/information surface No
Fitted with door or cover No
Cable support Other
