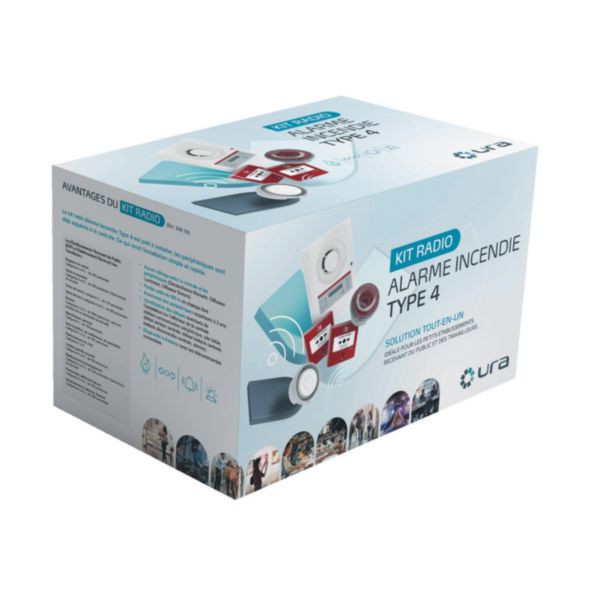

Wireless Type 4 equipment kit

Name: Wireless Type 4 equipment kit
SKU: 346114

URA

REF. 346114 EAN. 3613400170210

Compare You can only compare 4 products, you must remove 1 to add this one

Mounting method	Surface mounting
Suitable for bus connection	No
Radio connection	Yes
Interface external	Yes
Number of detection groups	2
Number of detector addresses	0
Number of outputs for acoustic signal generators	0
Number of outputs for optical signal generators	0
Emergency power supply integrated	Yes
With power adaptor	Yes
Integrated dial device	Yes
Operating voltage	230 V
Electricity consumption	0.007 mA
Addressable	Yes
Autonomy	24 h
Height	230 mm
Width	165 mm
Depth	48 mm
degree of impact strength (IK)	IK07
Degree of protection (IP)	IP21
Operating / setting temperature (Min-Max)	+5-+55 °C
Storage temperature (Min-Max)	0-55 °C
Voltage type	AC
Frequency (Min-Max)	50-60 Hz
Sound level	90 dB

Standby consumption	0.007 mA
Halogen free	Yes
With complemantary luminous signal	Yes
Supplied remote control	No
Vertical fixing center distance (Min-Max)	160-160 mm
Horizontal fixing center distance (Min-Max)	130-130 mm
Control mode	Wireless
Contains Batteries and/or Accumulator	Yes
Loudness setting	Yes
Screen resolution	Other
Screen brightness setting	Yes
Screen contrast setting	Yes
IEC code (Pack1)	6HR61
Battery ou Accumulator (Pack1)	Accumulator (rechargeable)
Element Composition (Pack1)	Nickel metal hydride
Number of Pack 1	1
Number of Single Element (Pack1)	1
Single Element weight (Pack1)	48 g
Pack1 Location	Included in packaging
Regulation Type (Pack1)	P : Portable (Standard format)
Connected object	Yes
Operating method	RF
Programming way	Not applicable
Product use function	Alarm systems

1 document

Select all

Technical Guide

LE14180AB.pdf pdf (13.37 Mo)

1 document

Select all

Product Sheet

CP_346114-1.pdf pdf (3.3 Mo)

1 document

Select all

Agreement

Decl. UE RED-44929A (0.46 Mo)
