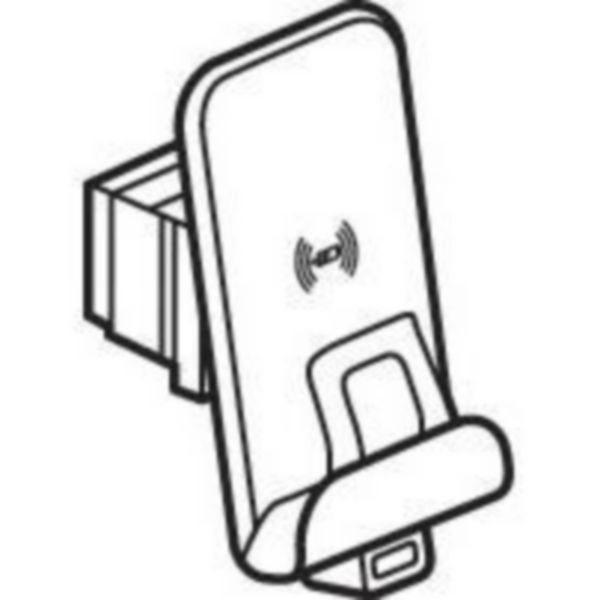

Wireless charger + Type A USB Mosaic - white with metallic finishing plate

Legrand

Wireless charger + Type A USB Mosaic - white with metallic finishing plate

REF. 077598 EAN. 3414970863225
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Model Other
Operating voltage (Min-Max) 220-250 V
Frequency (Min-Max) 50-60 Hz
Max. output current 2400 mA
Connection type Screwed terminal
Mounting method Module frame
Colour Anthracite
RAL-number 7015
Device width 70 mm
Device height 136 mm
Device depth 88 mm
Min. depth of built-in installation box 40 mm
Suitable for degree of protection (IP) IP40
degree of impact strength (IK) IK04
Antimicrobial treatment No
Wireless Yes
Built-in depth 33 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Power Delivery No
Mandatory neutral Yes
Terminal marking indication Yes
Stress test conformity (1000V) No
Halogen free Yes
Cable section (Min-Max) 2.5-2.5 mm²

Documentation

3 documents
Technical Sheet
F02387FR-00.pdf pdf (0.14 Mo)
Instruction Use
LE09620AC.pdf pdf (0.57 Mo)
Technical Sheet
F02387EN-00.pdf pdf (0.14 Mo)
