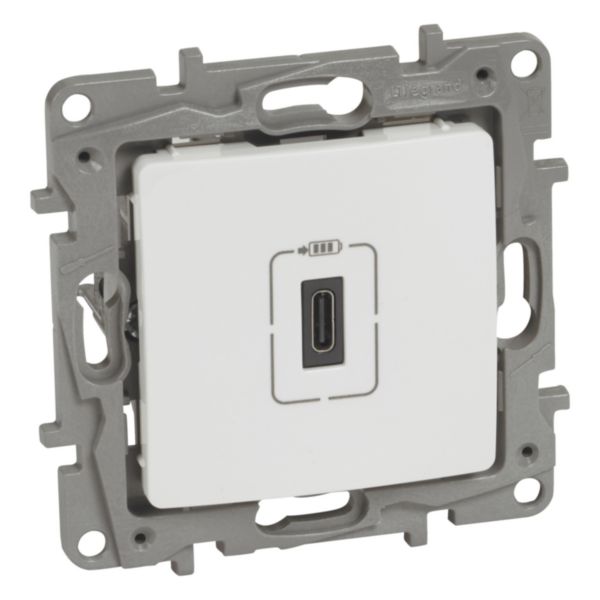

USB charger type C 1.5A 7.5W white

LEGRAND

USB charger type C 1.5A 7.5W white

REF. 764593 EAN. 3414971479340
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Number of modules (module system) 2
Model Other
Number of ports USB-A 0
Number of ports USB-C 1
Operating voltage (Min-Max) 100-240 V
Frequency (Min-Max) 50-60 Hz
Max. output current 1500 mA
Output voltage (Min-Max) 5-5 V
Power consumption 0.055 W
Connection type Screwed terminal
Mounting method Flush-mounted
Colour White
RAL-number 9003
Device width 75.8 mm
Device height 75.8 mm
Device depth 41.2 mm
Min. depth of built-in installation box 40 mm
Suitable for degree of protection (IP) IP40
degree of impact strength (IK) IK04
Antimicrobial treatment No
Wireless No
Built-in depth 30.9 mm
Operating / setting temperature (Min-Max) 5-40 °C
Storage temperature (Min-Max) -20-70 °C
Voltage type AC
Power Delivery No
USB Output Power 7.5
Supply current (Min-Max) 0.25-0.25 A
Mandatory neutral Yes
Terminal marking indication Yes
Stress test conformity (1000V) No
Halogen free Yes
Number of terminals 2
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1.5-2.5 mm²
