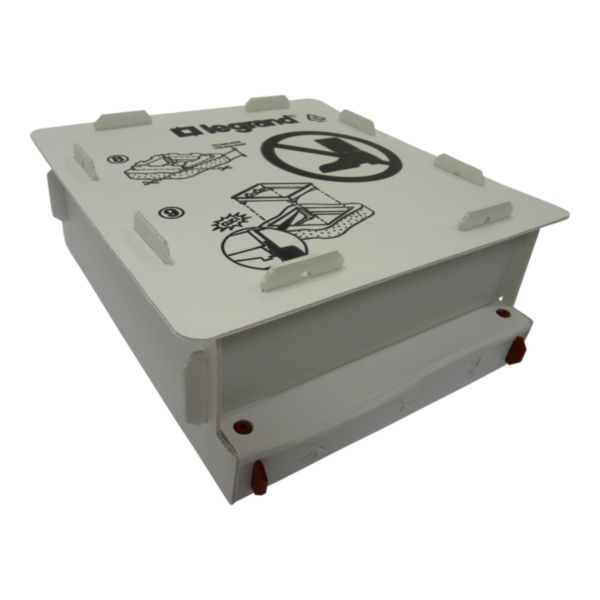

Name: To assemble back box for screed floor to install a standard floor box capacity 16M vertical or 24M horizontal
SKU: 088192

To assemble back box for screed floor to install a standard floor box capacity 16M vertical or 24M horizontal

LEGRAND

To assemble back box for screed floor to install a standard floor box capacity 16M vertical or 24M horizontal

REF. 088192 EAN. 3414971618008

Compare You can only compare 4 products, you must remove 1 to add this one

Auto - adjusting for a concrete thickness from 70mm to 110mm : time saving because no need to adjust the height of the backbox.
Two pre - cut faces to easily accept pipes (diameter max 30mm)
The back box is easily folded and assembled before installation
Material : body in foldable soft plastic Polypropylene and rigid plastic corners

"Renovation" installation mode, ideal for the replacement of an old floor box for example : the back box can be installed from above by means of 2 sleepers (not provided) resting on the existing screed : reliable leveling, independent of the depth of the hole realized.

Upgradability : if need to rise the modules capacity of the standard floor box installed in this back box : without retouching the floor, a Vertical support kit initialy installed can be replaced by a Horizontal support kit (and vice versa)

Allows a fast installation without tool of the standard floor box by an exclusive clipping and locking system in the notches of its four plastic corners

Nominal dimension	340 mm
Min. height finishing layer	70 mm
Depth	272 mm
Suitable for subfloor duct countersunk (closed)	Yes
Suitable for subfloor duct overhead closed	No
Levelling range (Min-Max)	70-110 mm
Duct width (Min-Max)	20-30 mm
Built-in opening for floor column	No
Built-in opening for built-in unit	Rectangular

Number of appliances to build in	0
Material side wall	Plastic
Suitable for placing of sealing	No
Duct height (Min-Max)	20-30 mm
Bottom plate	No
Decoupling possibility cover from base unit	Yes
Height	132 mm
Width	340 mm
