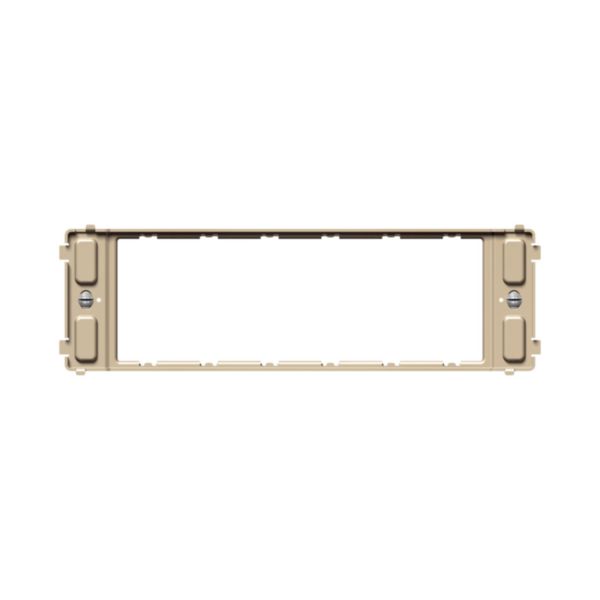

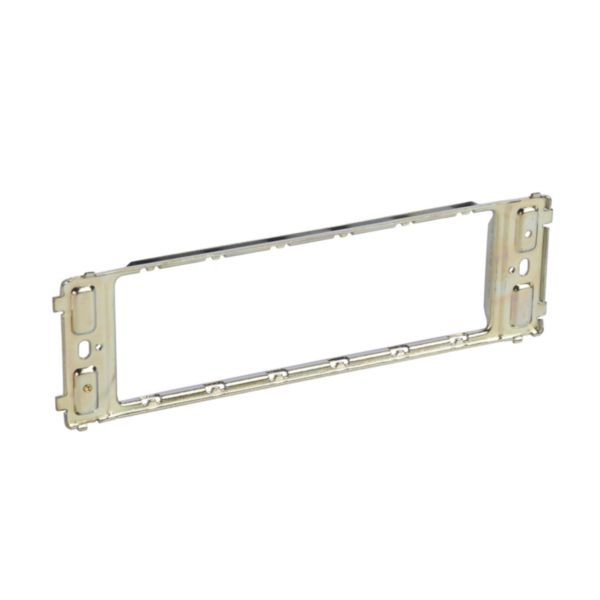

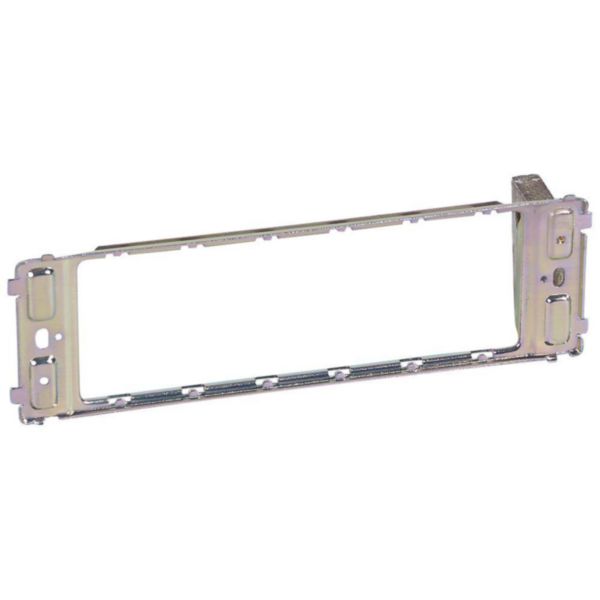

Synergy™ - Yoke - for 6 Grid modules - 3 gang - for White, st. steel, satin brass

Name: Synergy™ - Yoke - for 6 Grid modules - 3 gang - for White, st. steel, satin brass
SKU: 735493

Synergy™ LEGRAND

REF. 735493 EAN. 3245067354933

Compare You can only compare 4 products, you must remove 1 to add this one

Grid yokes - For White, Synergy Authentic -, Sleek Design and Metalclad - 267 x 206 - To be tripled for use with 3 x 3 gang and 4 x 3 front plates

Model	Other
Type of fastening	Mounting with claw and screw
With nail	No
Mounting method of the module inserts	Other
Number of modules horizontal (module system)	6
Number of modules vertical (module system)	1
With built-in installation box	Yes
With screws	Yes
Suitable for mounting in round junction box 60 mm	No

Flush-mounted installation	Yes
Suitable for subfloor installation duct box	No
Suitable for wall duct	No
Suitable for mounting on DIN-rail 35 mm	No
Material	Metal
Material quality	Other
Surface protection	Galvanic/electrolytic zinc plated
Vertical fixing center distance (Min-Max)	65-82 mm
Horizontal fixing center distance (Min-Max)	65-82 mm
