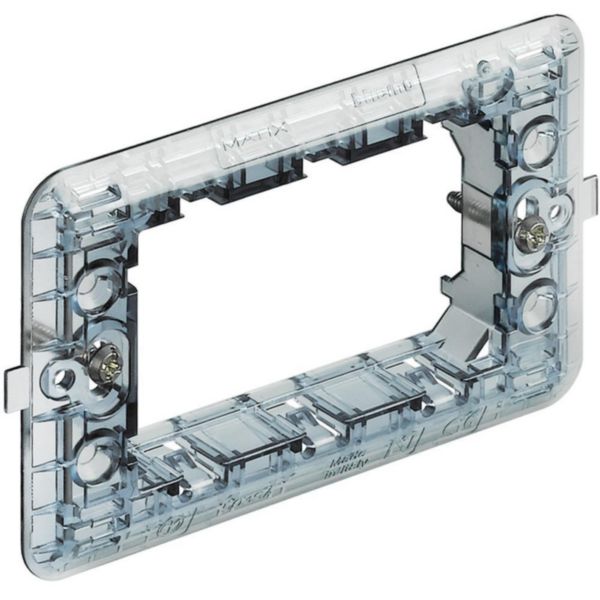

Name: Support frame - 3 Module Capacity - Frontal Mounting - Horizontal and Vertical Orientation
SKU: 503SA

Support frame - 3 Module Capacity - Frontal Mounting - Horizontal and Vertical Orientation

Bticino

Support frame - 3 Module Capacity - Frontal Mounting - Horizontal and Vertical Orientation

REF. 503SA EAN. 8012199496511

Compare You can only compare 4 products, you must remove 1 to add this one

Model	Other
Type of fastening	Mounting with screw
With nail	No
Depth	17 mm
Height	70 mm
Number of modules horizontal (module system)	3
Number of modules vertical (module system)	3
With built-in installation box	No
With screws	Yes
Width	116 mm

Flush-mounted installation	No
Suitable for subfloor installation duct box	No
Suitable for wall duct	No
Mounting direction	Horizontal and vertical
Material	Plastic
Material quality	Thermoplastic
Surface protection	Untreated
Suitable for mounting on DIN-rail 35 mm	No
Mounting method of the module inserts	Front side
Suitable for mounting in round junction box 60 mm	No
