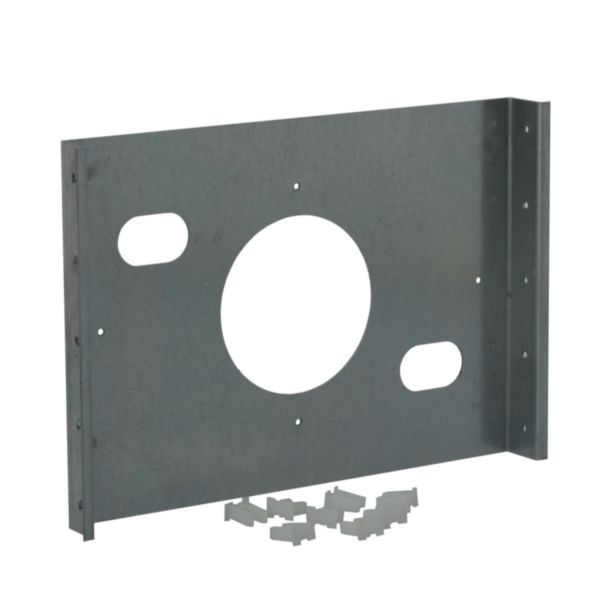

Support for installation in plasterboard walls of the HOMETOUCH touch screen item 3488 and item 3488W.

Name: Support for installation in plasterboard walls of the HOMETOUCH touch screen item 3488 and item 3488W.
SKU: BT-3487AP

My Home Up BTICINO

REF. BT-3487AP EAN. 8005543630617

Compare You can only compare 4 products, you must remove 1 to add this one

Mounting method	Hollow wall
Shape	Rectangular
Construction type	Device connection box (round/square)
Model	Single
Provided with revolving ring	No
Couplable	No
Equipped with	Mounting plate
Length	136 mm
Width	185 mm
Depth (Min-Max)	50-50 mm
Inner depth	50 mm
For number of electric fittings	1
Mounting switching equipment	Screw or spread out
With screws	Yes
Housing feed-through by break-out opening	No
Housing feed-through by seal membrane	No
Housing feed-through by nozzle	No
Housing feed-through by step membrane	No
For tube diameter	Other
Pipe locking	No
Pipe locking optional	No

Inlet from the rear	No
Number of inlets	1
Material	Aluminium
Halogen free	Yes
Surface protection	Other
Colour	Grey
Cover model	None
Transparent cover	No
Cover attachment	Other
Sealable	No
Circuit integrity	None
With screening	No
Air tight	Yes
Number of poles of the clamp	2
Clamp position fixed	Yes
Luminaire hook mounting	No
Nozzle	None
Special application	None
degree of impact strength (IK)	IK10
Vertical fixing center distance (Min-Max)	1600-1650 mm
Cable support	Screw cable clamp
