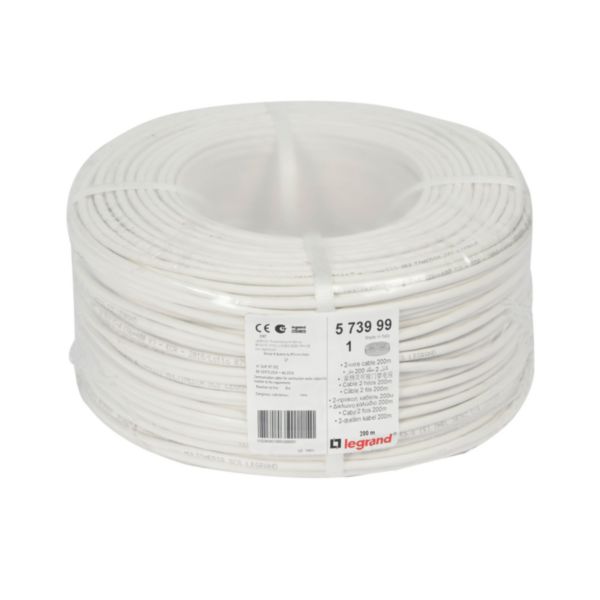

Specific cable for video door entry system with 2 twisted conductos

Name: Specific cable for video door entry system with 2 twisted conductos
SKU: 573999

Legrand

REF. 573999 EAN. 3245065739992

Compare You can only compare 4 products, you must remove 1 to add this one

Conductor material	Copper
Nominal cross section conductor	0.5 mm²
Diameter conductor	1.7 mm
Conductor category	Class 2 = stranded
Number of cores	16
Material core insulation	Other
Core identification	Colour
With protective conductor	No
Max. permitted conductor temperature	70 °C
Screen	No
Drain wire	No

Protective barrier	None
Armouring/reinforcement	None
Material outer sheath	Polyvinyl chloride (PVC)
Colour outer sheath	White
Low smoke according to EN IEC 61034-2	No
Outer diameter approximate	4.8 mm
Permitted cable outer temperature during assembling/handling (Min-Max)	-15-70 °C
Permitted cable outer temperature after assembling without vibration (Min-Max)	-15-70 °C
Nominal voltage U0	450 V
Nominal voltage U	750 V
