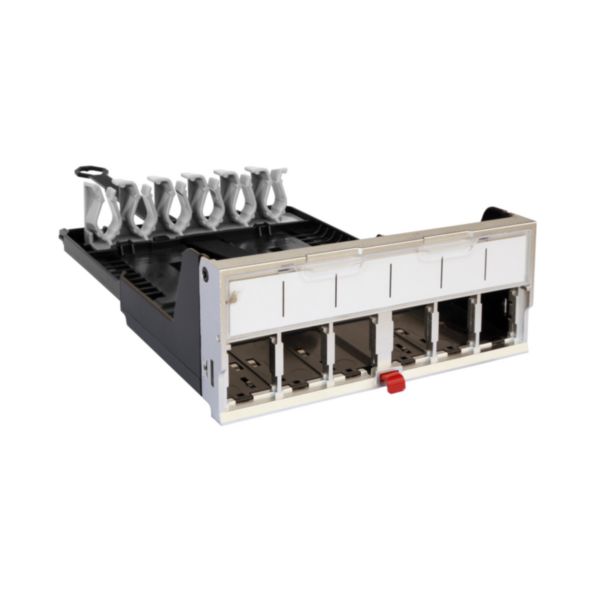

Six port cassette to be equipped with HD Jack connectors (Cat 5e UTP, Cat 6 UTP/STP, Cat 6A UTP/STP).

LCS³ LEGRAND

Six port cassette to be equipped with HD Jack connectors (Cat 5e UTP, Cat 6 UTP/STP, Cat 6A UTP/STP).

REF. 033680 EAN. 3414972226400

Cassette with universal mounting in all racks or cabinets with automatic earthing on unpainted uprights. Painted uprights can be connected to earth with a cord and a screw connection.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Cassette with universal mounting in all racks or cabinets with automatic earthing on unpainted uprights. Painted uprights can be connected to earth with a cord and a screw connection.

Product characteristics
  • 6 ports
  • Equipped with rear cable guide to hold cables during maintenance.
  • Supplied with identification labels for each cassette.
  • Dimensions (WxHxD mm) : 110.6 x 43.6 x 158.2
Recommendation / Restriction
  • Conforming to standards ISO/IEC 11801 edition 3.0 (2017) and to standards ANSI/TIA 568

The product's benefits

Installation
  • Connectors are connected at the front without a special tool. No need for cable ties, the cable is held in its cable guide in the cassette and by a concentric strand guide on the panel.
Usage
  • Cassettes removed automatically by simply pressing the button on the front. Each connector can be removed individually.

Technical characteristics

Type of accessory/spare part Other
Accessory No
Spare part No
Width 110.6 mm
Height 43.6 mm
Depth 158 mm
Operating / setting temperature (Min-Max) -10-60 °C
Storage temperature (Min-Max) -40-70 °C
Colour Grey
Halogen free Yes
Mounting method Other

Documentation

3 documents
Technical Sheet
S000117366FR-01.pdf pdf (4.99 Mo)
Technical Sheet
S000117366EN-01.pdf pdf (4.99 Mo)
Instruction Use
LE13052AB.pdf pdf (5.62 Mo)
1 document
Catalogue Commercial Page
ex223001_0994.pdf pdf (0.12 Mo)
