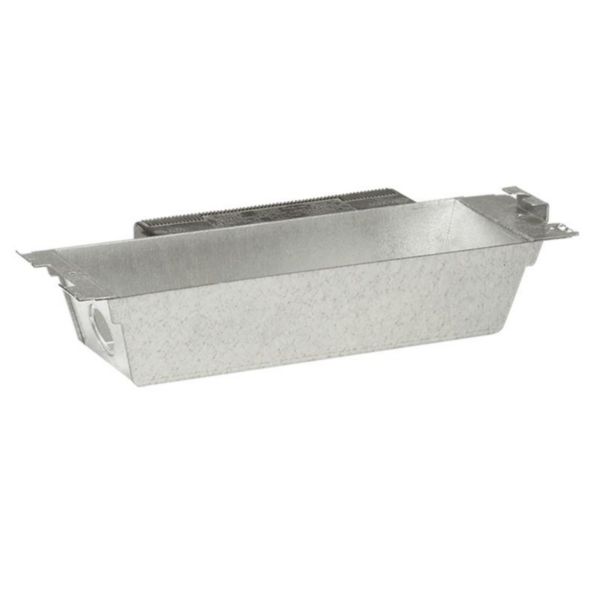

Single modules for 77 mm plates - for modular backbox for raised floors

Name: Single modules for 77 mm plates - for modular backbox for raised floors
SKU: 689660

LEGRAND

REF. 689660 EAN. 3245066896601

Compare You can only compare 4 products, you must remove 1 to add this one

Floor boxes for carpet - Conform to IEC/EN 60670 - 23 - Compatible with either raised access floor trunking system and screed floor system
Modular backbox for raised floors - Adjustable height between 86 to 107 mm - To be fitted with lid and trims for carpet and support plates for Arteor or Mosaic Programme wiring Accessories - Backboxes are connected to the raised floor trunking system with flexible conduits - One complete assembly consists of : support frame + modules + lid and trim Module - Single module for 77 mm plates

Number of appliances to build in	1
Number of conduit inlets	1
Length	255 mm
Width	77 mm

Depth	50 mm
Model	Support shape
Mounting method installation unit	Snap
Material	Metal

1 document

Select all

Technical Sheet

F01021EN-01.pdf pdf (1.66 Mo)

2 documents

Select all

Catalogue Commercial Page

ex223001_1155.pdf pdf (0.12 Mo)

Catalogue Technical Page

ex223001_1156-1157.pdf pdf (0.82 Mo)

3 documents

Select all

Agreement

NF App Domestic-636598A (0.24 Mo)

Agreement

OC / CB-FR 636598C (0.39 Mo)

Agreement

NF Conduits-636641A (0.85 Mo)
