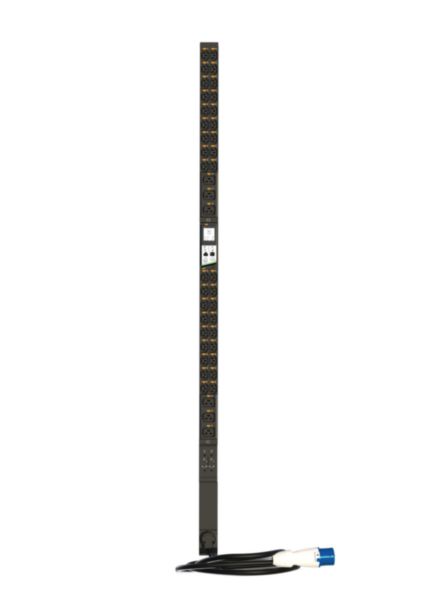

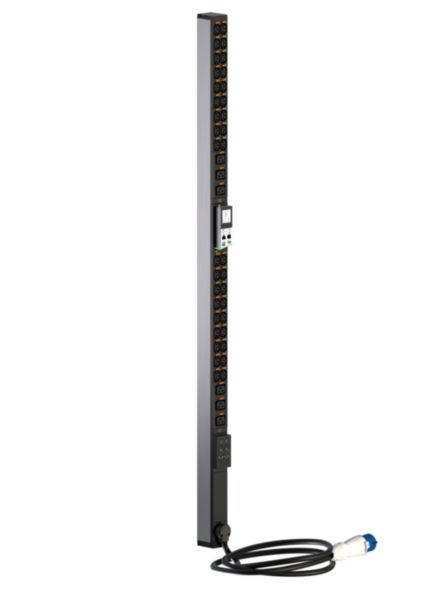

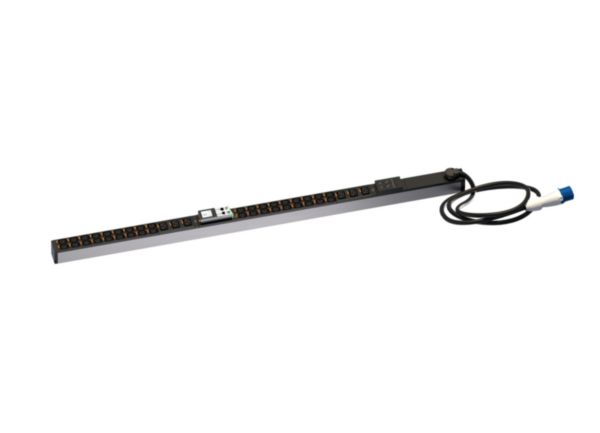

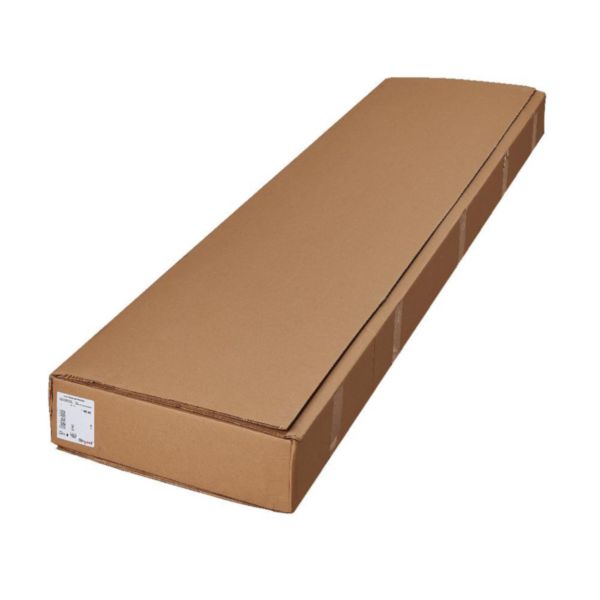

Name: Set of 4 intelligent PDU, metered (Node version), Zero-U, 1 phase 32A, 36 HD C13 + 6 C19 outlets, with cord locking
SKU: 646159

Set of 4 intelligent PDU, metered (Node version), Zero-U, 1 phase 32A, 36 HD C13 + 6 C19 outlets, with cord locking

LINKEO DATA CENTER Legrand

Set of 4 intelligent PDU, metered (Node version), Zero-U, 1 phase 32A, 36 HD C13 + 6 C19 outlets, with cord locking

REF. 646159 EAN. 3414972574112

Compare You can only compare 4 products, you must remove 1 to add this one

Mounting dimension (standardised)	Metric
Mounting size	1452 mm
Mounting direction	Vertical
Electrical connection	Connection cable with plug
Type of electric connection	CEE 32 A
Number of phases	1
Cable length	3 m
Number of miniature circuit breakers (MCB)	2
Number of socket outlets with protective contact CEE 7/3 (type F)	0
Number of socket outlets with protective contact CEE 7/5 (type E)	0
Number of C13 socket outlets	36
Number of C19 socket outlets	6
Number of C20 socket outlets	0
Number of socket outlets British Standard BS 1363	0
Number of socket outlets Swiss standard type 13	0
Number of socket outlets Swiss standard type 15	0
Number of socket outlets Swiss standard type 23	0
Number of socket outlets Swiss standard type 25	0
Number of RJ45 connections	2
Number of USB connections	2
Number of other socket outlets	0
Length	1440 mm
Width	52 mm
Depth	91.4 mm
Nominal current	32 A
Supply voltage	230 V
With surge protection module	No
Overvoltage category	2
Mains filter	No
Switchable	No
With meter	Yes
Control function	No
SNMP	Yes

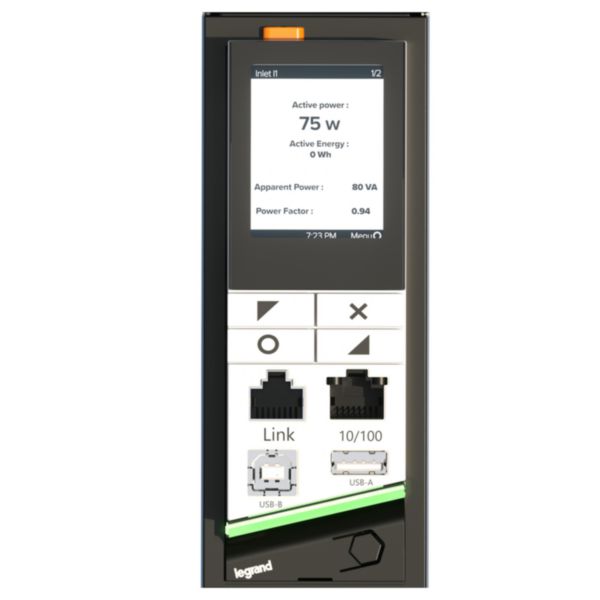

With display	Yes

Evaluation	Other
With LED indication	Yes
With fuse	No
Ampere meter	Yes
Temperature measurement	Yes
With mounting material	Yes
Colour	Black
degree of impact strength (IK)	Not applicable
Degree of protection (IP)	IP40
Operating / setting temperature (Min-Max)	-5-60 °C
Storage temperature (Min-Max)	-20-70 °C
Voltage type	AC
Supply current (Min-Max)	32-32 A
Frequency (Min-Max)	50-60 Hz
Terminal marking indication	No
RAL-number	9017
Connection type	Screwed terminal
Terminals capacity (Min-Max)	6-6 mm²
Cable nature for connection	Flexible
Cable section (Min-Max)	6-6 mm²
Maximum Input cable diameter	19 mm
Number of MCBs	2
Number of RCCBs	0
Number of CX socket outlets	0
Connected object	Yes
Operating method	Network , Zigbee
Application store for download	Not applicable
With voice command	No
Programmable	No
Interoperable connection Protocol	Yes
Connectable by Internet box	Yes
Programming way	Web software
Product use function	Energy distribution
