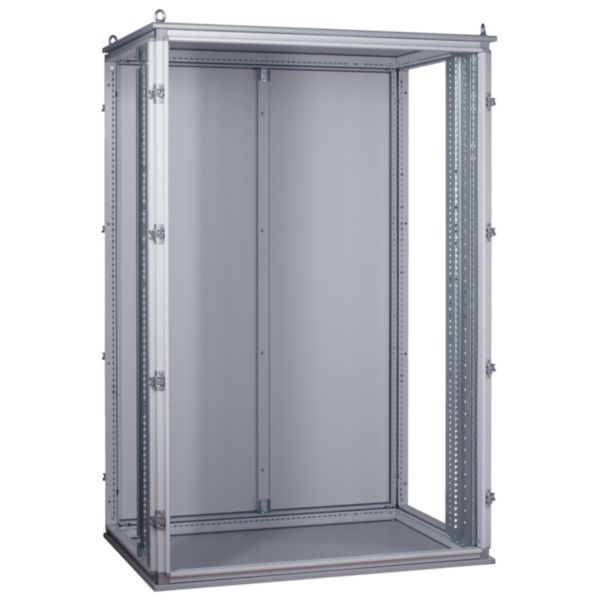

Roof base for XL³ 6300 enclosure - D. 725 x W. 1300 mm

LEGRAND

Roof base for XL³ 6300 enclosure - D. 725 x W. 1300 mm

REF. 021134 EAN. 3245060211349
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product charateristics
  • Distribution enclosures XL³ 6300 - IP 30 - IK 07 - Consist of the combination of a "roof - base" assembly, structural uprights, rear and side panels RAL 7035, plinths RAL 7004 - Height 2200 mm, usable faceplate height 2000 mm
  • Enclosures modular metal Roof - base for enclosure - Fitted with cable entry plates - Take the structural up Rights - Depth : 725 mm - Width external : 1425 mm - Width usable : 1300 mm

Technical characteristics

Suitable for roof planking Yes
Suitable for bottom planking Yes
Width 1425 mm
Height 150 mm
Depth 725 mm
Suitable for enclosure building width 1425 mm
Suitable for enclosure building depth 725 mm
Material Steel
Surface finishing Powder coating
Colour Grey
RAL-number 7029
With de-aeration No
Suitable for outdoor set-up No
With cable entry Yes

Documentation

4 documents
Instruction Use
LE05183AB.pdf pdf (8.66 Mo)
Technical Guide
Technical Guide
Workshop Book
1 document
Catalogue Commercial Page
ex223001_0396.pdf pdf (0.23 Mo)
1 document
Agreement
LOVAG-IT 13.050 (0.17 Mo)
