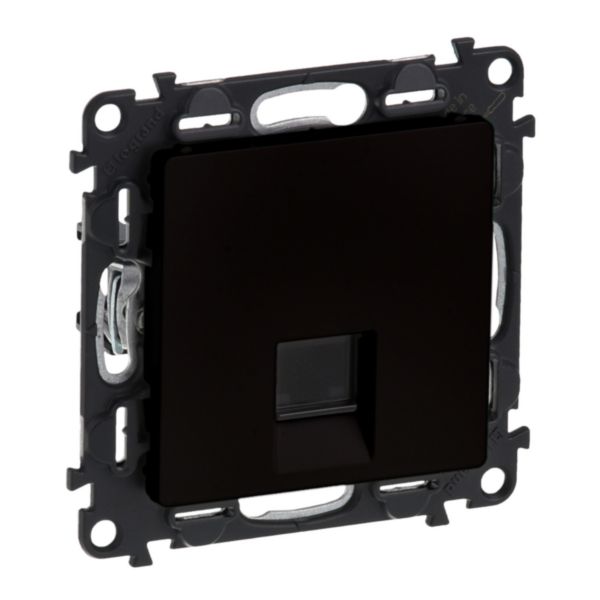

RJ45 socket category 6A STP with claws mat black Valena Life

Name: RJ45 socket category 6A STP with claws mat black Valena Life
SKU: 756348

Valena Life Legrand

REF. 756348 EAN. 3414972241076

Compare You can only compare 4 products, you must remove 1 to add this one

Category 6A STP : Data rate up to 10 GigaBit/s. This allows you to download a 1 GigaBytes file in 1 second. Shielded socket. Body and spreader made of metal alloy with copper/nickel coating.
Claw fixing
2 modules
Mat black
Equipped with a protective dust cover.

Conform to standards ISO 11801 Edition 2, CENELEC EN 50173-1 2007, ANSI/TIA 568 C.2, ISO/IEC series 60603-7. Indoor use only. Clean the surface with a cloth. Do not use acetone, tar-removing cleaning agents or trichloroethylene.

Equipped with connectors with quick toolless connection : this system allows the wire pairs to be spread easily before mounting them on the connector.

Suitable for commercial and residential installation. IP and analog phones. Very suitable for downloads, streaming or online games requiring low latency.

Toolless connector with fast connection thanks to integrated crimping.
Compatible with cords equipped with RJ11, RJ12 or RJ45 plugs.
Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation. Can be installed in a normal (single) flush mounting box, no need to additional wall groove cutting or cabling.

Surface mounting	No
Flush-mounted installation	Yes
Duct installation	No
Floor box/subfloor mounted	No
Type of fastening	Screwing
Assembly arrangement	Basic element with central cover plate
Type of connector	RJ45 8(8)
Category	6A (IEC)
Colour	Black
Connection type	Insulation displacement connector
Shielded buses	Yes
Shielded housing	Yes
Degree of protection (IP)	IP20

Mechanical coding	No
Colour coding	Yes
Device width	75 mm
Device height	75 mm
Device depth	37 mm
Built-in depth	27 mm
degree of impact strength (IK)	IK03
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Halogen free	Yes
Antimicrobial treatment	No
Mounting method	Flush-mounted

3 documents

Select all

Technical Sheet

F03390EN-01.pdf pdf (1.17 Mo)

Instruction Use

LE07456AC.pdf pdf (5.97 Mo)

Technical Sheet

F03390FR-01.pdf pdf (1.17 Mo)
