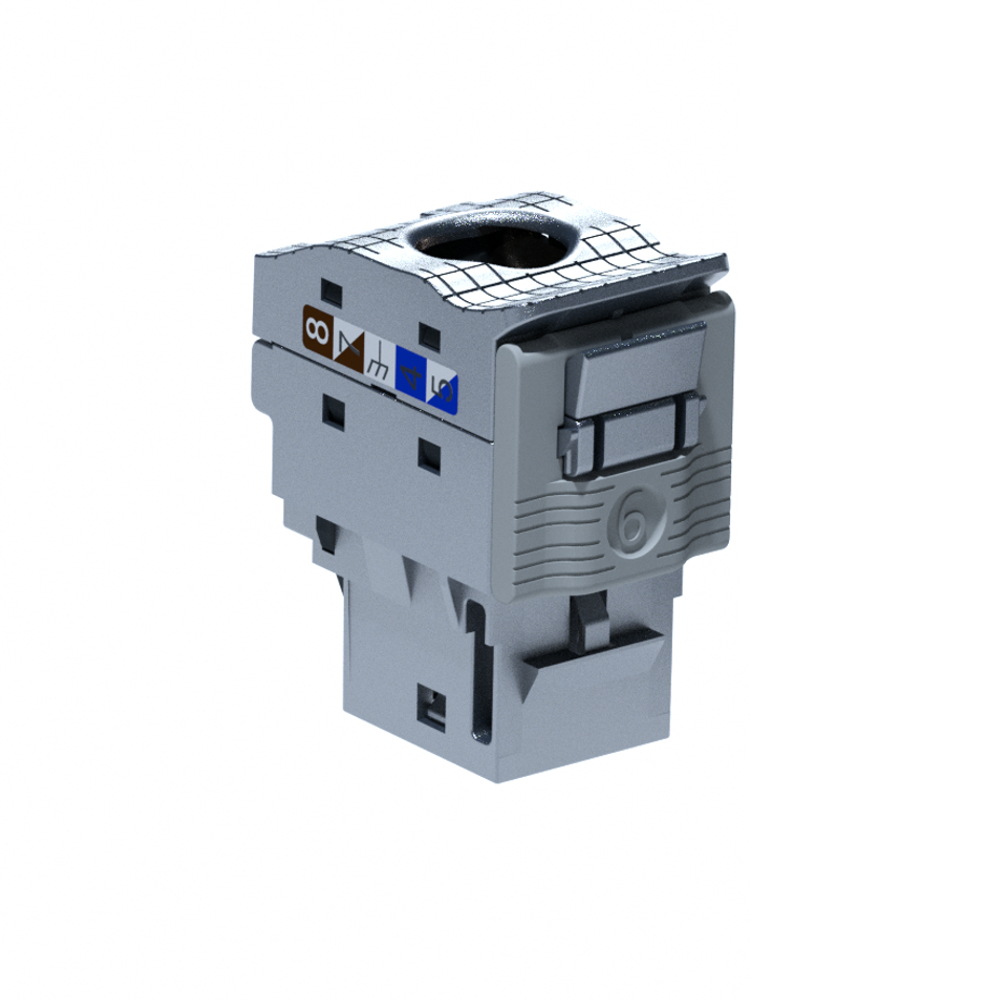

RJ45 category 6 STP keystone

Linkeo C+ Legrand

RJ45 category 6 STP keystone

REF. 632932 EAN. 3414973078619
The new Linkeo C+ system brings to market a toolless keystone connector enabling fast connection in all categories from 5e to 6A. Simple and quick to terminate, its one-touch locking guarantees superior reliability for data transmission.
25-year warranty
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The new Linkeo C+ system brings to market a toolless keystone connector enabling fast connection in all categories from 5e to 6A. Simple and quick to terminate, its one-touch locking guarantees superior reliability for data transmission.

Product characteristics
  • Category 6 STP : Data rate up to 1 GigaBit/s. This allows you to download a 1 Gigabyte file in 8 seconds. Shielded connector.
  • Ergonomic design enables quick toolless connection. A greater comfort for reduced effort.
  • Light grey locking tab
  • Set of 24 connectors delivered in 100% recycled cardboard packaging, without plastic film and ready to use
Recommendation / Restriction
  • Conforms to standards ISO/IEC 11801 series ANSI/TIA 568 series EN 50173 series

The product's benefits

Installation
  • Linkeo C+ keystone connector is designed to make every step of the installation and maintenance process quick and easy. Each connector can be terminated under 1 minute 10 seconds. And disconnected and re-terminated, without tools or any damage, in a matter of seconds. Connectors stay ready to use, again and again.
Usage
  • The design of the connector eliminates any risk of accidental opening. Its mechanical locking clip secures the termination and transmission of data
Avantages
  • The jack and the lever can be separated to ease the process of re-termination.
  • 25-year warranty

Technical characteristics

Model Bus (jack)
Type of connector RJ45 8(8)
Screened Yes
Category 6
Connection type Insulation displacement connector
Special tool necessary No
Suitable for round cable Yes
Suitable for flat cable No
Suitable for litz wire conductor Yes
Suitable for solid conductors Yes
Colour Silver
Transparent No
Compatible with Grade2TV according to XP-C 90-483 No
Compatible with Grade3TV according to XP-C 90-483 No
Width 18 mm
Height 31 mm
Depth 34 mm
degree of impact strength (IK) IK04
Degree of protection (IP) IP20
Operating / setting temperature (Min-Max) -10-60 °C
Storage temperature (Min-Max) -10-70 °C
Terminal marking indication Yes
Antimicrobial treatment No
Label space/information surface No
Mounting method Other
Maximum Input cable diameter 9 mm
Entry membrane gland type Not applicable

Documentation

5 documents
Instruction Use
LE13273CA.pdf pdf (5.3 Mo)
Technical Sheet
S000117683EN-04.pdf pdf (4.11 Mo)
Technical Sheet
S000117683FR-04.pdf pdf (4.1 Mo)
Technical Sheet
F04892EN-00.pdf pdf (12.18 Mo)
Technical Sheet
F04892FR-00.pdf pdf (12.18 Mo)
