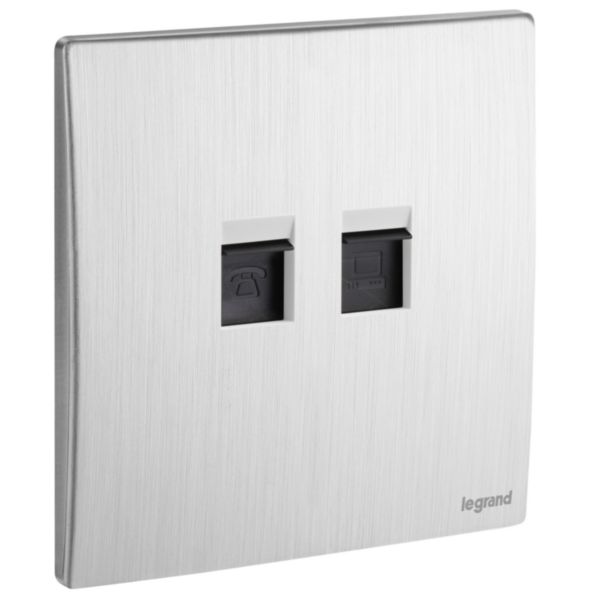

RJ11 and RJ45 category 6 UTP socket outlets brushed aluminium

Mallia Senses LEGRAND

RJ11 and RJ45 category 6 UTP socket outlets brushed aluminium

REF. 281166BA EAN. 3414972090230
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Category 5e UTP : for up to 1 Gigabit per second data rate, unshielded socket.
  • MALLIA SENSES is sold as a complete set under one cat number
  • Equipped with transparent protective dust covers protecting the connectors.
  • Brushed aluminium finish
Recommendation / Restriction
  • Recommended inside use only

The product's benefits

Installation
  • Quick and Easy plate clipping system
Usage
  • Suitable for residential installation.
Avantages
  • Toolless connector with fast connection thanks to integrated crimping.
  • Technicity and Robustness of the support frame
  • Thin and modern design for a perfect decoration integration

Technical characteristics

Model Plug
Type of connector RJ45 8(4)
Category 6
Connection type 110
Special tool necessary No
Suitable for round cable No
Suitable for flat cable Yes
Colour Other
Transparent No
Min. AWG-size Other
Max. AWG-size 22
Width 86 mm
Height 86 mm
Depth 36.3 mm
Built-in depth 28.7 mm
degree of impact strength (IK) IK04
Degree of protection (IP) IP20
Operating / setting temperature (Min-Max) -5-50 °C
Storage temperature (Min-Max) -10-70 °C
Antimicrobial treatment No
Mounting method Flush-mounted

Documentation

2 documents
Instruction Use
LE12415AA.pdf pdf (1.13 Mo)
Technical Sheet
F03239EN-00.pdf pdf (0.49 Mo)
1 document
Catalogue Commercial Page
ex223001_0694.pdf pdf (0.08 Mo)
