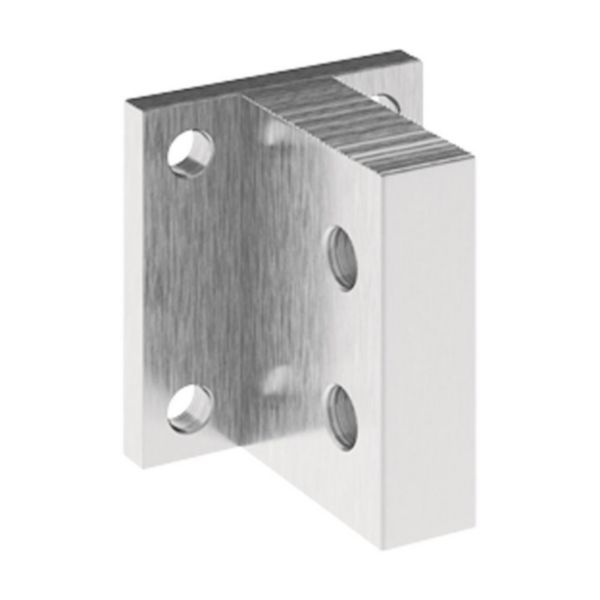

Rear terminal for DMX³ frame 1- fixed version -3P -for vert.connection with bars

LEGRAND

Rear terminal for DMX³ frame 1- fixed version -3P -for vert.connection with bars

REF. 028882 EAN. 3245060288822
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Rear terminals for DMX³ 2500, 4000 and 6300
  • Rear terminals For DMX³ frame 2500 fixed version - 3P - For vertical connection with bars - Those terminals are used in order to transform a flat connection into a vertical one - To be fixed onto Cat.Nos 0 288 84/85 according to the number of poles

Technical characteristics

Type of accessory/spare part Switching piece

Documentation

6 documents
Workshop Book
Workshop Book
Workshop Book
Workshop Book
Instruction Use
LE04940AB.pdf pdf (1.98 Mo)
Instruction Use
Y3204F.pdf pdf (3.37 Mo)
6 documents
Catalogue Technical Page
ex223001_0230-0231.pdf pdf (0.97 Mo)
Catalogue Commercial Page
ex223001_0203.pdf pdf (0.07 Mo)
Catalogue Technical Page
ex223001_0228-0229.pdf pdf (1.14 Mo)
Catalogue Technical Page
ex223001_0208-0209.pdf pdf (0.83 Mo)
Catalogue Technical Page
ex223001_0232.pdf pdf (0.11 Mo)
Catalogue Commercial Page
ex223001_0221.pdf pdf (0.07 Mo)
1 document
3D Autocad
028882.dwg dwg (0.1 Mo)
