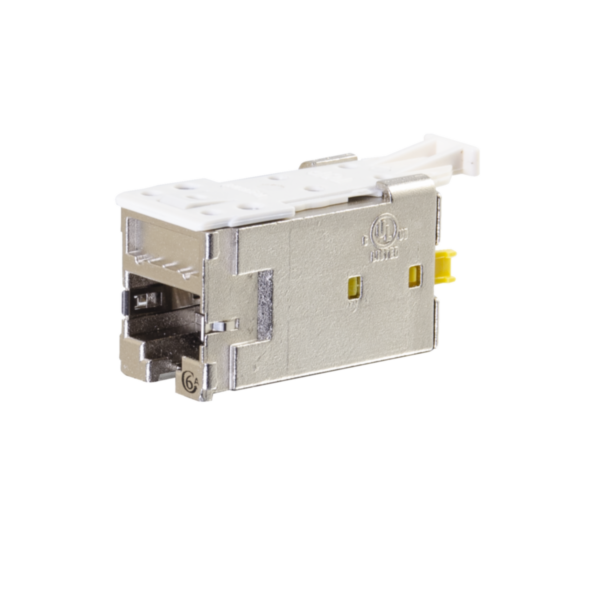

Premium High-Density Jack (HDJ) RJ45 connectors category 6A STP clarity (set of 25)

LCS³ LEGRAND

Premium High-Density Jack (HDJ) RJ45 connectors category 6A STP clarity (set of 25)

REF. HDJS6A25 EAN. 0662875020059

Premium High-Density Jack (HDJ) from CAT5E to CAT 6A. Intertek ETL verified to TIA Category 5E, 6 & 6A component specification. To be installed in cassettes ref. 033680 and 033681 for patch panels

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Premium High-Density Jack (HDJ) from CAT5E to CAT 6A. Intertek ETL verified to TIA Category 5E, 6 & 6A component specification. To be installed in cassettes ref. 033680 and 033681 for patch panels

Product characteristics
  • RJ45 Cat 6A : Data rate up to 10 Gbps. This allows you to download a 1 Gigabyte file in 1 second.
  • All shielded
  • Rear - loading, 180° exit, 8 position
  • Quick and easy lacing cap termination

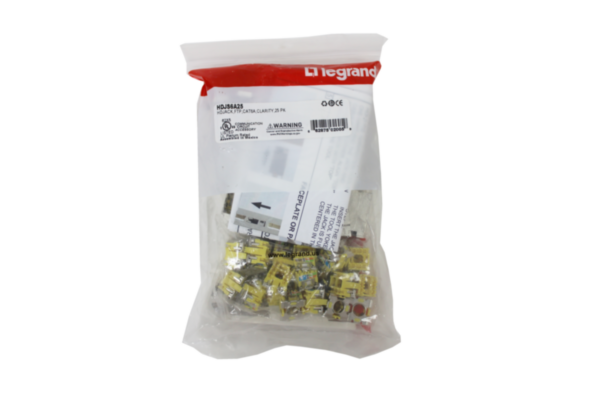

  • Set of 25 connectors
Recommendation / Restriction
  • Conform to standards : ISO/IEC 11 801, EN 50173, ANSI/TIA-568-C.2, UL 1863 (HDJS references also UL 2043), IEEE 802.3af/802.3at 802.3bt. Type 1 to Type 4, FCC chapter 68, subchapter F and conform to IEC-603-7

The product's benefits

Installation
  • Quick and easy lacing cap termination : reduces wiring time for faster installations
Usage
  • Accepts color ID icons: perfect for port identification or segmentation

Technical characteristics

Model Bus (jack)
Type of connector RJ45 8(8)
Screened Yes
Category 6A (TIA)
Connection type Other
Special tool necessary Yes
Suitable for round cable Yes
Suitable for litz wire conductor No
Suitable for solid conductors Yes
Colour Silver
Transparent No
Min. AWG-size Other
Max. AWG-size 22
Compatible with Grade2TV according to XP-C 90-483 No
Compatible with Grade3TV according to XP-C 90-483 No
Width 15.75 mm
Height 20.3 mm
Depth 41 mm
Operating / setting temperature (Min-Max) -10-60 °C
Storage temperature (Min-Max) -40-70 °C
Terminal marking indication Yes
Antimicrobial treatment No
Label space/information surface Yes
Mounting method Other
Maximum Input cable diameter 8.2 mm
Entry membrane gland type Not applicable

Documentation

1 document
Catalogue Commercial Page
ex223001_0994.pdf pdf (0.12 Mo)
