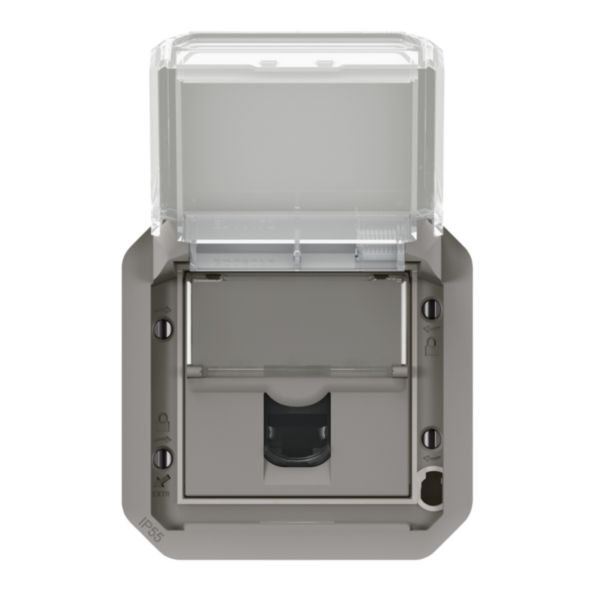

Name: Plexo™ - RJ 45 socket category 6 FTP IP55 with closed shutter IK07 Grey mechanism
SKU: 069569L

Plexo™ - RJ 45 socket category 6 FTP IP55 with closed shutter IK07 Grey mechanism

LEGRAND

Plexo™ - RJ 45 socket category 6 FTP IP55 with closed shutter IK07 Grey mechanism

REF. 069569L EAN. 3414971879133

Compare You can only compare 4 products, you must remove 1 to add this one

RJ45 Cat 6 FTP : Data rate up to 1 GigaBit/s. This allows you to download a 1 GigaBytes file in 8 seconds.
High protection against water and dust. Suitable for garages, cellars , parkings, industrial areas, and outdoor environment (terrace, gardens, campings…)
Grey mechanism

Can be integrated in all supports. Contacts marked with dual colour code and wiring schemes T568 A and T 568 B.

Connector with fast connection thanks to integrated crimping take AWG 22 single-core cables up to AWG 26 and AWG multicore cables

Surface mounting	Yes
Flush-mounted installation	Yes
Duct installation	No
Floor box/subfloor mounted	No
Type of fastening	Screwing
Assembly arrangement	Basic element with central cover plate
Type of connector	2x RJ45 8(8)
With buses/couplings	Yes
Suitable for number of connectors	1
Category	6
Colour	Grey
RAL-number	7046
Connection type	Insulation displacement connector
Shielded buses	No
Shielded housing	No
Separate earthing connection	No
With label space	Yes
Separate strain relief	No

Outlet direction	Straight
With dust cover	Yes
With terminal resistor	No
Degree of protection (IP)	IP55
Mechanical coding	Yes
Colour coding	Yes
Device width	70.5 mm
Device height	70.5 mm
Device depth	42.75 mm
degree of impact strength (IK)	IK08
Operating / setting temperature	-5-35 °C
Storage temperature	-25-60 °C
Terminal marking indication	Yes
Halogen free	No
Antimicrobial treatment	No
Mounting method	Surface mounted/recessed mounted
Cable support	Not applicable
