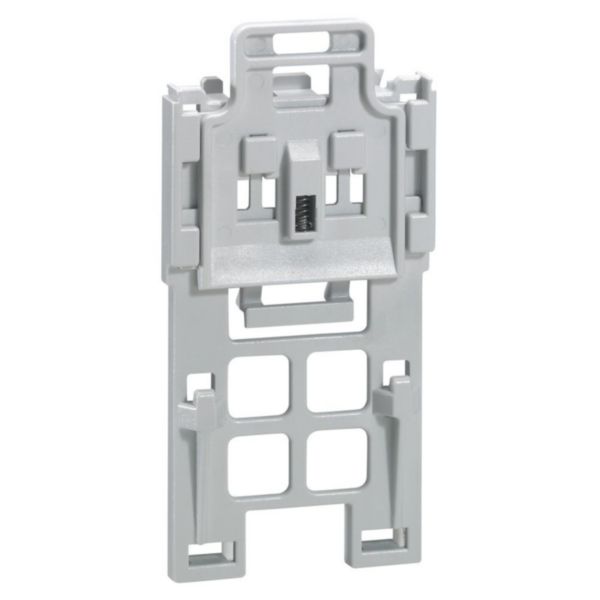

Plate for fixing DRX 125 on rail - for 3P and 4P

Name: Plate for fixing DRX 125 on rail - for 3P and 4P
SKU: 027187

LEGRAND

REF. 027187 EAN. 3245060271879

Compare You can only compare 4 products, you must remove 1 to add this one

DRX 125 - thermal magnetic MCCBs from 15 to 125 A - For switching, control, isolation and protection of low - voltage electrical lines - Can be fitted with auxiliaries - Supplied with : - M5 terminal for In ≤ 50 A and M8 range for In > 50 A - Fixing screws - Insulating shields (2 for 3P and 3 for 4P) - Fixed thermal and magnetic - Conform to IEC 60947 - 2, in compliance with NEMA
Mounting on rail - plates for Fixing DRX 125 on DIN rail - For 3P and 4P

Type of accessory/spare part	Mounting set

3 documents

Select all

Instruction Use

Y1217H.pdf pdf (0.65 Mo)

Workshop Book

EXB22023.pdf pdf (97.63 Mo)

Workshop Book

EXB18032.pdf pdf (100.56 Mo)

3 documents

Select all

Catalogue Commercial Page

ex223001_0132.pdf pdf (0.13 Mo)

Catalogue Technical Page

ex223001_0136.pdf pdf (0.07 Mo)

Catalogue Technical Page

ex223001_0138.pdf pdf (0.05 Mo)
