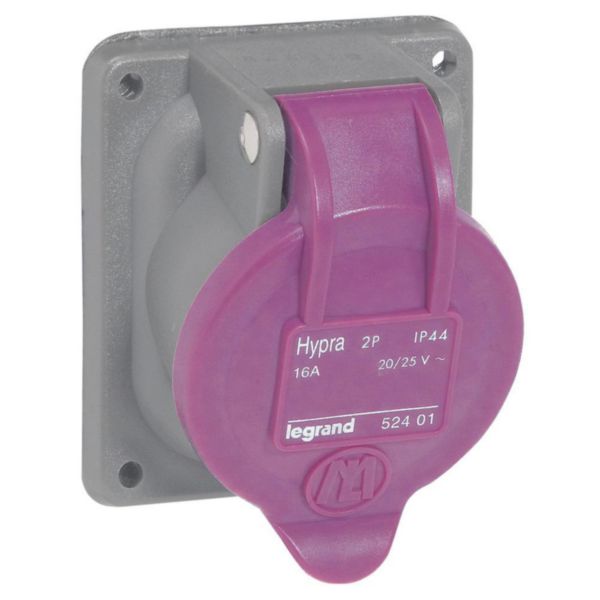

Panel mounting socket Hypra - IP 44 - 20/25 V~ - 16 A - 2P - plastic

Name: Panel mounting socket Hypra - IP 44 - 20/25 V~ - 16 A - 2P - plastic
SKU: 052401

Hypra LEGRAND

REF. 052401 EAN. 3245060524012

Compare You can only compare 4 products, you must remove 1 to add this one

Hypra IP 44 sockets and plugs metal, plastic, rubber, IP 44/55 Prisinter - LV 16 to 63 A and ELV 16 and 32 A - Conform to IEC 60309 - 1 and IEC 60309 - 2 - IP 44 according to IEC 60529 - IK 09 : plastic and rubber - IK 10 : metal according to IEC 62262 - Self - extinguishing : - 850°C (support of active parts) / 960 °C for Prinsinter) - 650 °C : plastic housing conform to IEC 60695 - 2 - 10 - 50°C to + 100°C ( - 20°C for Prisinter) ELV panel mounting sockets 20 to 25 V~ - 50/60 Hz - 16 A 2P - To be associated with surface - mounting box Cat.No 0 524 19 for surface - mounting socket - Plastic - Pack = 5 - 16 A

Material	Plastic
Military model	No
Flange size vertical	72 mm
Drill hole distance vertical	60 mm
Flange size horizontal	64 mm
Drill hole distance horizontal	52 mm
