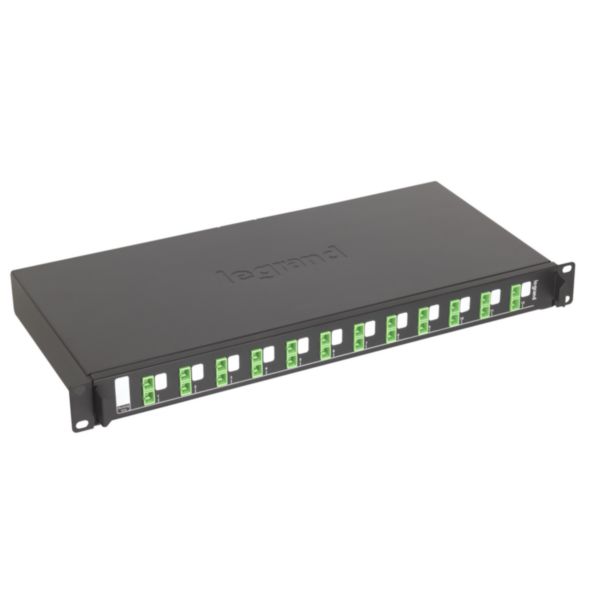

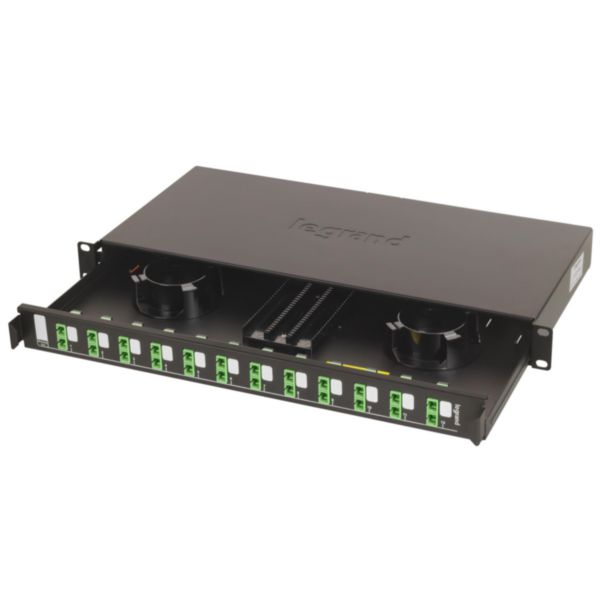

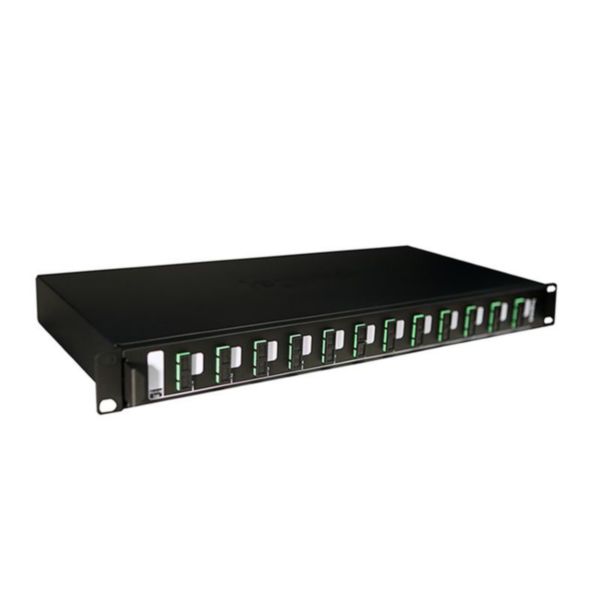

Optic drawer 19 inches 1U sliding equipped with 12 SC APC duplex single-mode connectors for 24 fibres

LCS³ LEGRAND

Optic drawer 19 inches 1U sliding equipped with 12 SC APC duplex single-mode connectors for 24 fibres

REF. 032166 EAN. 3414970958389

Metal 19 inches pre-equipped fibre optic drawers with 4 cable entries, supplied with screw fixing kit, 2 cable glands (diameter 13.5 and 16mm), coiling system and splicing cassette.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Metal 19 inches pre-equipped fibre optic drawers with 4 cable entries, supplied with screw fixing kit, 2 cable glands (diameter 13.5 and 16mm), coiling system and splicing cassette.

Product characteristics
  • Maximum capacity : 12 SC/APC singlemode connectors for 24 fibres
  • Sliding : end stop at a 30° angle for easier wiring.
  • Panel and optic port marking on dedicated marking areas
  • Height 1U, depth 220mm
  • Color black
Recommendation / Restriction
  • Up to 24 fibres. Suitable for a large number of active devices. Recommended in the generic standards ISO/IEC 11801 and EN 50173.

The product's benefits

Installation
  • Supplied with screws and wiring accessories : 4 screws and nuts/4 screws, 2 cable glands (1 x PG16/1 x PG13.5), 2 accessories for coiling the fibres, 1 drawer holder for fixing on the rack, 1 splice holder, fitted but repositionable
Usage
  • Panel and optical ports marked on dedicated marking area.
Avantages
  • Panel marking area for labelling

Technical characteristics

Suitable for number of couplings/adaptors 24
Suitable for number of module inserts 12
With number of couplings/adaptors 2
With front plate No
With housing No
With pigtails No
Fibre type Single mode
Fibre class OS2
APC-version Yes
Type of connector external SC duplex
Type of connector interior SC duplex
Colour Black
Mounting method 482.6 mm (19 inch) mounting
Number of height units 1
Height 43.6 mm
Width 482.6 mm
Depth 238.6 mm

Documentation

3 documents
Technical Sheet
S000095448FR-00.pdf pdf (1.48 Mo)
Technical Sheet
S000095448EN-00.pdf pdf (1.08 Mo)
Instruction Use
LE09649AB.pdf pdf (3.4 Mo)
1 document
Catalogue Commercial Page
ex223001_1000.pdf pdf (0.13 Mo)
