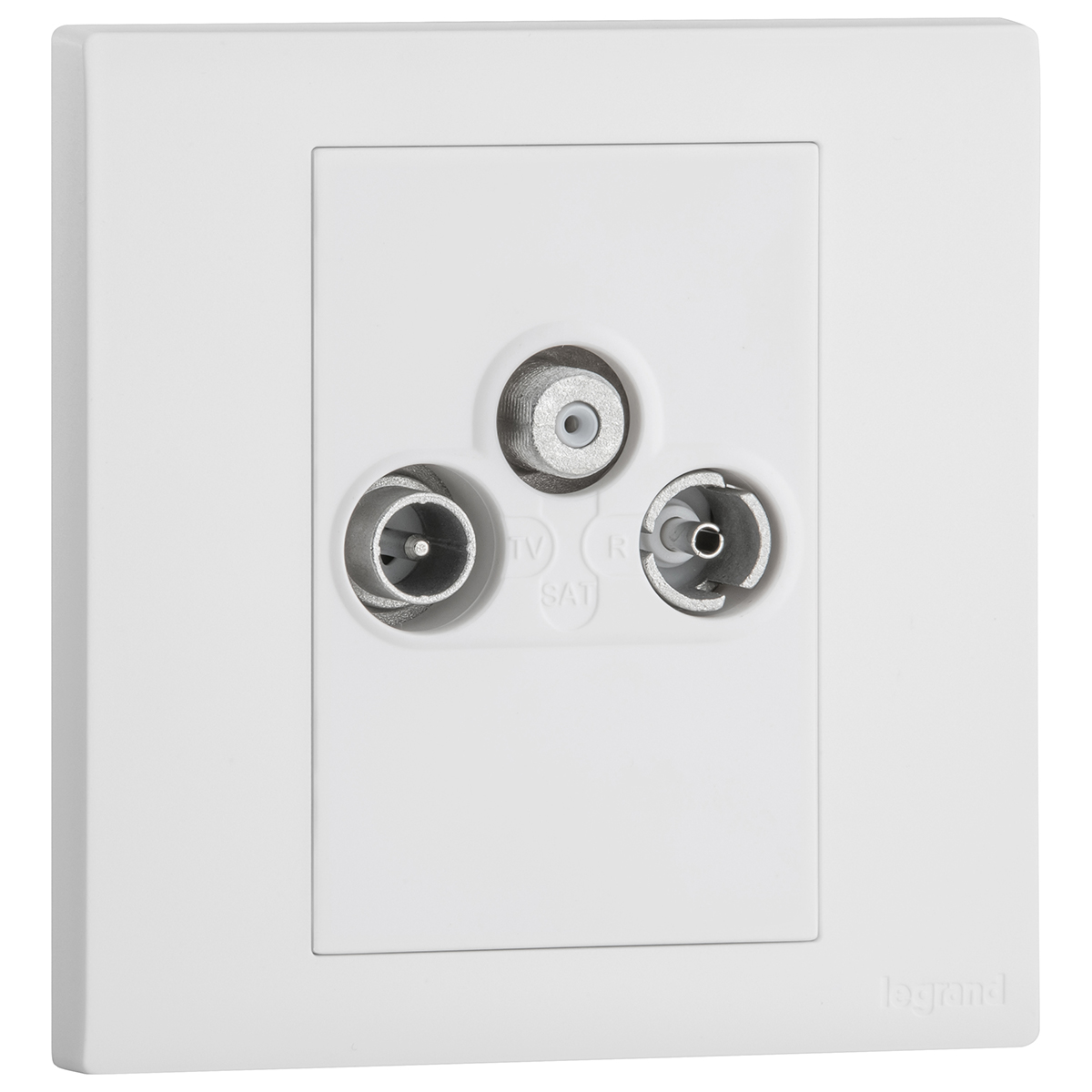

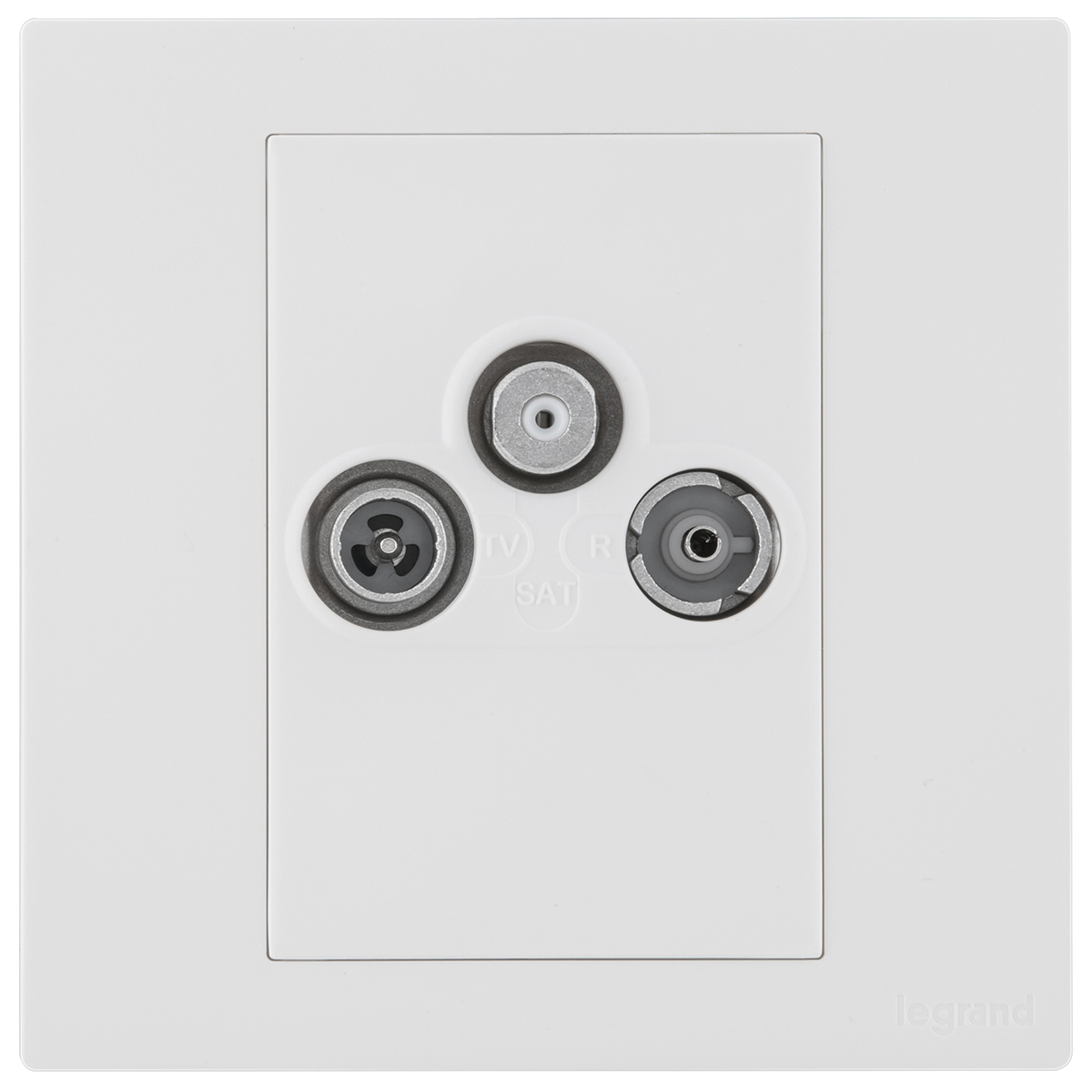

Obria Tv + R + Sat - Matt White

Obria Legrand

Obria Tv + R + Sat - Matt White

REF. MEC41067WH EAN. 3414972675260
Allows to connect all types of televisions, DVBT, SAT, CATV
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Allows to connect all types of televisions, DVBT, SAT, CATV

Product characteristics
  • Sold as a complete set under one cat number
  • TV 9,5mm Male, Radio 9,5mm Female, SAT with Type F screw connector
  • LTE protected class A level / Attenuation loss < 1,5 dB
  • Matt White Finish
  • Conform to EN-50083-4 & EN-50083-2
Recommendation / Restriction
  • Recommended inside use only

The product's benefits

Installation
  • Visual check of the connection. Secured screw connection.
Usage
  • Limited cable bend radius that lower attenuation losses
Avantages
  • Low attenuation socket
  • Modern full plate design for a perfect decoration integration
  • Delivered with screws for flush and surface boxes in both plastic and metal boxes

Technical characteristics

Model End socket
Type of socket outlet TV/RD/SAT
Mounting method Flush-mounted
Number of modules (module system) 2
Assembly arrangement Basic element with full cover plate
Tap loss at 860 MHz 1.5 dB
Suitable for remote power supply No
Radio frequency band (Min-Max) 87.5-108 MHz
SAT frequency band (Min-Max) 950-2400 MHz
Type of fastening Mounting with screw
Colour White
RAL-number (similar) 9003
Surface protection Untreated
Surface finishing Matt
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 86 mm
Device height 87.4 mm
Device depth 39.6 mm
Min. depth of built-in installation box 35 mm
Built-in depth 27.3 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Terminal marking indication No
