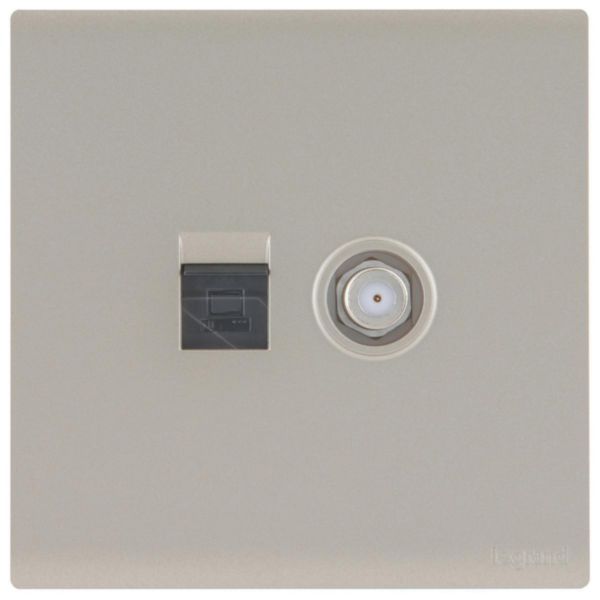

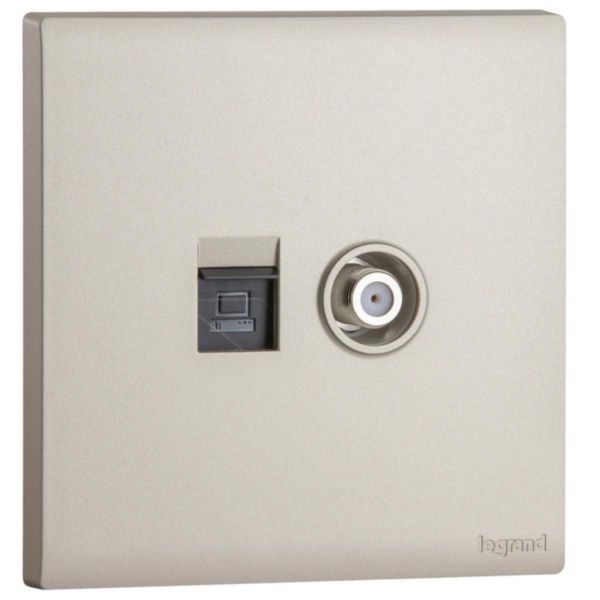

Obria TV F Type + RJ45 CAT6 - Surface mounted/recessed mounted - IP20 - Champagne

Obria Legrand

Obria TV F Type + RJ45 CAT6 - Surface mounted/recessed mounted - IP20 - Champagne

REF. MEC49071CH EAN. 3414972676250

Obria RJ45 + TV socket allows the connection of 2 devices to the network: 1 TV and 1 computer/printer. The wired distribution guarantees a high speed, secured and reliable connection to the internet. To be completed with a plate.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Obria RJ45 + TV socket allows the connection of 2 devices to the network: 1 TV and 1 computer/printer. The wired distribution guarantees a high speed, secured and reliable connection to the internet. To be completed with a plate.

Product characteristics
  • RJ45 Cat 6 : Data rate up to 1 GigaBit/s. This allows you to download a 1 GigaByte file in 8 seconds.
  • Star cabling (1 socket = 1 cable to antenna) ensures a HD quality level of distribution of TV signal. For all operators (DVBT, satellite, Cablecast). Meet EN 50083-4 and EN 50083-2 European Directive.
  • HDTV compatible: low attenuation (
  • Mechanism with claws to ease the mounting in case of refurbishment.
  • Champagne
Recommendation / Restriction
  • Compliant with ISO/IEC 11801 edition 3.0 (2017) standards. Mimimum 40mm depth electrical installation box needed. Take AWG22 up to AWG26 single-core cables. Take AWG26 multicore cables. Indoor use only.

The product's benefits

Installation
  • Shallow depth RJ45 mechanism facilitating mounting into the flush-mounted box. RJ45 equipped with a tool less quick connector for intuitive and reliable wiring. The TV socket has been designed for intuitive insertion of the cable. The connection to the terminal block is easy and fast. The visible connection allows to know with certainty if the cable is tight.
Usage
  • Suitable for residential installation. Very suitable RJ45 for downloads, streaming or online games requiring low latency. Optimized TV socket for new UHD or 4K TVs: designed for optimal signal reception.
Avantages
  • Full rocker range with colors to match eco projects both in residential and commercial​.
  • Class A certified shielding: protects against interference caused by new signals used by mobile phones (3G, 4G, 5G). These unwanted signals can cause pixelation, image jamming and noise disturbances.
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation. Can be installed in a normal (single) flush mounting box, no need to additional wall groove cutting or cabling.

Technical characteristics

Surface mounting Yes
Flush-mounted installation Yes
Duct installation No
Floor box/subfloor mounted No
Type of fastening Engage (snap)
Assembly arrangement Basic element with central cover plate
Type of connector Other
Suitable for number of connectors 1
Category 6
Colour Gold
Separate earthing connection No
Compatible with third-party covers No
Separate strain relief No
Outlet direction Straight
With dust cover Yes
With terminal resistor Yes
Degree of protection (IP) IP20
Device width 86 mm
Device height 87.4 mm
Device depth 39.9 mm
Number of modules (module system) 2
Built-in depth 31.2 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Terminal marking indication Yes
Halogen free No
Antimicrobial treatment No
Mounting method Surface mounted/recessed mounted
Horizontal fixing center distance (Min-Max) 60.3-60.3 mm
Cable support Not applicable

Documentation

1 document
Technical Sheet
F04224EN-00.pdf pdf (0.8 Mo)
