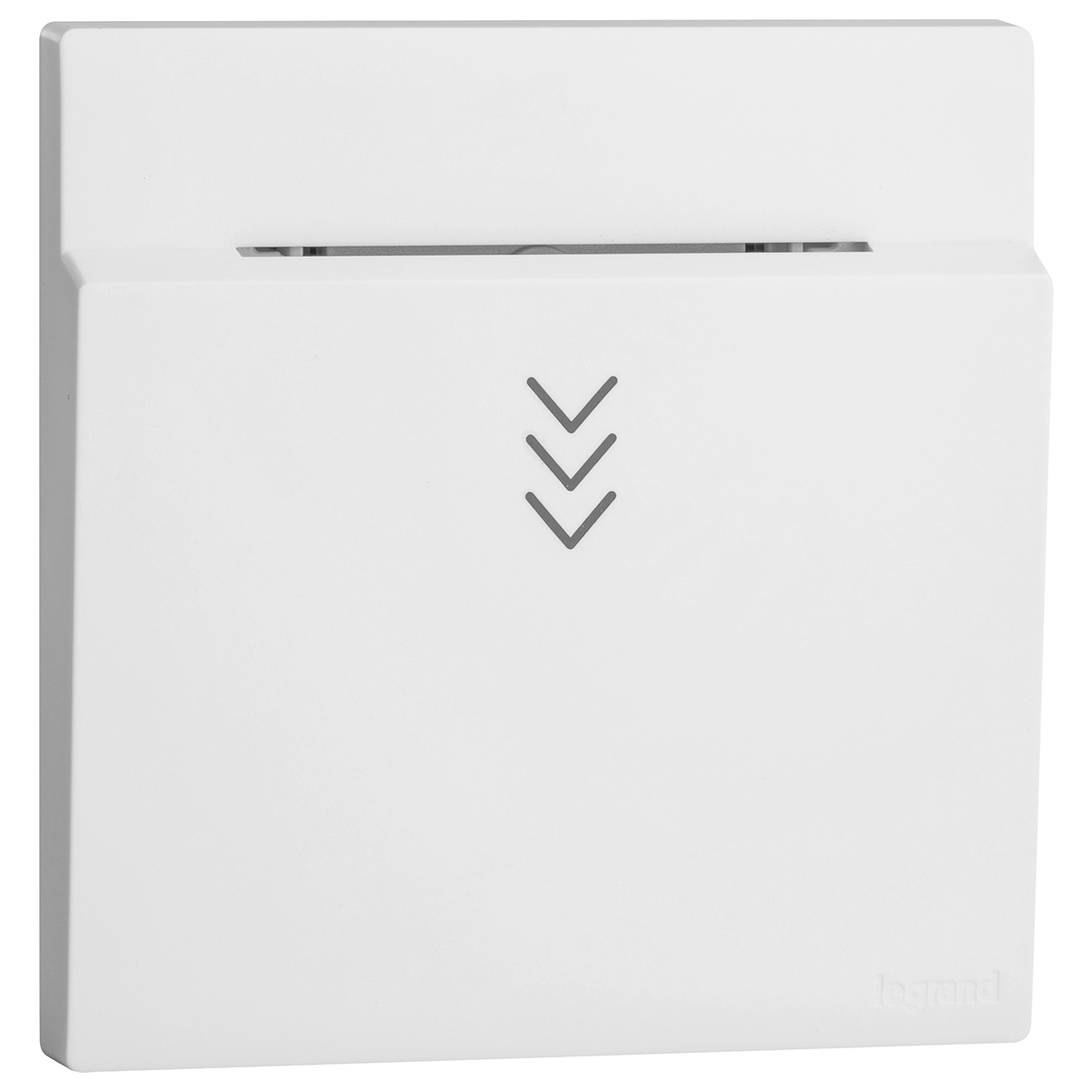

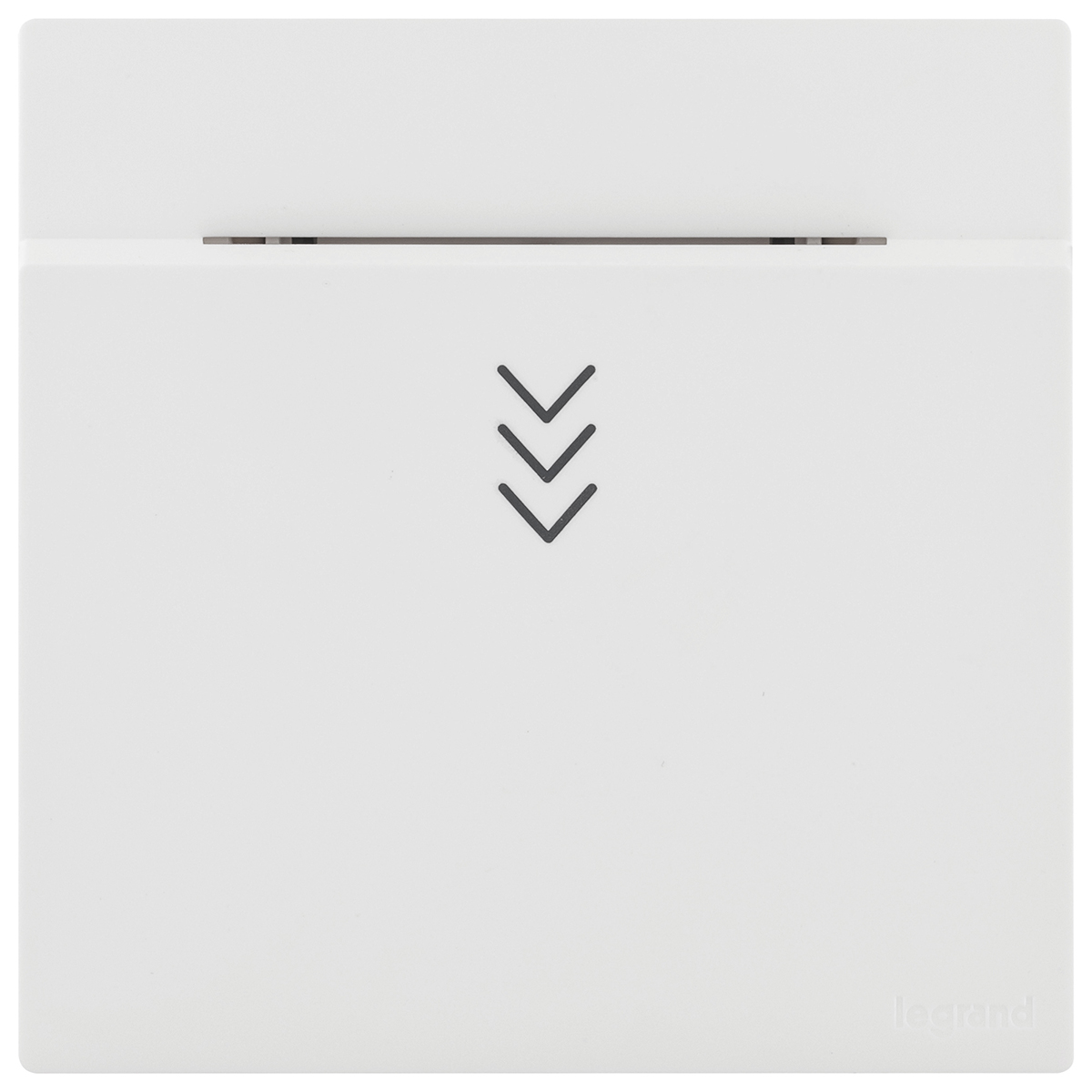

Obria Key Card 220V Electronic Switch - Matt White

Obria Legrand

Obria Key Card 220V Electronic Switch - Matt White

REF. MEC27016WH EAN. 3414972669887

Allows the turning on of all appliances (light, AC, power) in a hotel room by card insertion.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Allows the turning on of all appliances (light, AC, power) in a hotel room by card insertion.

Product characteristics
  • Sold as a complete set under one cat number
  • 220V
  • Screw type terminals for enhanced contacts and open terminal for easy to install
  • Matt White Finish
  • RFID technology to secure access
Recommendation / Restriction
  • Recommended inside use only

The product's benefits

Usage
  • Convenient access to guest room experience
Avantages
  • Technicity and Robustness of the support frame
  • Modern full plate design for a perfect decoration integration
  • Homogeneous hotel offer

Technical characteristics

Wiring system Other
Method of operation Rocker/button
Assembly arrangement Basic element with housing top
Push button switch No
Mounting method Flush-mounted
Type of fastening Screw mounting
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Colour of switch operator White
Label space/information surface No
Lighting No
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Nominal voltage 250 V
Rated current 16 A
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 86 mm
Device height 87.4 mm
Device depth 44.7 mm
Built-in depth 31 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Compliant with UK Building Regulations Part M No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 1-4 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1-4 mm²
Tube diameter for wall mounted product (Min-Max) 16-32 mm

Documentation

1 document
Technical Sheet
F04204EN-00.pdf pdf (0.66 Mo)
