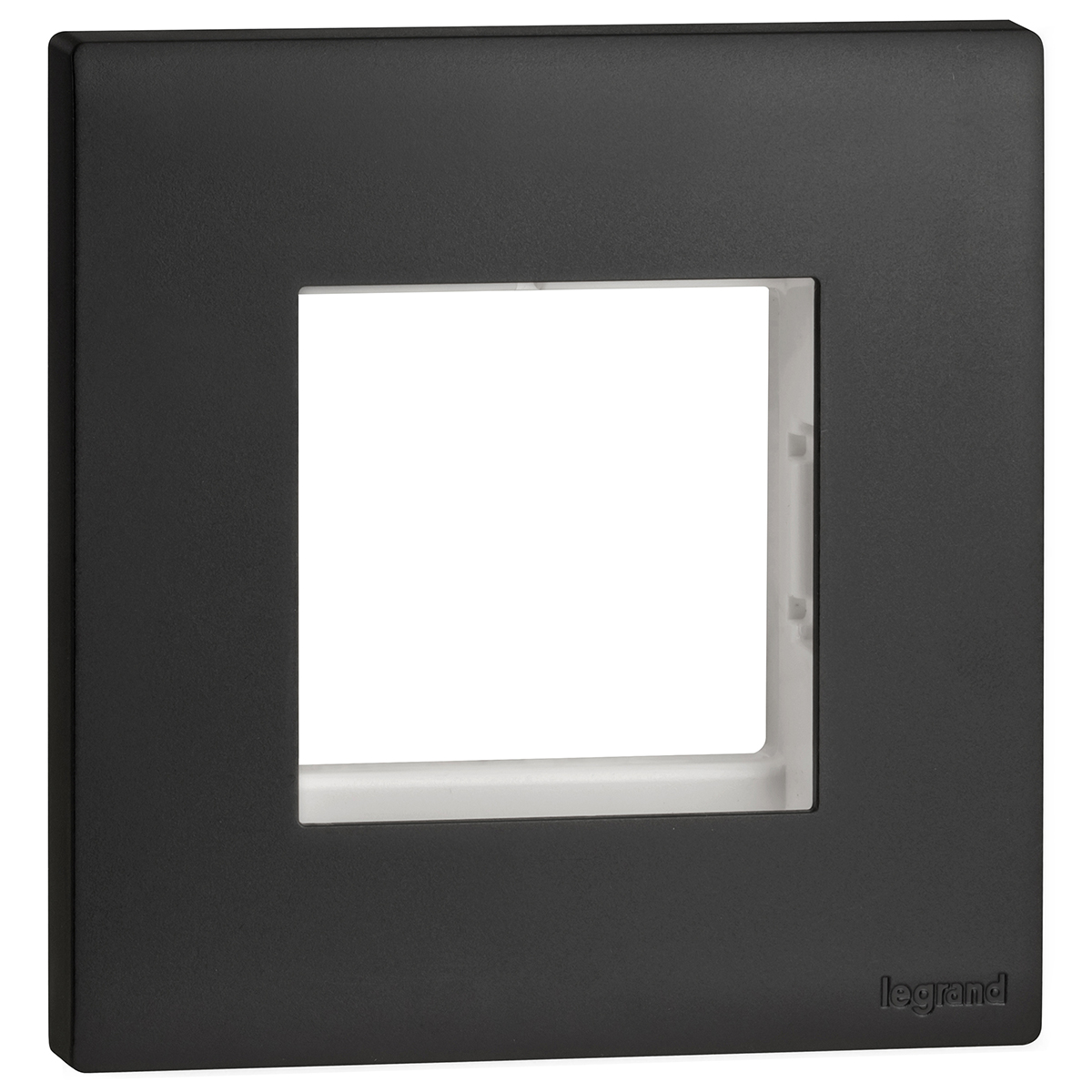

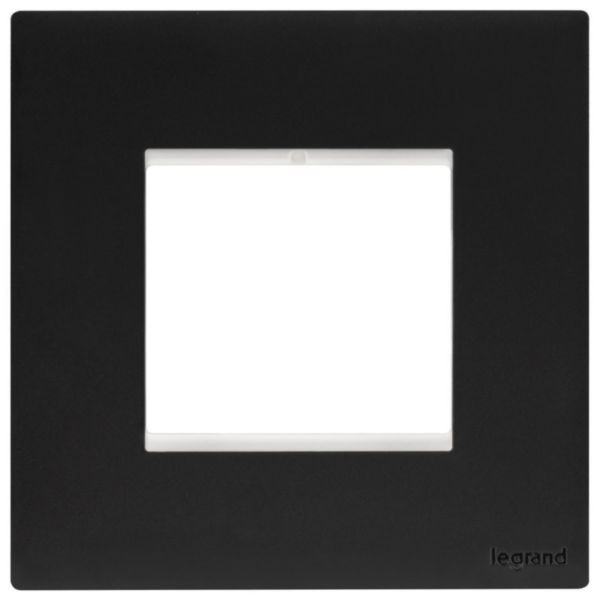

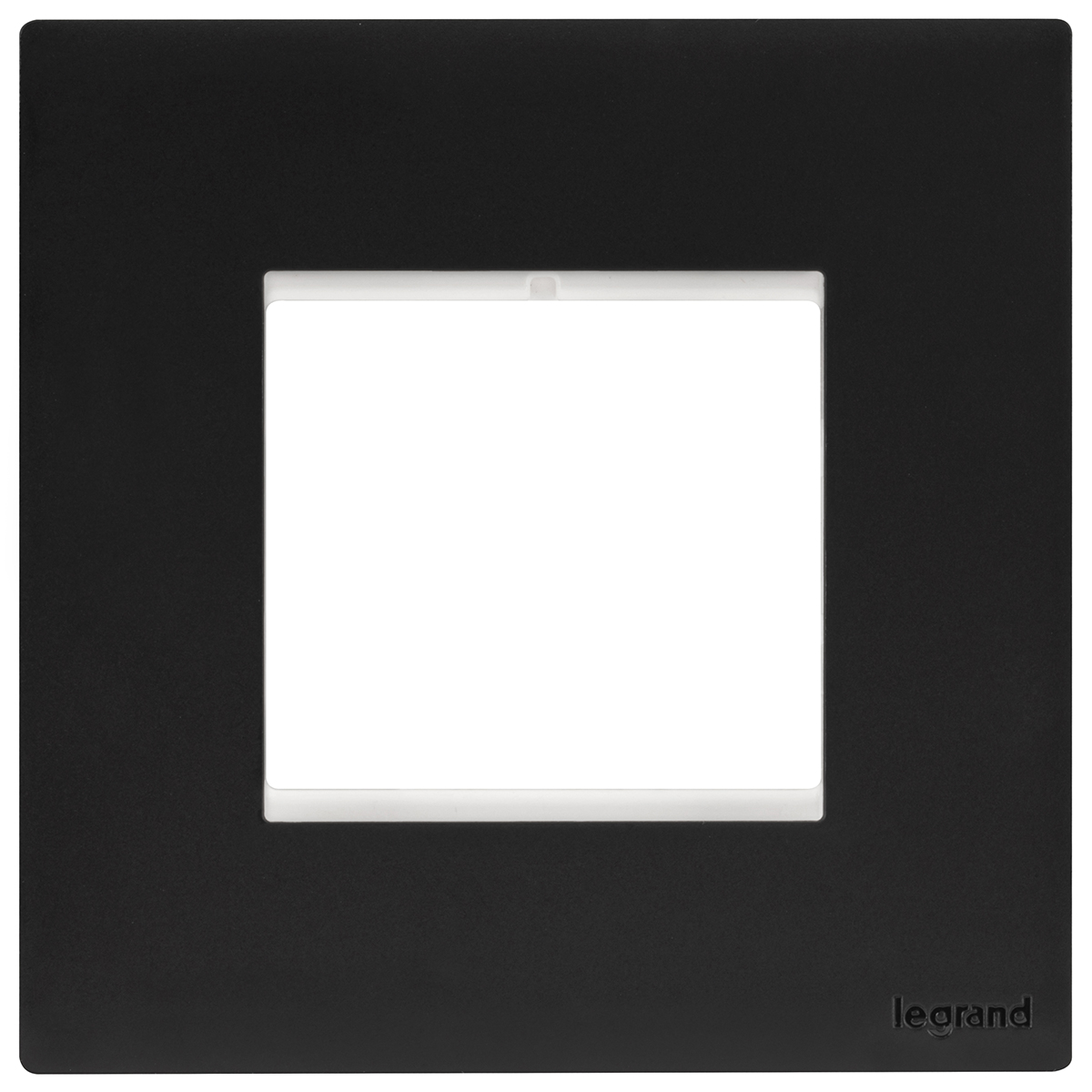

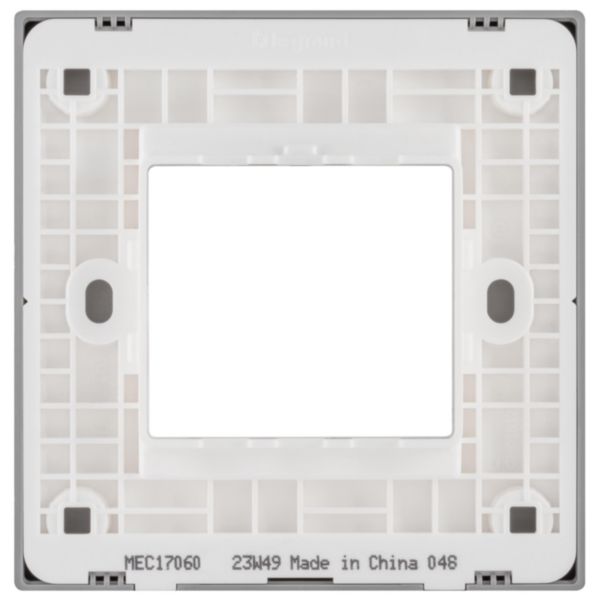

Obria 1 gang 2 Modules Arteor Adaptor - Matt Black

Name: Obria 1 gang 2 Modules Arteor Adaptor - Matt Black
SKU: MEC17060BL

Obria Legrand

REF. MEC17060BL EAN. 3414972665766

Allows to fit any Arteor function into this frame, up to 2 modules.

Compare You can only compare 4 products, you must remove 1 to add this one

Allows to fit any Arteor function into this frame, up to 2 modules.

Optimised range for new builds and ideal for renovation projects
Delivered with screws for flush and surface boxes in both plastic and metal boxes

Assembly arrangement	Basic element with central cover plate
Support ring	No
With dust cover	No
With hinged lid	No
Imprintable label	Without indication field
With imprint	No
Mounting method	Flush-mounted
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Antimicrobial treatment	No
Surface protection	Untreated
Surface finishing	Matt
Colour	Black
Transparent	No
Type of fastening	Mounting with screw
Number of modules (module system)	2

With buses/couplings	No
Suitable for number of connectors	1
Isolated connections	Yes
With strain relief	No
Shielded buses	No
Shielded housing	No
Luster terminal	No
With lighting	No
Suitable for degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Device width	86 mm
Device height	87.4 mm
Device depth	15 mm
Min. depth of built-in installation box	35 mm
Built-in depth	7.1 mm
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C

1 document

Select all

Technical Sheet

F04216EN-00.pdf pdf (0.61 Mo)

1 document

Select all

Agreement

OC / CB-CN56383-M1 (0.5 Mo)
