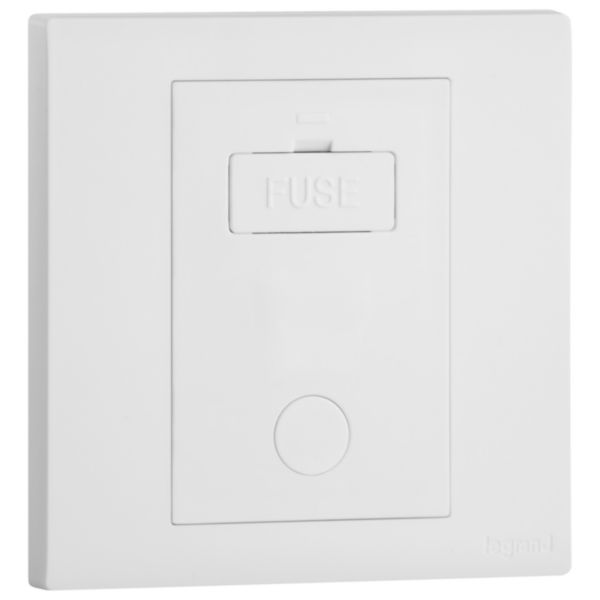

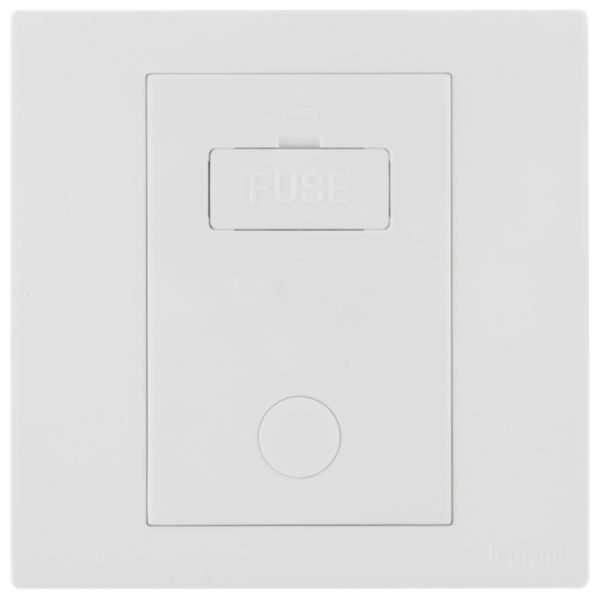

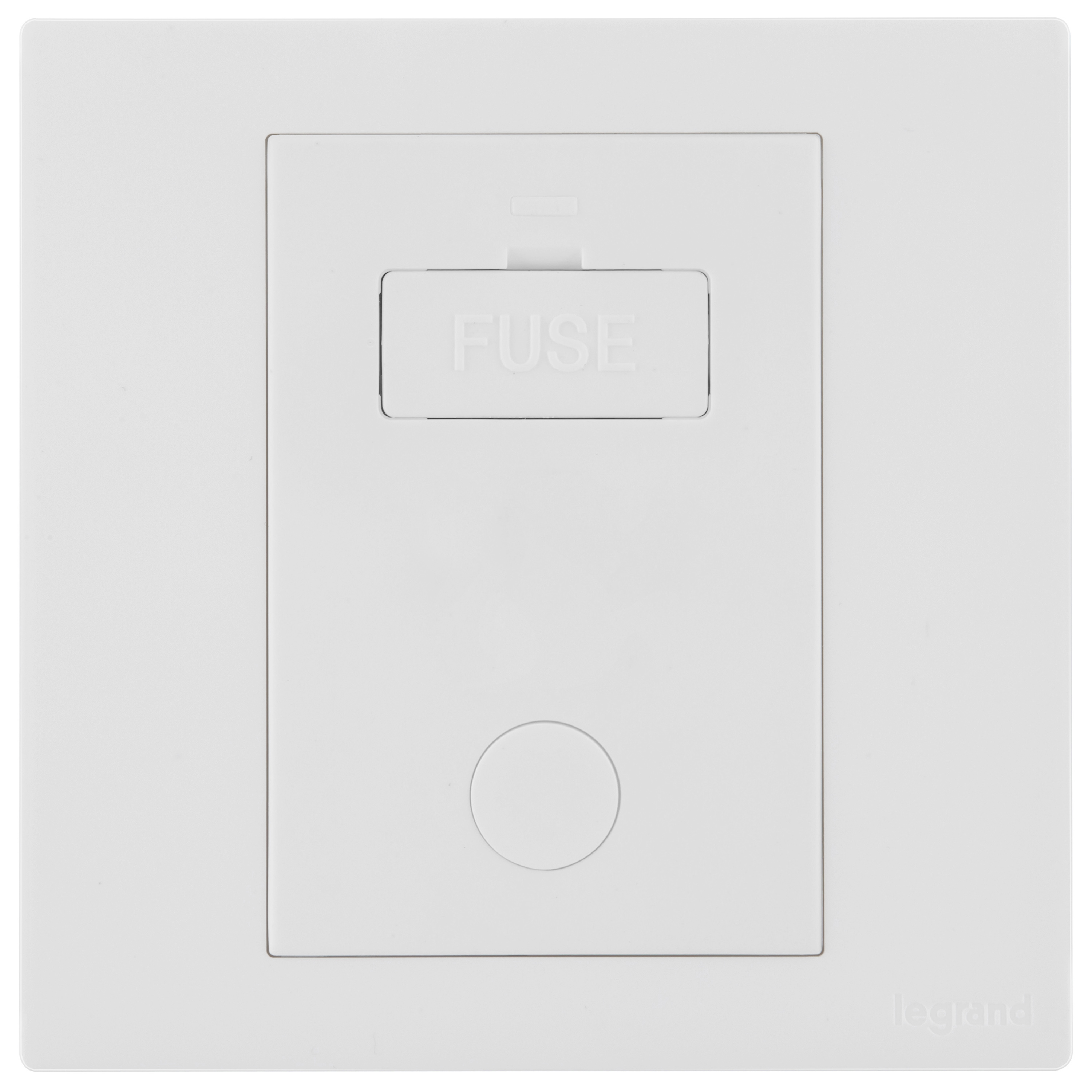

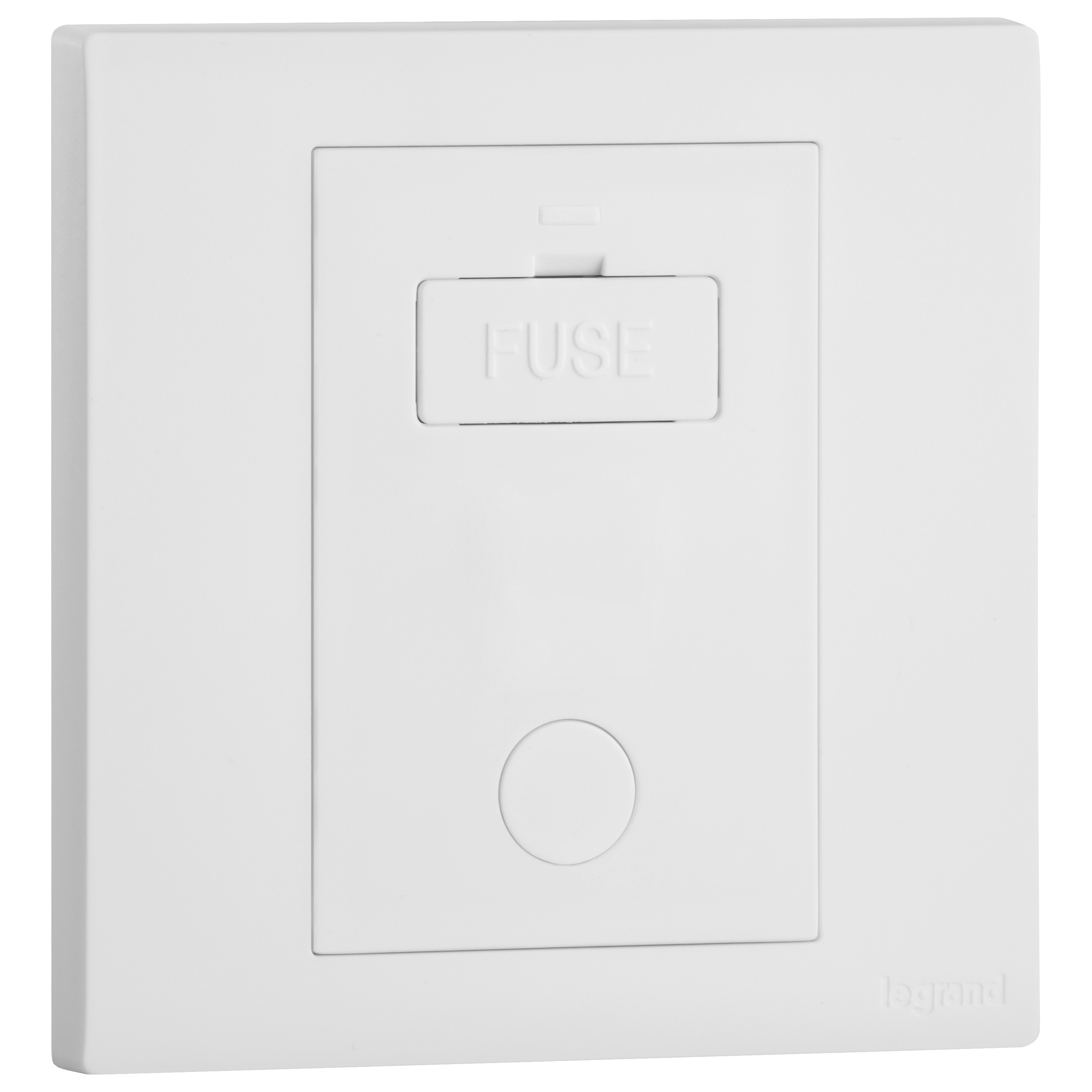

Obria 1 gang 13A Fused Spur Unit Unswtiched + Cord Outlet - Matt White

Name: Obria 1 gang 13A Fused Spur Unit Unswtiched + Cord Outlet - Matt White
SKU: MEC62055WH

Obria Legrand

REF. MEC62055WH EAN. 3414972676465

Fused connection unit allows the electrical protection of the device connected to it. Unswitched product + cord outlet

Compare You can only compare 4 products, you must remove 1 to add this one

Fused connection unit allows the electrical protection of the device connected to it. Unswitched product + cord outlet

Sold as a complete set under one cat number
13A
Screw type terminals for enhanced contacts and open terminal for easy to install
Matt White Finish

Complies with British Standards certifications for heavy loads. No accessible electrical contact under the plate.

Connection type	Screw connection
Mounting method	Housing mounting
Type of current	AC
Rated current	13 A
Rated voltage	250 V
Dimensions glass fuse	Other
Width	86 mm
Height	87.4 mm
Depth	32 mm
Built-in depth	23.9 mm
degree of impact strength (IK)	IK04
Degree of protection (IP)	IP20
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C

Voltage type	AC
Nominal voltage (Min-Max)	250-250 V
Supply current (Min-Max)	13-13 A
Frequency (Min-Max)	50-60 Hz
Mandatory neutral	Yes
Terminal marking indication	Yes
Colour	White
RAL-number	9003
Halogen free	Yes
Antimicrobial treatment	No
Number of terminals	5
Terminals capacity (Min-Max)	1-4 mm²
Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	1-4 mm²

1 document

Select all

Technical Sheet

F04219EN-00.pdf pdf (0.58 Mo)

1 document

Select all

Agreement

AoC-TA24-0515 (0.32 Mo)
