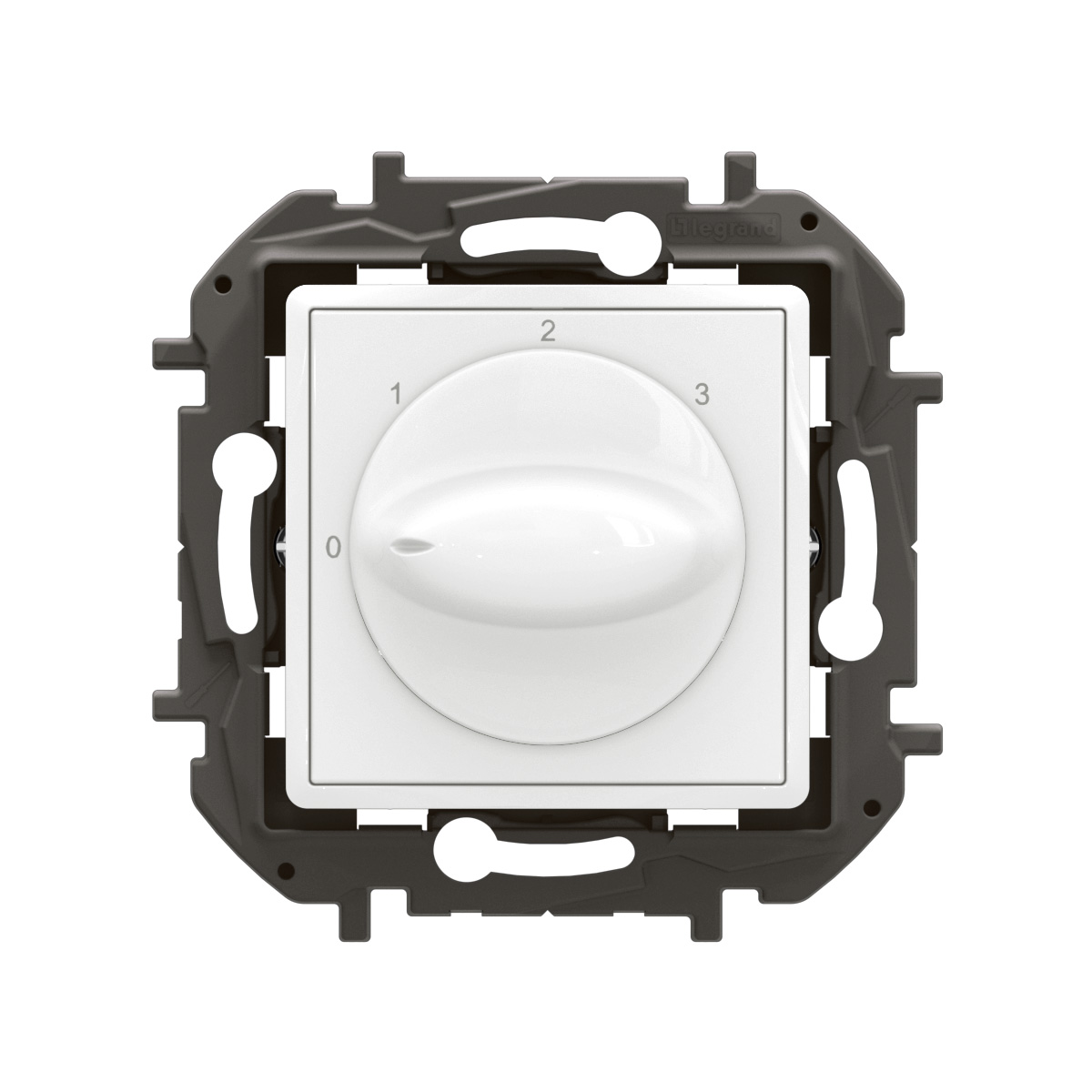

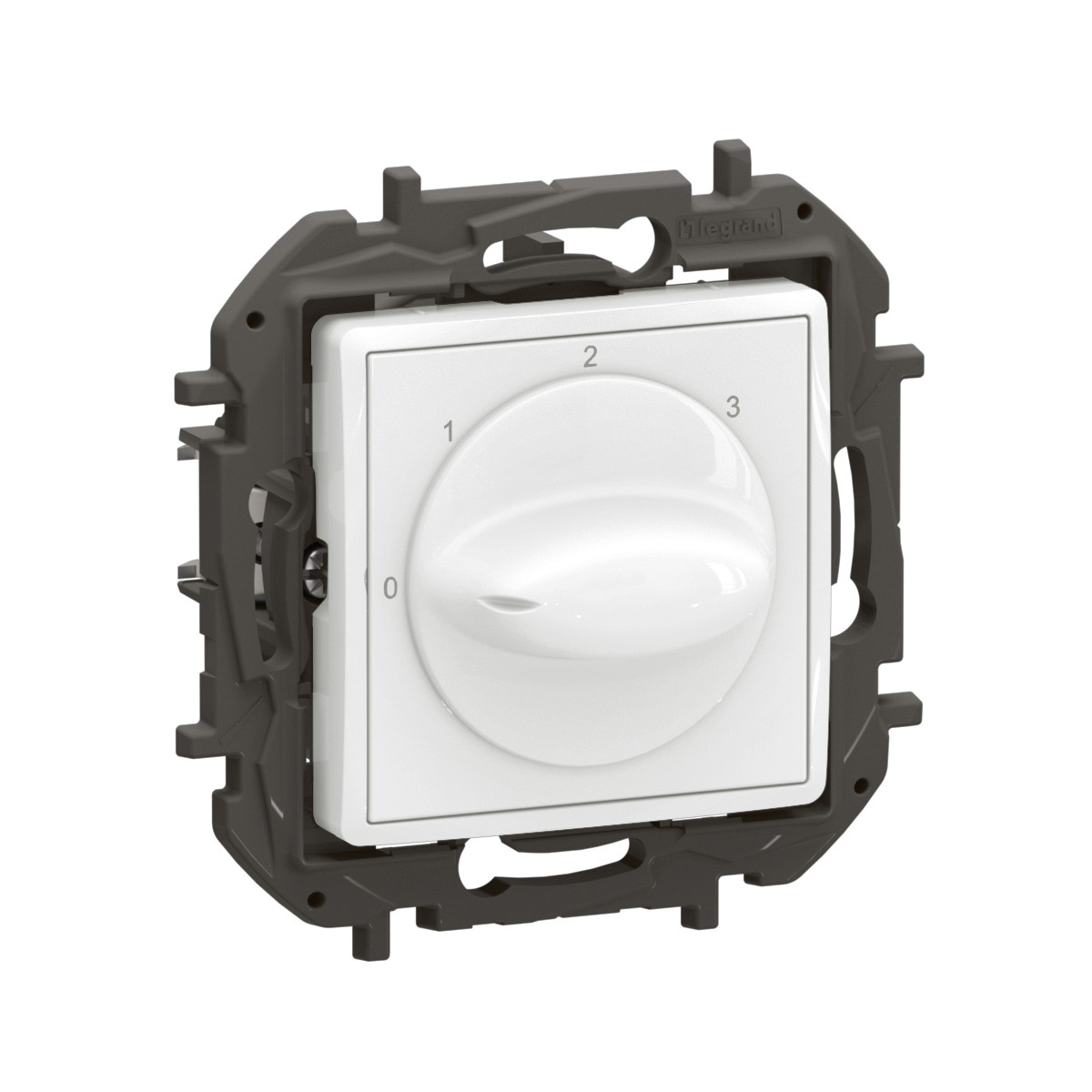

Niloé - Ventilation control switch 0,1,2,3 white - 1-pole rocker - 250V 10A AC - Flush-mounted IP20 thermoplastic

Niloé Legrand

Niloé - Ventilation control switch 0,1,2,3 white - 1-pole rocker - 250V 10A AC - Flush-mounted IP20 thermoplastic

REF. NP660WH EAN. 3414972622936
The Niloé ventilation control switch offers precise motor control with 0,1,2,3 positions, a 1-pole 250V AC mechanism, robust thermoplastic construction, glossy white finish, and flush-mounted design for seamless integration.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé ventilation control switch offers precise motor control with 0,1,2,3 positions, a 1-pole 250V AC mechanism, robust thermoplastic construction, glossy white finish, and flush-mounted design for seamless integration.

Product characteristics
  • Rated for 20A switching at 250V AC, suitable for demanding ventilation motor control applications.
  • Plastic support frame constructed from high-rigidity thermoplastic for enhanced mechanical resistance.
  • Compatible with ECO2 mechanism; supplied in a recyclable paper box for professional convenience.
  • Flush-mounted 1-pole rocker switch with glossy white finish, IP20 protection, and 75.8x75.8mm dimensions.
  • Halogen-free, claw-mounted design with terminal capacity of 1.5mm² to 2.5mm², operating temperature range -5°C to 40°C.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Avantages
  • Glossy white finishing

Technical characteristics

Wiring system Switch 1-pole
Method of operation Rocker/button
Assembly arrangement Basic element with central cover plate
Push button switch No
Number of rockers 1
Mounting method Flush-mounted
Type of fastening Mounting with claw
With mounting plate Yes
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Glossy
Colour White
RAL-number (similar) 9003
Colour of switch operator White
Label space/information surface No
Lighting Optional
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Nominal voltage 250 V
Rated current 10 A
Switching current for fluorescent lamps 10 AX
Monitoring contact No
Connection type Other
Heating switch No
Washing machine switch No
Device width 75.8 mm
Device height 75.8 mm
Device depth 44.8 mm
Built-in depth 31 mm
Min. depth of built-in installation box 31 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Terminal marking indication No
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Not applicable
Cable section (Min-Max) 1.5-2.5 mm²
Tube diameter for wall mounted product (Min-Max) 58-58 mm
