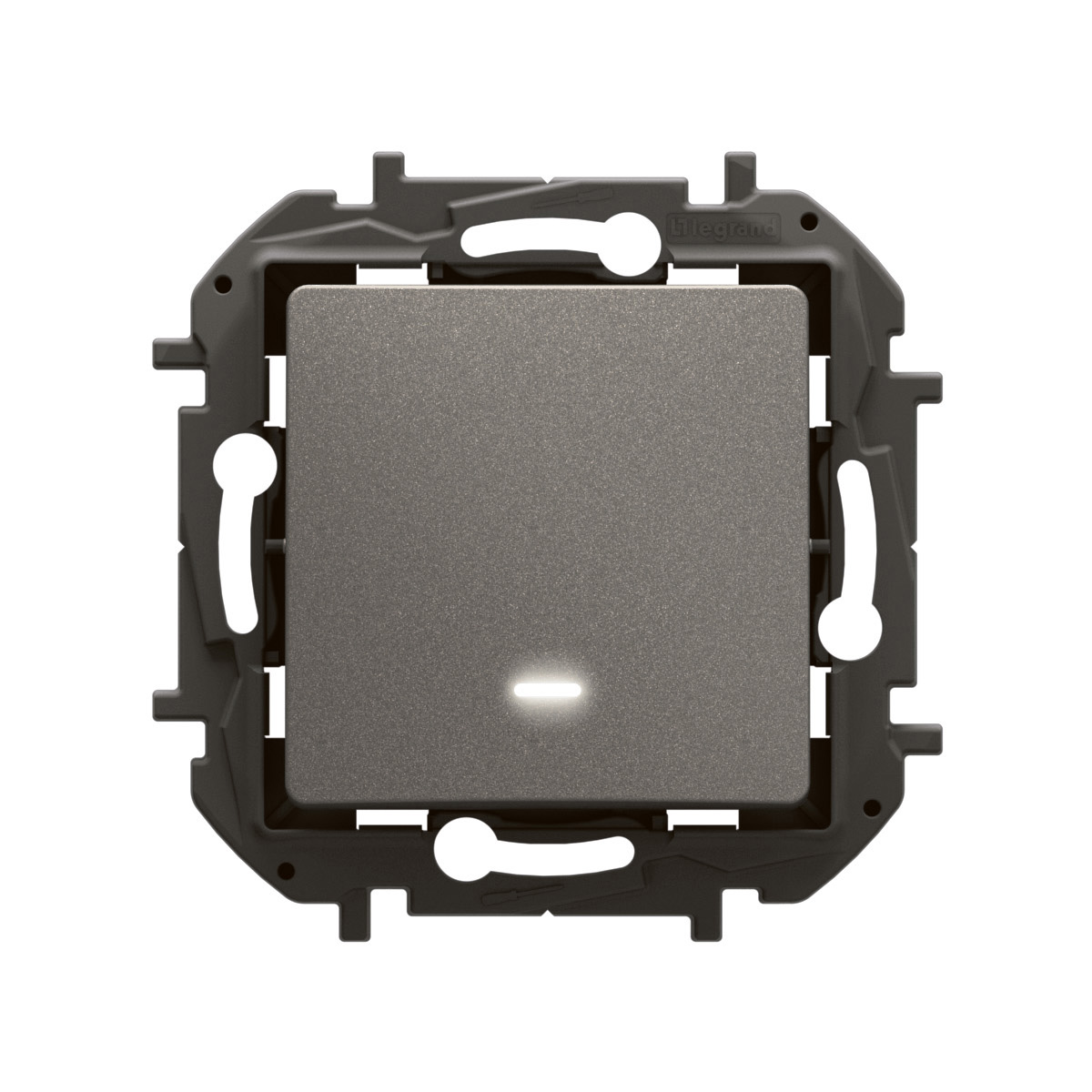

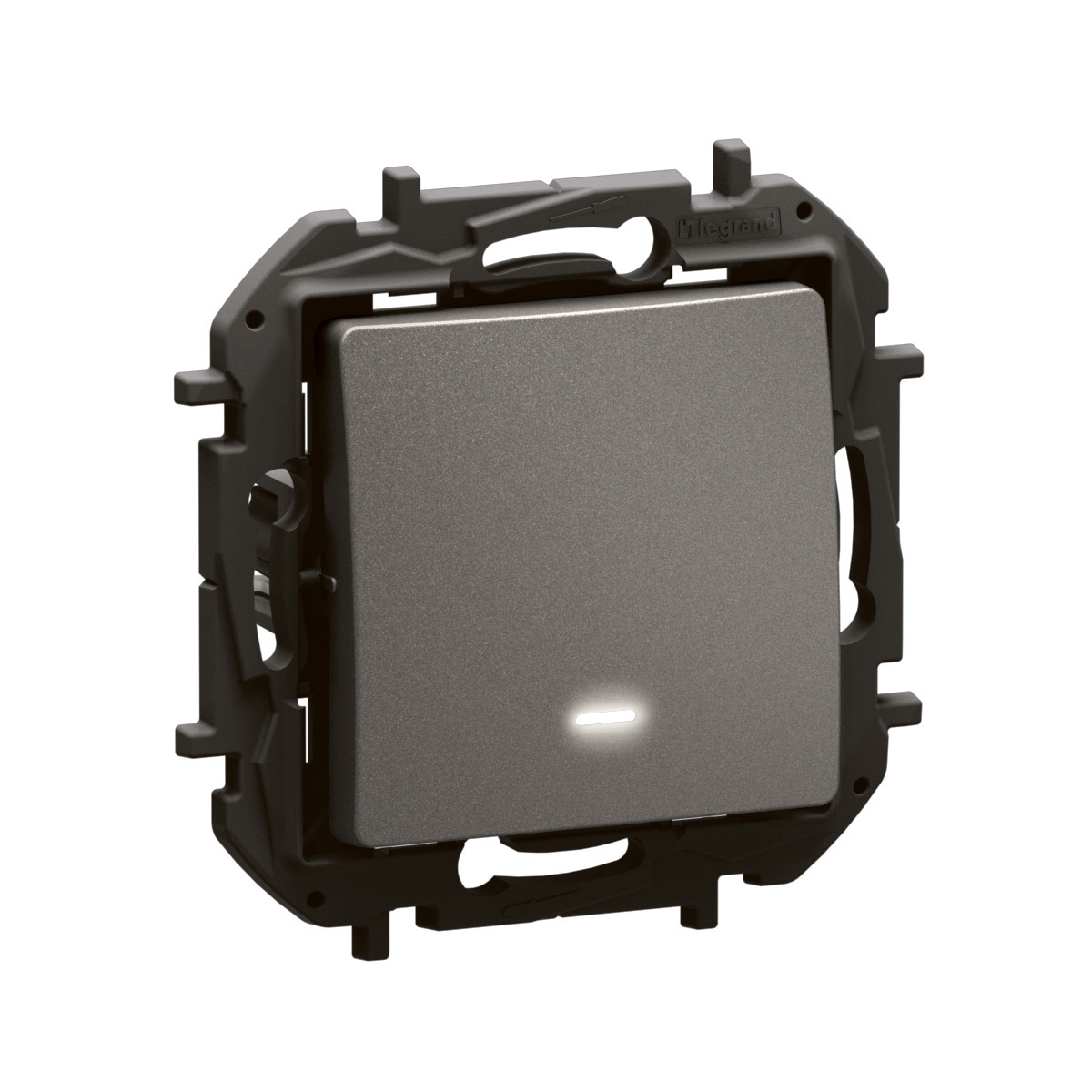

Niloé - Two-way switch illuminated medium grey - 10A 250V AC - Flush-mounted IP20 - Matte thermoplastic finish

Niloé Legrand

Niloé - Two-way switch illuminated medium grey - 10A 250V AC - Flush-mounted IP20 - Matte thermoplastic finish

REF. NP2211MG EAN. 3414972773720
The Niloé illuminated two-way switch enables control from one or two locations, with a locator LED for easy identification in the dark. Flush-mounted, matte medium grey, supports 250V 10A, requires completion with a plate.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé illuminated two-way switch enables control from one or two locations, with a locator LED for easy identification in the dark. Flush-mounted, matte medium grey, supports 250V 10A, requires completion with a plate.

Product characteristics
  • Automatic terminals enable rapid, tool-free wire connection for efficient installation.
  • Claw mounting mechanism facilitates secure flush-mount installation, ideal for refurbishment projects.
  • Rated for 10A 250V~ AC operation, supporting standard residential and commercial lighting circuits.
  • Rigid thermoplastic support frame offers high mechanical strength and is halogen-free for enhanced safety.
  • Compatible with ECO2 mechanisms; supplied in a recyclable paper box for professional convenience and sustainability.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Avantages
  • Matte Medium Grey finishing

Technical characteristics

Wiring system Two-way switch
Method of operation Rocker/button
Assembly arrangement Basic element with central cover plate
Push button switch No
Number of rockers 1
Mounting method Flush-mounted
Type of fastening Mounting with claw
With mounting plate Yes
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Grey
Colour of switch operator Titanium
Label space/information surface No
Lighting Yes
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Nominal voltage 250 V
Rated current 10 A
Switching current for fluorescent lamps 10 AX
Monitoring contact No
Connection type Other
Heating switch No
Washing machine switch No
Device width 75.8 mm
Device height 75.8 mm
Device depth 44.8 mm
Built-in depth 31 mm
Min. depth of built-in installation box 31 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Terminal marking indication No
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Not applicable
Cable section (Min-Max) 1.5-2.5 mm²
Tube diameter for wall mounted product (Min-Max) 58-58 mm

Documentation

2 documents
Technical Sheet
F04327EN-02.pdf pdf (0.69 Mo)
Instruction Use
LE14964AE.pdf pdf (9.98 Mo)
1 document
RoHS DIRECTIVE
1 document
Agreement
