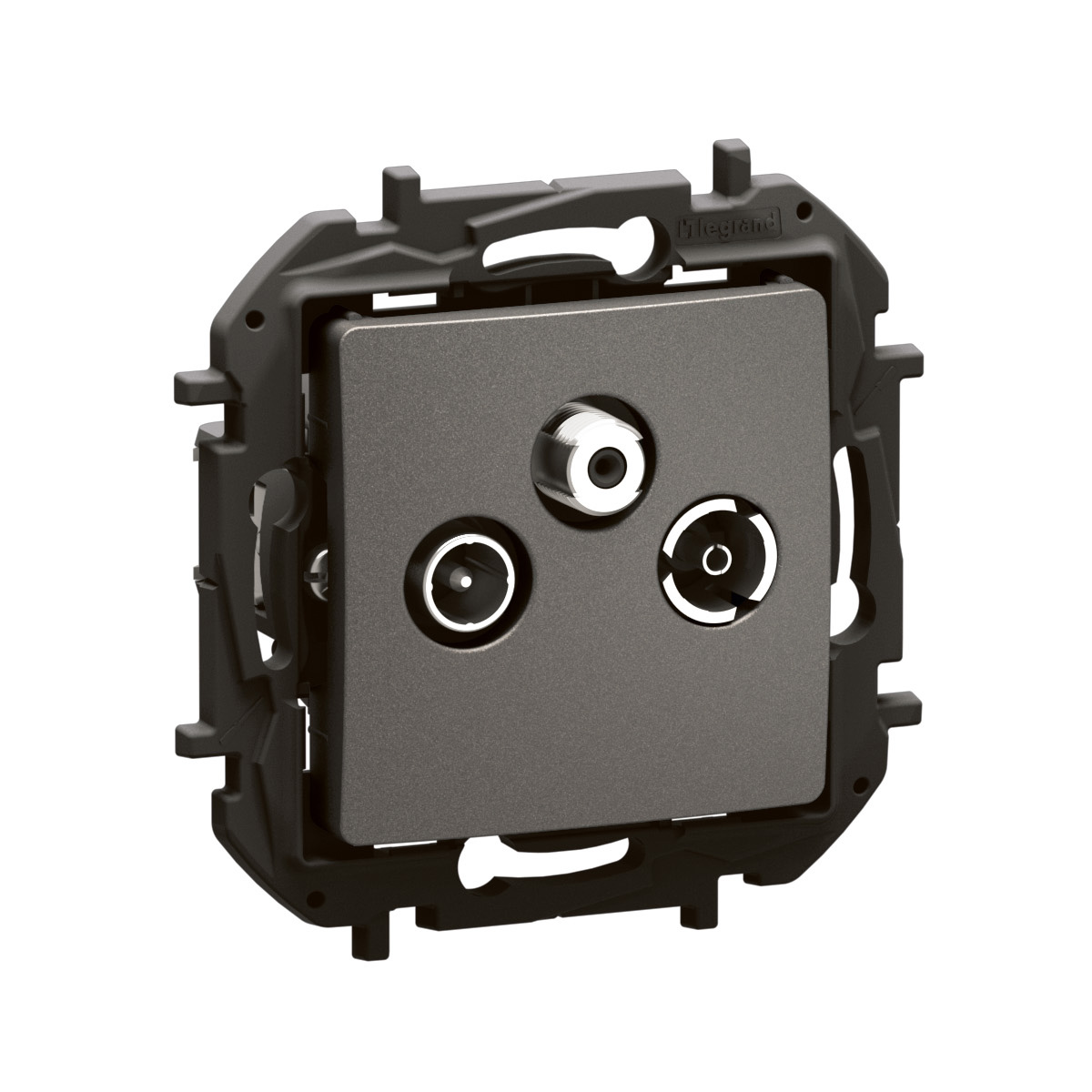

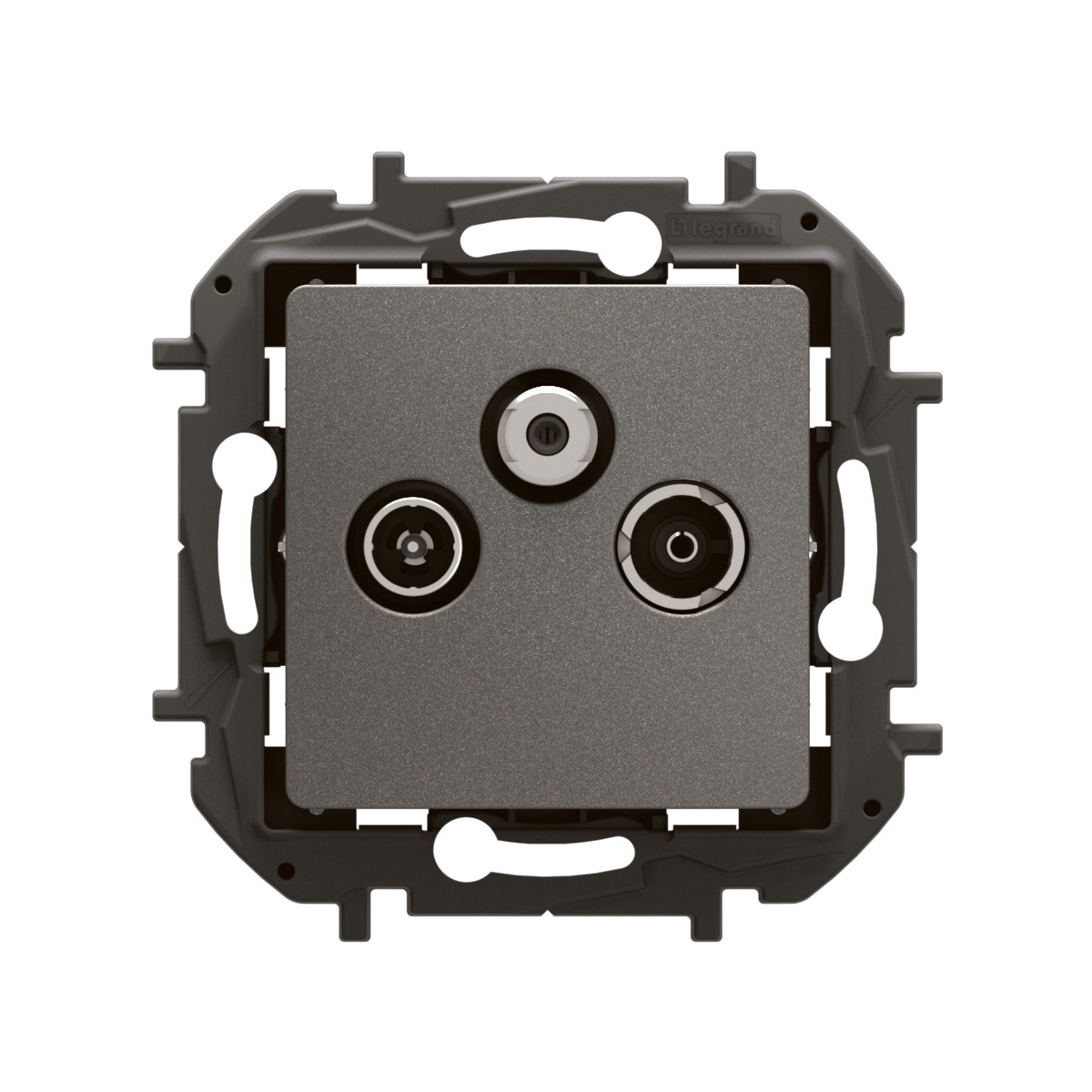

Niloé - TV/R/SAT socket terminal medium grey - Flush-mounted end socket - IP20 IK04 protection - Matte lacquered thermoplastic

Niloé Legrand

Niloé - TV/R/SAT socket terminal medium grey - Flush-mounted end socket - IP20 IK04 protection - Matte lacquered thermoplastic

REF. NP4107MG EAN. 3414972773638
The Niloé terminal TV socket offers reliable TV/RD/SAT connectivity for all television types. Flush-mounted end socket with claw and screw fastening, matte medium grey lacquered thermoplastic, IP20 protection.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé terminal TV socket offers reliable TV/RD/SAT connectivity for all television types. Flush-mounted end socket with claw and screw fastening, matte medium grey lacquered thermoplastic, IP20 protection.

Product characteristics
  • Plastic support frame with high rigidity and IK04 impact resistance for enhanced durability.
  • Recyclable paper box packaging designed for efficient handling and professional installation.
  • Flush-mounted TV/RD/SAT end socket with lacquered, matt thermoplastic housing for robust performance.
  • Halogen-free construction and IP20 ingress protection ensure safety in indoor environments.
  • Compact dimensions (75.8x75.8x45.7mm) with claw and screw fastening for secure, easy installation.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Avantages
  • Matte Medium Grey finishing

Technical characteristics

Model End socket
Type of socket outlet TV/RD/SAT
Mounting method Flush-mounted
Number of modules (module system) 1
Suitable for cable modem No
Suitable for remote power supply No
Type of fastening Mounting with claw and screw
Colour Grey
Surface protection Lacquered
Surface finishing Matt
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 75.8 mm
Device height 75.8 mm
Device depth 45.7 mm
Min. depth of built-in installation box 14.8 mm
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Terminal marking indication No

Documentation

2 documents
Instruction Use
LE14626AA.pdf pdf (6.24 Mo)
Technical Sheet
F04352EN-00.pdf pdf (1.39 Mo)
