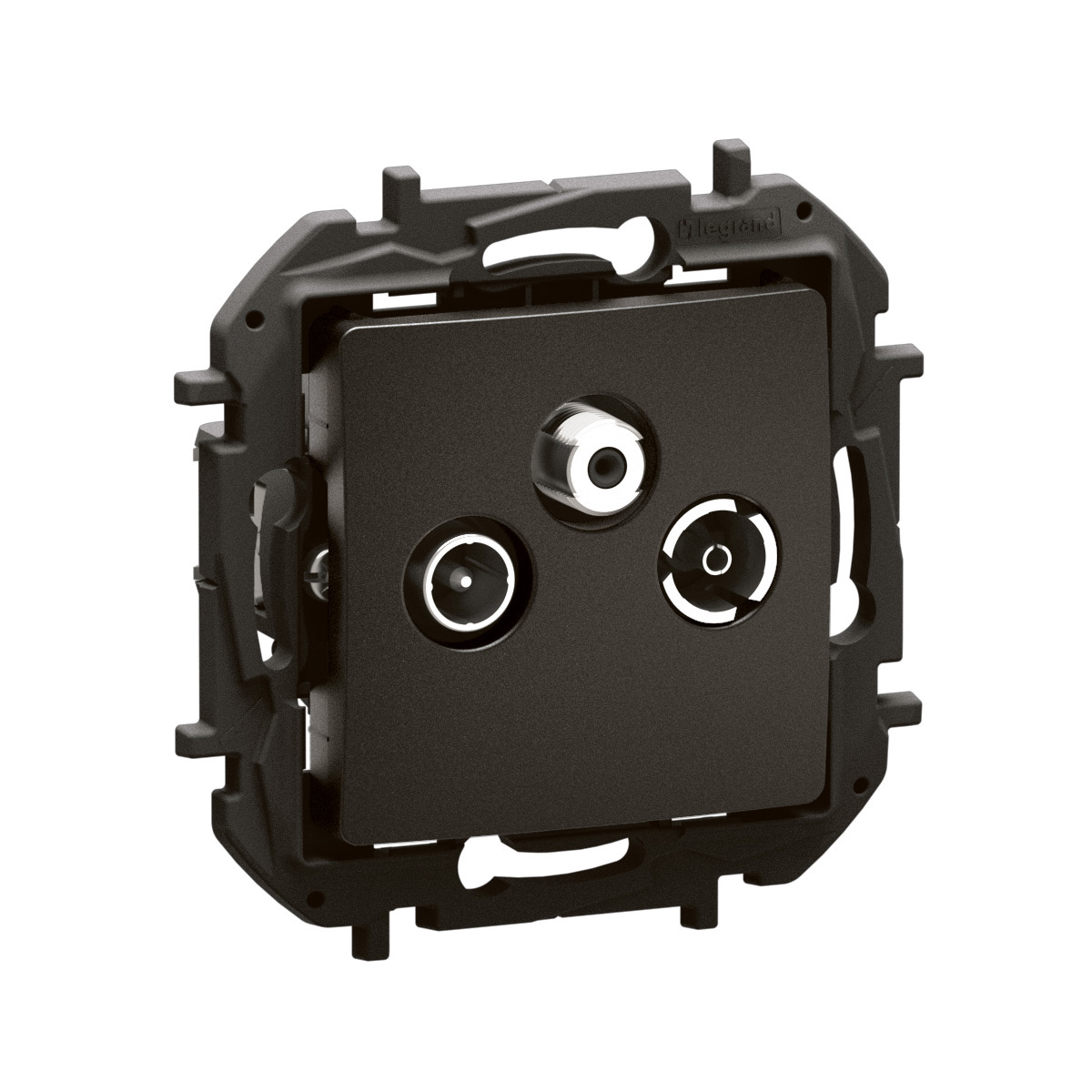

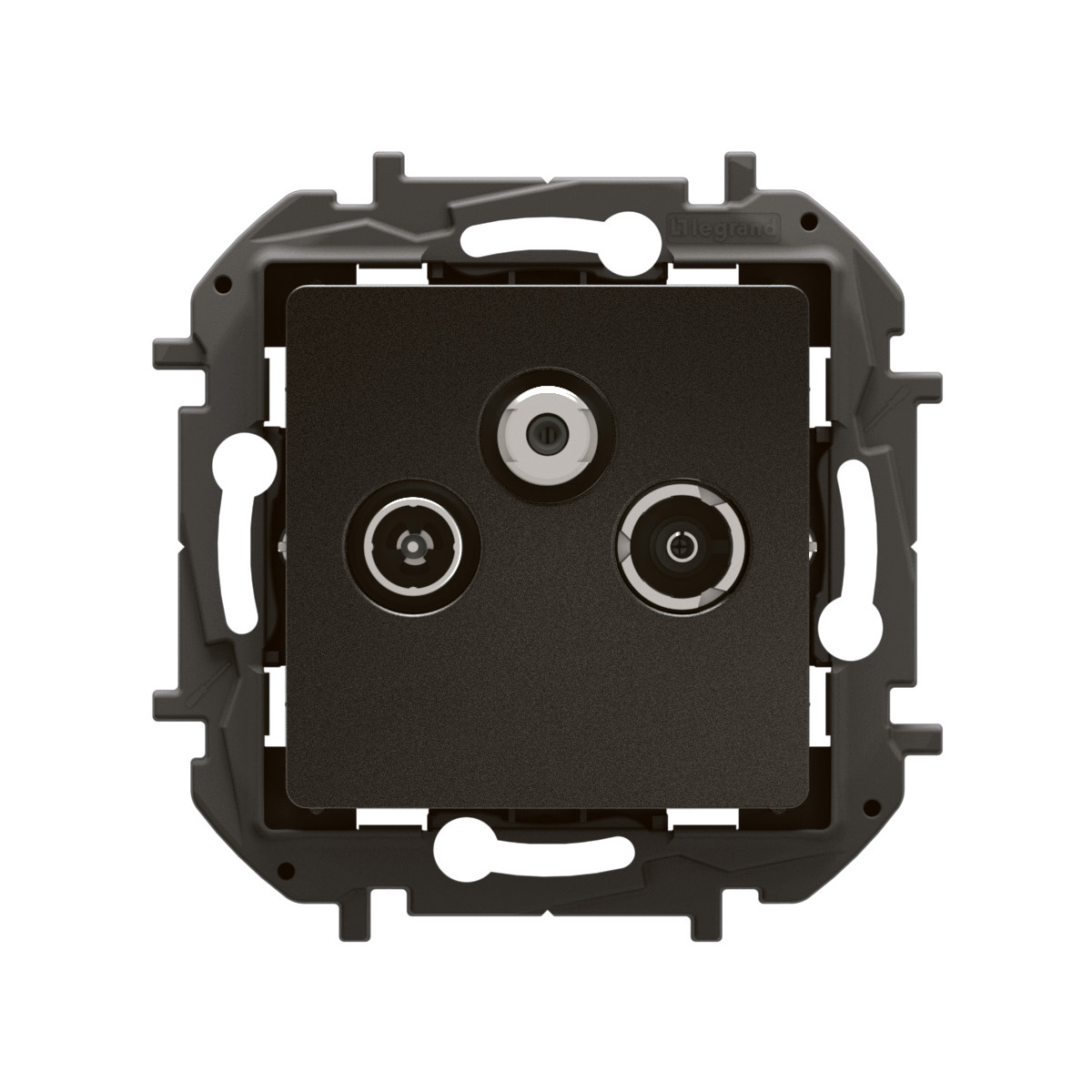

Niloé - TV/R/SAT socket star black - End socket - Flush-mounted - Matte lacquered thermoplastic IP20

Niloé Legrand

Niloé - TV/R/SAT socket star black - End socket - Flush-mounted - Matte lacquered thermoplastic IP20

REF. NP4106BK EAN. 3414972627115
The Niloé TV/R/SAT socket offers UHD-quality TV and radio signal distribution from all operators. Its flush-mounted, lacquered matt black design ensures durability and a modern look. Complete with installation plate.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé TV/R/SAT socket offers UHD-quality TV and radio signal distribution from all operators. Its flush-mounted, lacquered matt black design ensures durability and a modern look. Complete with installation plate.

Product characteristics
  • Plastic support frame constructed from high-rigidity thermoplastic ensures robust mechanical stability and high resistance to impact (IK04).
  • Recyclable paper box packaging designed for professional convenience and reduced environmental impact.
  • Flush-mounted TV/RD/SAT end socket with lacquered matte black finish for modern installations.
  • IP20 protection rating suitable for indoor use, with device dimensions of 75.8x75.8x45.7mm.
  • Halogen-free material enhances safety and environmental compliance in commercial and residential projects.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Avantages
  • Matte black finishing

Technical characteristics

Model End socket
Type of socket outlet TV/RD/SAT
Mounting method Flush-mounted
Number of modules (module system) 1
Suitable for cable modem No
Suitable for remote power supply No
Type of fastening Mounting with claw and screw
Colour Black
Surface protection Lacquered
Surface finishing Matt
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 75.8 mm
Device height 75.8 mm
Device depth 45.7 mm
Min. depth of built-in installation box 14.8 mm
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Terminal marking indication No

Documentation

2 documents
Instruction Use
LE14626AA.pdf pdf (6.24 Mo)
Technical Sheet
F04352EN-00.pdf pdf (1.39 Mo)
