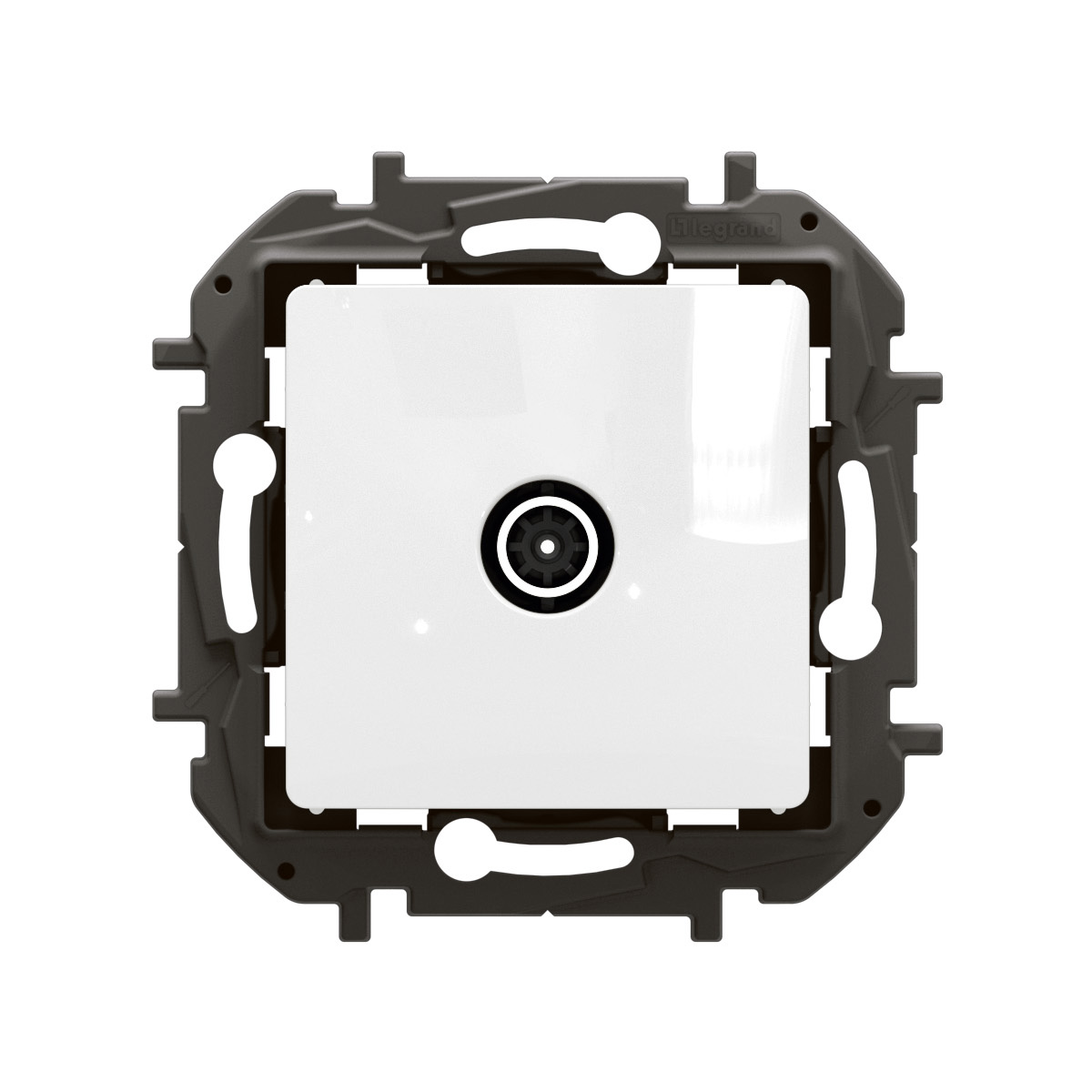

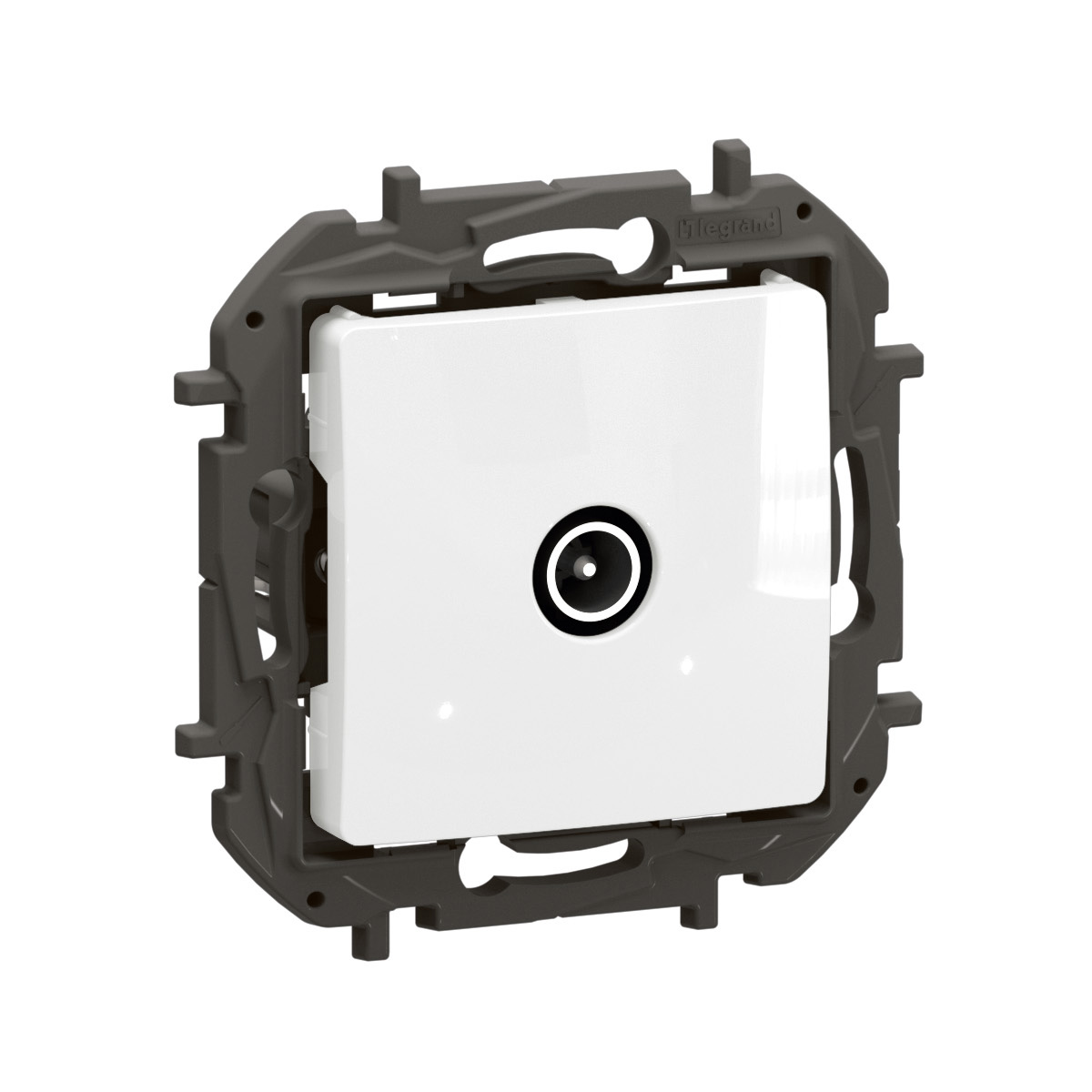

Niloé - TV socket through-wiring white - Loop-through socket - Flush-mounted - Glossy thermoplastic IP20 75.8x75.8mm

Niloé Legrand

Niloé - TV socket through-wiring white - Loop-through socket - Flush-mounted - Glossy thermoplastic IP20 75.8x75.8mm

REF. NP4102WH EAN. 3414972626934
The Niloé passthrough TV socket features loop-through design for reliable television connection, supports flush-mounted installation, glossy white thermoplastic finish, and IP20 protection for robust performance.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé passthrough TV socket features loop-through design for reliable television connection, supports flush-mounted installation, glossy white thermoplastic finish, and IP20 protection for robust performance.

Product characteristics
  • Plastic support frame ensures high rigidity and enhanced impact resistance (IK04) for reliable installation.
  • Compatible with ECO2 mechanism; supplied in a recyclable paper box for professional convenience.
  • Flush-mounted loop-through TV socket designed for through-wiring applications in antenna systems.
  • Constructed from halogen-free, glossy white thermoplastic (RAL 9003) for modern aesthetics and safety.
  • IP20 protection rating and compact dimensions (75.8x75.8x45.7mm) support indoor use in standard installation boxes.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Avantages
  • Glossy white finishing

Technical characteristics

Model Loop-through socket
Type of socket outlet TV
Mounting method Flush-mounted
Number of modules (module system) 1
Suitable for cable modem No
Suitable for remote power supply No
Type of fastening Mounting with claw and screw
Colour White
RAL-number (similar) 9003
Surface protection Untreated
Surface finishing Glossy
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 75.8 mm
Device height 75.8 mm
Device depth 45.7 mm
Min. depth of built-in installation box 14.8 mm
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Terminal marking indication No

Documentation

2 documents
Instruction Use
LE14626AA.pdf pdf (6.24 Mo)
Technical Sheet
F04328EN-00.pdf pdf (1.29 Mo)
