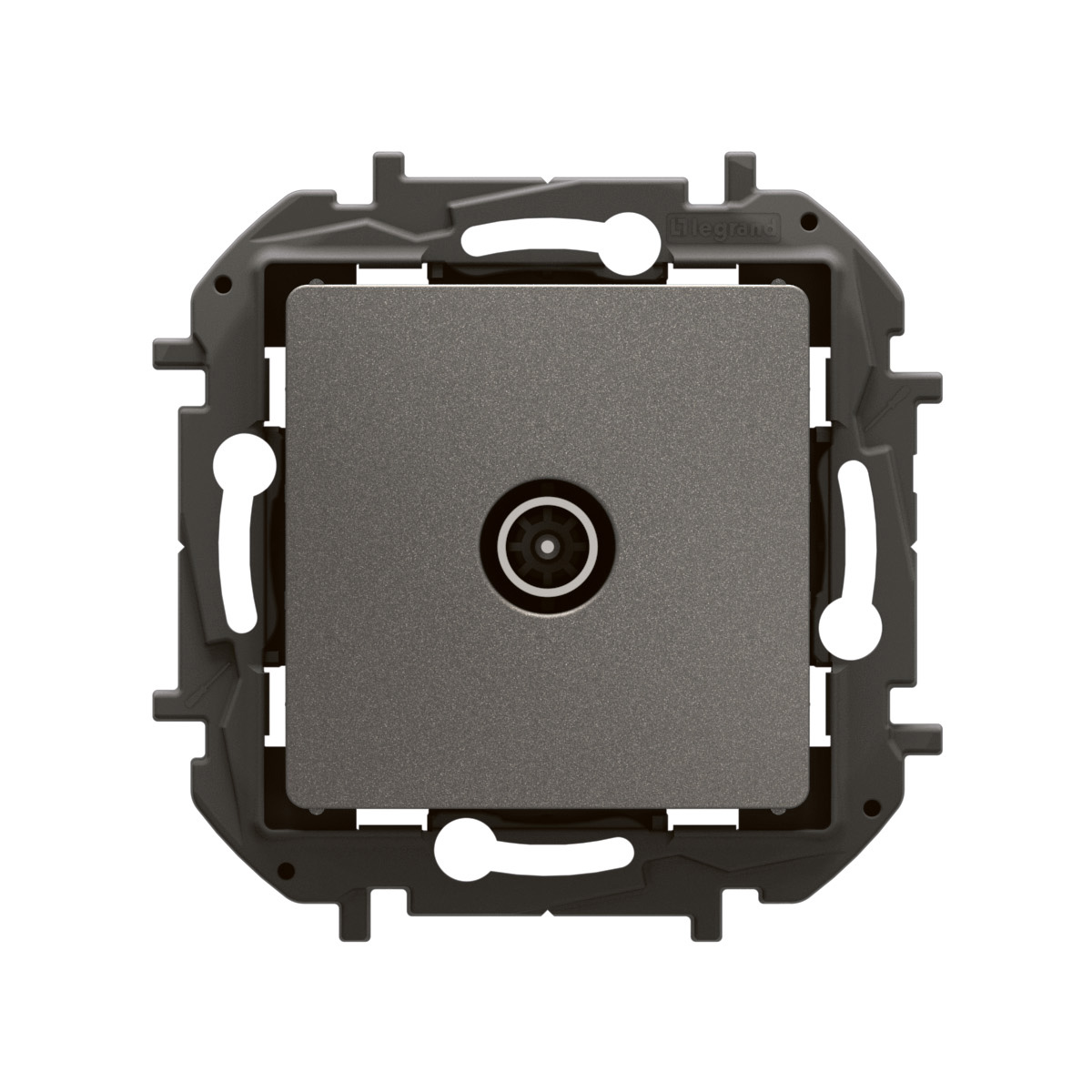

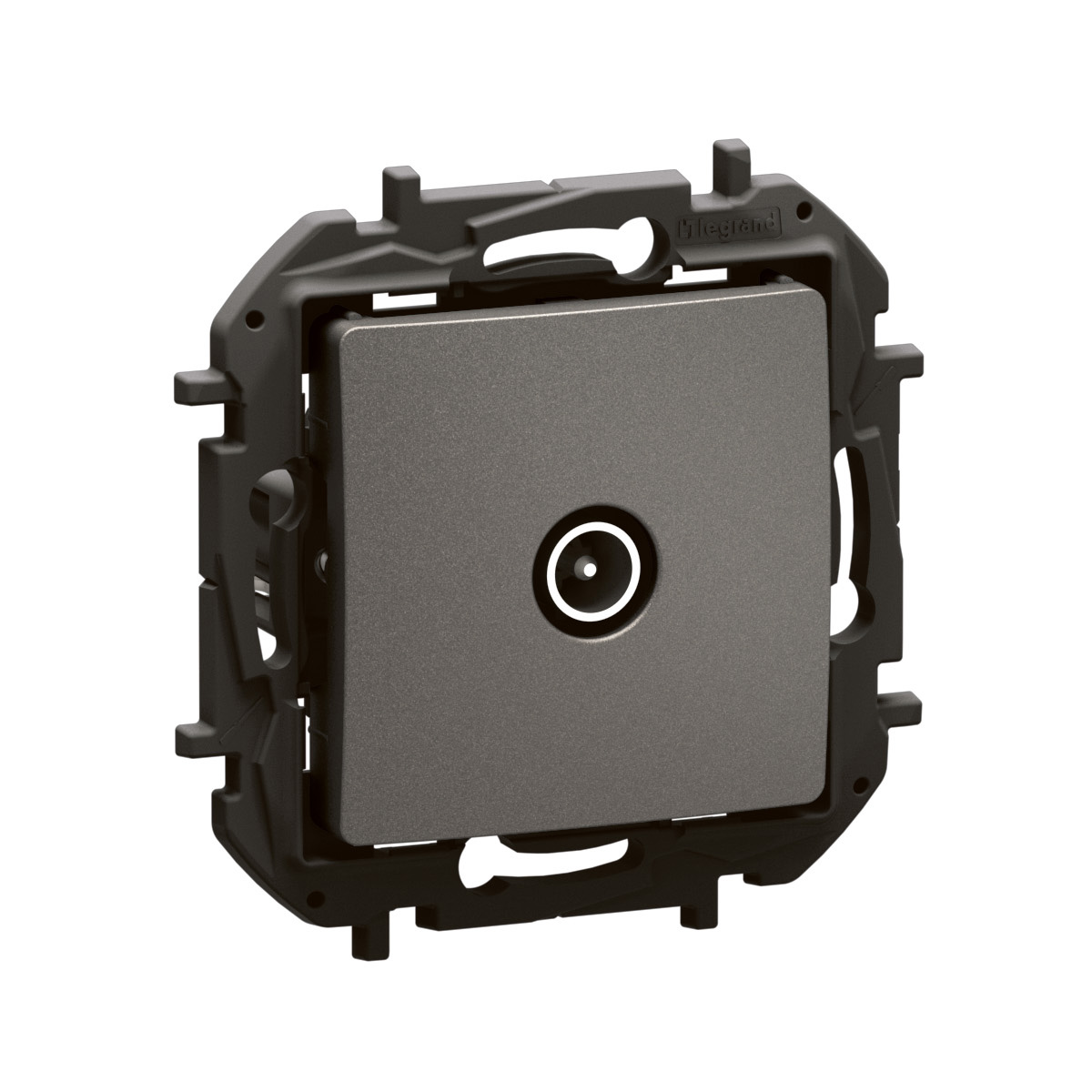

Niloé - TV socket terminal medium grey - Flush-mounted end socket - IP20 IK04 protection - Matt lacquered thermoplastic

Niloé Legrand

Niloé - TV socket terminal medium grey - Flush-mounted end socket - IP20 IK04 protection - Matt lacquered thermoplastic

REF. NP4104MG EAN. 3414972773546
The Niloé terminal TV socket is a flush-mounted end socket with matte medium grey lacquered thermoplastic finish. Claw and screw mounting ensures secure installation. IP20 and IK04 ratings provide indoor protection and durability.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé terminal TV socket is a flush-mounted end socket with matte medium grey lacquered thermoplastic finish. Claw and screw mounting ensures secure installation. IP20 and IK04 ratings provide indoor protection and durability.

Product characteristics
  • Plastic support frame constructed from thermoplastic offers high rigidity and IK04 impact resistance.
  • Recyclable paper box packaging designed for efficient handling and disposal by professionals.
  • Flush-mounted TV end socket with lacquered, matte medium grey finish for modern installations.
  • Halogen-free, IP20-rated device suitable for indoor use with operating temperature range -5°C to 40°C.
  • Compact 1-module design (75.8x75.8x45.7mm) with claw and screw fastening for secure installation.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Avantages
  • Matte Medium Grey finishing

Technical characteristics

Model End socket
Type of socket outlet TV
Mounting method Flush-mounted
Number of modules (module system) 1
Suitable for cable modem No
Suitable for remote power supply No
Type of fastening Mounting with claw and screw
Colour Grey
Surface protection Lacquered
Surface finishing Matt
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 75.8 mm
Device height 75.8 mm
Device depth 45.7 mm
Min. depth of built-in installation box 14.8 mm
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Terminal marking indication No

Documentation

2 documents
Instruction Use
LE14626AA.pdf pdf (6.24 Mo)
Technical Sheet
F04328EN-00.pdf pdf (1.29 Mo)
