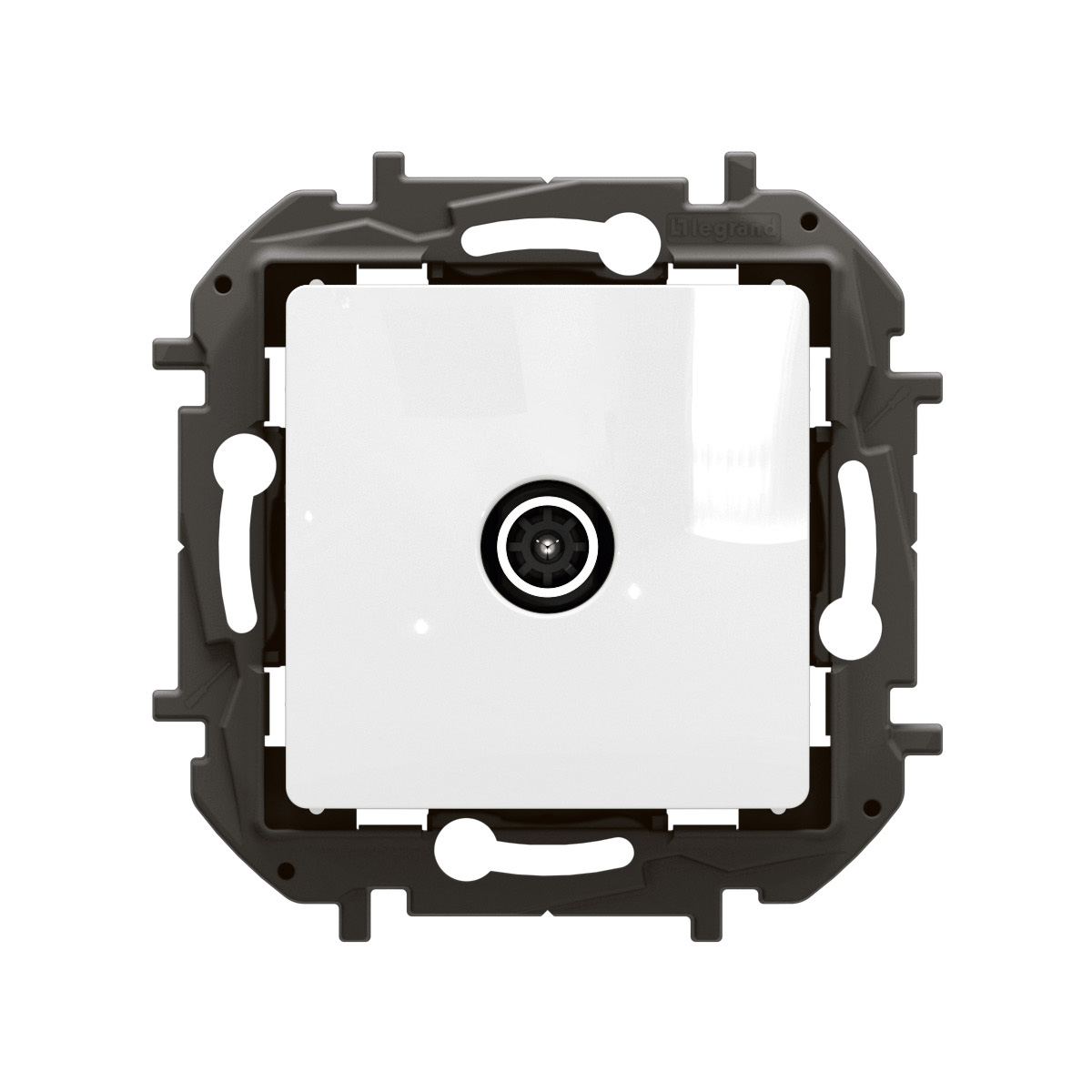

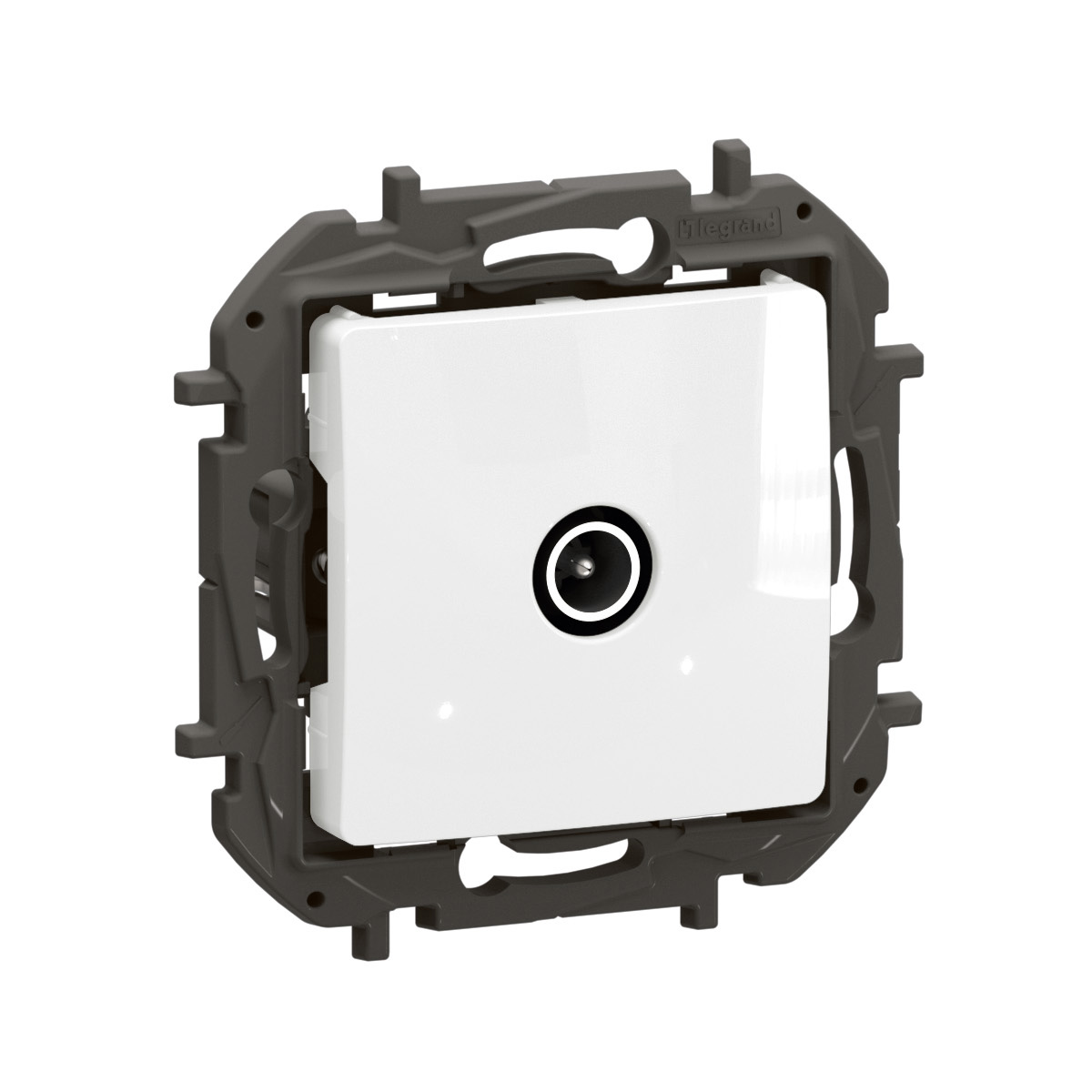

Niloé - TV socket star white - Flush-mounted end socket - Glossy white thermoplastic - IP20 IK04 75.8x75.8mm

Niloé Legrand

Niloé - TV socket star white - Flush-mounted end socket - Glossy white thermoplastic - IP20 IK04 75.8x75.8mm

REF. NP4103WH EAN. 3414972626668
The Niloé TV socket enables UHD television connectivity with a robust end socket design. Flush-mounted with claw and screw fastening, it features a glossy white thermoplastic finish for durability and a modern look.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé TV socket enables UHD television connectivity with a robust end socket design. Flush-mounted with claw and screw fastening, it features a glossy white thermoplastic finish for durability and a modern look.

Product characteristics
  • Plastic support frame offers high rigidity and IK04 impact resistance for robust installation.
  • Compatible with ECO2 mechanism; supplied in a recyclable paper box for professional convenience.
  • Flush-mounted end socket design for TV applications, suitable for 1 module systems.
  • Constructed from halogen-free, glossy white thermoplastic (RAL 9003) for enhanced safety and aesthetics.
  • IP20 protection rating and operating temperature range of -5 to 40°C ensure reliable indoor performance.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Avantages
  • Glossy white finishing

Technical characteristics

Model End socket
Type of socket outlet TV
Mounting method Flush-mounted
Number of modules (module system) 1
Suitable for cable modem No
Suitable for remote power supply No
Type of fastening Mounting with claw and screw
Colour White
RAL-number (similar) 9003
Surface protection Untreated
Surface finishing Glossy
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 75.8 mm
Device height 75.8 mm
Device depth 45.7 mm
Min. depth of built-in installation box 14.8 mm
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Terminal marking indication No

Documentation

2 documents
Instruction Use
LE14626AA.pdf pdf (6.24 Mo)
Technical Sheet
F04328EN-00.pdf pdf (1.29 Mo)
