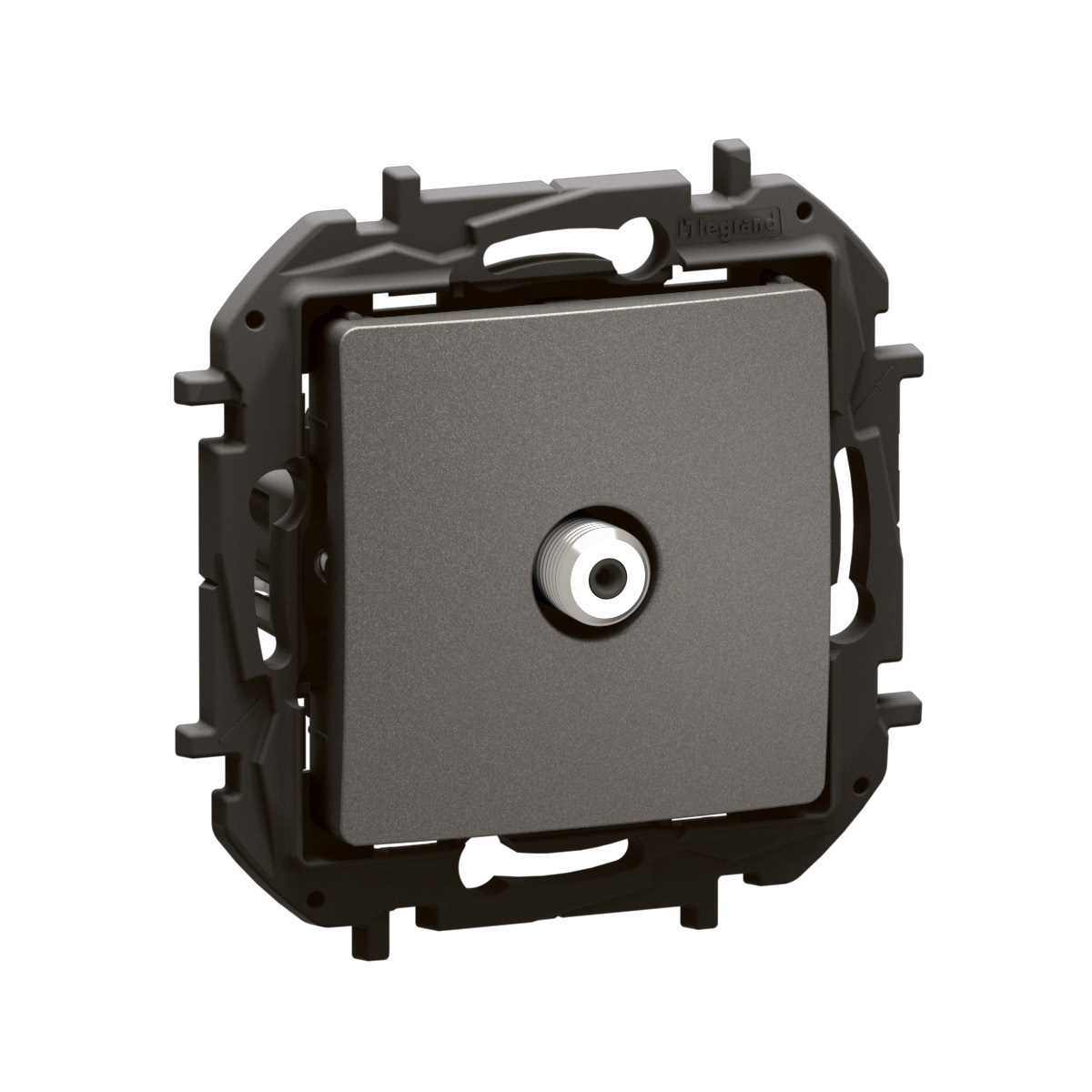

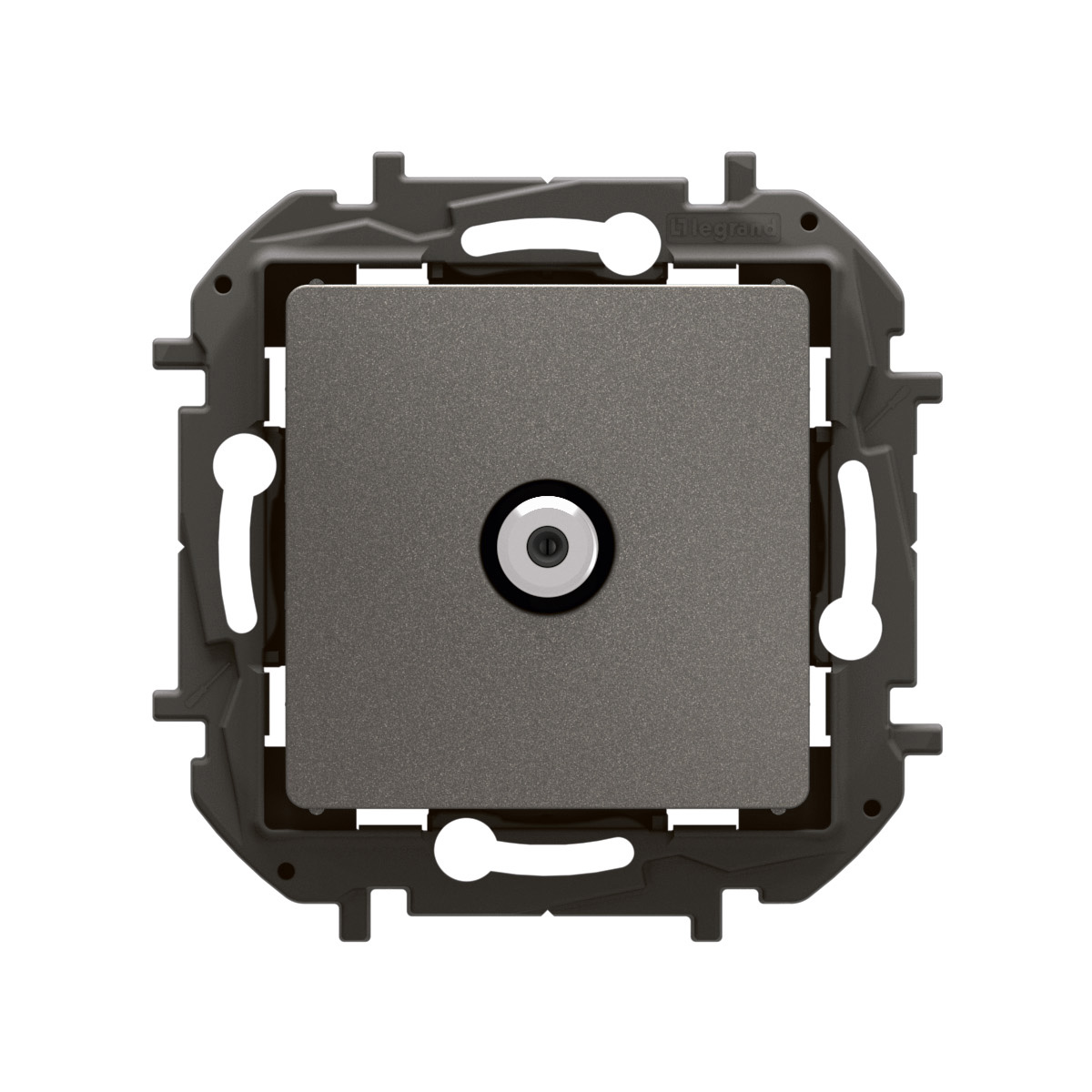

Niloé - TV socket F-type star medium grey - Flush-mounted end socket - IP20 IK04 protection - Matte lacquered thermoplastic

Niloé Legrand

Niloé - TV socket F-type star medium grey - Flush-mounted end socket - IP20 IK04 protection - Matte lacquered thermoplastic

REF. NP4100MG EAN. 3414972773454
The Niloé TV socket F-type enables UHD television connectivity with robust claw and screw mounting. Its matte medium grey, lacquered thermoplastic finish ensures durability and a modern aesthetic. Complete with plate for flush mounting.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé TV socket F-type enables UHD television connectivity with robust claw and screw mounting. Its matte medium grey, lacquered thermoplastic finish ensures durability and a modern aesthetic. Complete with plate for flush mounting.

Product characteristics
  • Plastic support frame constructed from high-rigidity thermoplastic for enhanced mechanical resistance.
  • Recyclable paper box packaging designed for efficient handling and professional installation.
  • Flush-mounted F-type TV end socket in matte medium grey, suitable for 1 module systems.
  • IP20 and IK04 rated for indoor use, providing basic ingress and impact protection.
  • Halogen-free, lacquered surface with 75.8x75.8x45.7mm device dimensions for safe, durable integration.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Avantages
  • Matte Medium Grey finishing

Technical characteristics

Model End socket
Type of socket outlet TV
Mounting method Flush-mounted
Number of modules (module system) 1
Assembly arrangement Basic element with central cover plate
Number of outlets 1
Suitable for cable modem No
Suitable for remote power supply No
Type of fastening Mounting with claw and screw
Colour Grey
Surface protection Lacquered
Surface finishing Matt
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 75.8 mm
Device height 75.8 mm
Device depth 45.7 mm
Min. depth of built-in installation box 14.8 mm
Built-in depth 30 mm
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Terminal marking indication No

Documentation

2 documents
Instruction Use
LE14626AA.pdf pdf (6.24 Mo)
Technical Sheet
F04328EN-00.pdf pdf (1.29 Mo)
