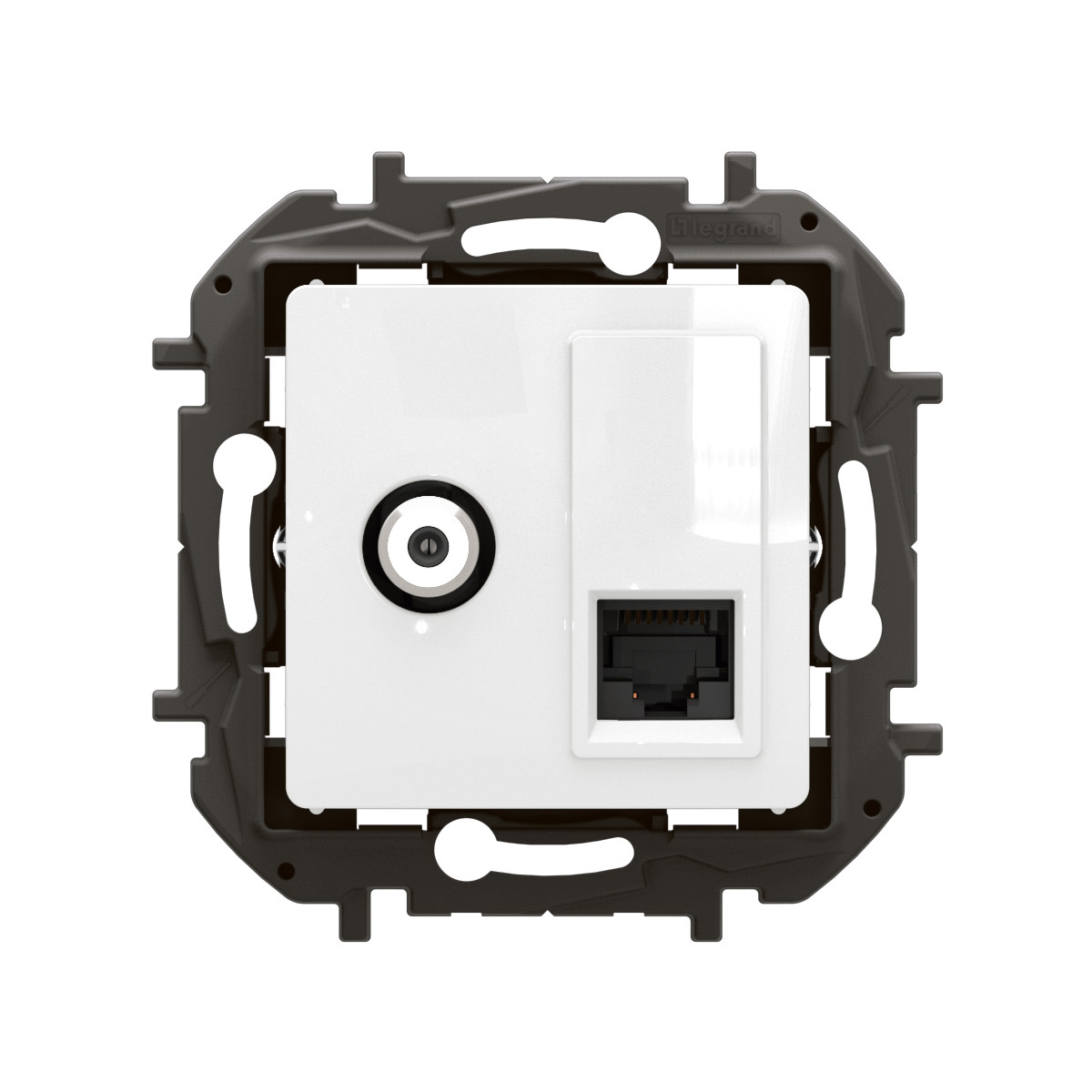

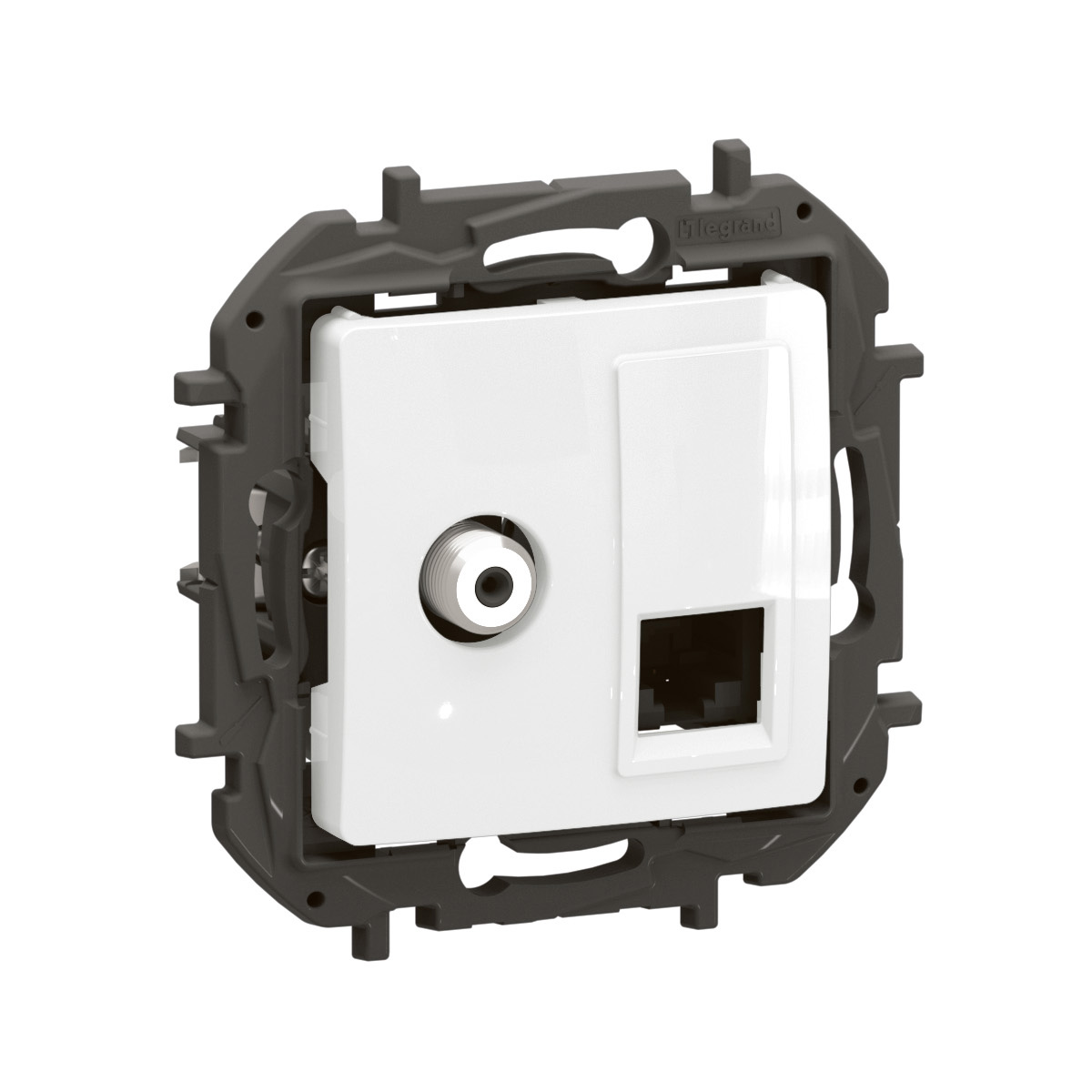

Niloé - TV f-type + RJ45 CAT6 UTP white - Flush-mounted installation - IP20 protection - 75.8x75.8x42mm dimensions

Niloé Legrand

Niloé - TV f-type + RJ45 CAT6 UTP white - Flush-mounted installation - IP20 protection - 75.8x75.8x42mm dimensions

REF. NP493WH EAN. 3414972626729
The Niloé TV + RJ45 socket enables simultaneous TV and data connections, with Cat 6 RJ45 supporting up to 1Gbit/s and an F-type TV port for HD signal quality. Includes plate for flush-mounted installation.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé TV + RJ45 socket enables simultaneous TV and data connections, with Cat 6 RJ45 supporting up to 1Gbit/s and an F-type TV port for HD signal quality. Includes plate for flush-mounted installation.

Product characteristics
  • RJ45 Cat 6 port supports data rates up to 1Gbit/s, enabling rapid file transfers and high-speed network connectivity for professional applications.
  • Star cabling topology (1 socket = 1 cable to antenna) ensures HD-quality TV signal distribution for all operators (dvbt, satellite, Cablecast), compliant with EN 50083-4 and EN 50083-2 standards.
  • Hdtv compatible with low attenuation (
  • Rigid plastic support frame offers enhanced mechanical strength and durability, with IK04 impact resistance for reliable installation.
  • Compatible with ECO2 mechanism; supplied in a recyclable paper box for environmentally conscious and efficient professional use.
Recommendation / Restriction
  • Compliant with ISO/IEC 11801 edition 3.0 (2017) standards. Mimimum 40mm depth electrical installation box needed. Take AWG22 up to AWG26 single-core cables. Take AWG26 multicore cables. Indoor use only.

The product's benefits

Installation
  • Shallow depth RJ45 mechanism facilitating mounting into the flush-mounted box. RJ45 equipped with a tool less quick connector for intuitive and reliable wiring. The TV socket has been designed for intuitive insertion of the cable. The connection to the terminal block is easy and fast. The visible connection allows to know with certainty if the cable is tight.
Usage
  • Suitable for residential installation. Very suitable RJ45 for downloads, streaming or online games requiring low latency. Optimized TV socket for new UHD or 4K TVs: designed for optimal signal reception.
Avantages
  • Glossy white finishing
  • Class A certified shielding: protects against interference caused by new signals used by mobile phones (3G, 4G, 5G). These unwanted signals can cause pixelation, image jamming and noise disturbances.
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation. Can be installed in a normal (single) flush mounting box, no need to additional wall groove cutting or cabling.

Technical characteristics

Surface mounting No
Flush-mounted installation Yes
Duct installation No
Floor box/subfloor mounted No
Type of fastening Other
Assembly arrangement Central cover plate
Type of connector Other
Category Other
Colour White
RAL-number 9003
Shielded buses No
Shielded housing No
Separate earthing connection No
With label space No
Compatible with third-party covers No
Separate strain relief No
Outlet direction Straight
With dust cover No
Degree of protection (IP) IP20
Mechanical coding No
Colour coding Yes
Device width 75.8 mm
Device height 75.8 mm
Device depth 42 mm
Built-in depth 30 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Terminal marking indication No
Halogen free Yes
Antimicrobial treatment No
Mounting method Not applicable
Tube diameter for wall mounted product (Min-Max) 58-58 mm
Vertical fixing center distance (Min-Max) 60-60 mm
Horizontal fixing center distance (Min-Max) 60-60 mm
Cable support Not applicable

Documentation

2 documents
Technical Sheet
F04358EN-00.pdf pdf (2.11 Mo)
Instruction Use
LE14628AA.pdf pdf (7.41 Mo)
