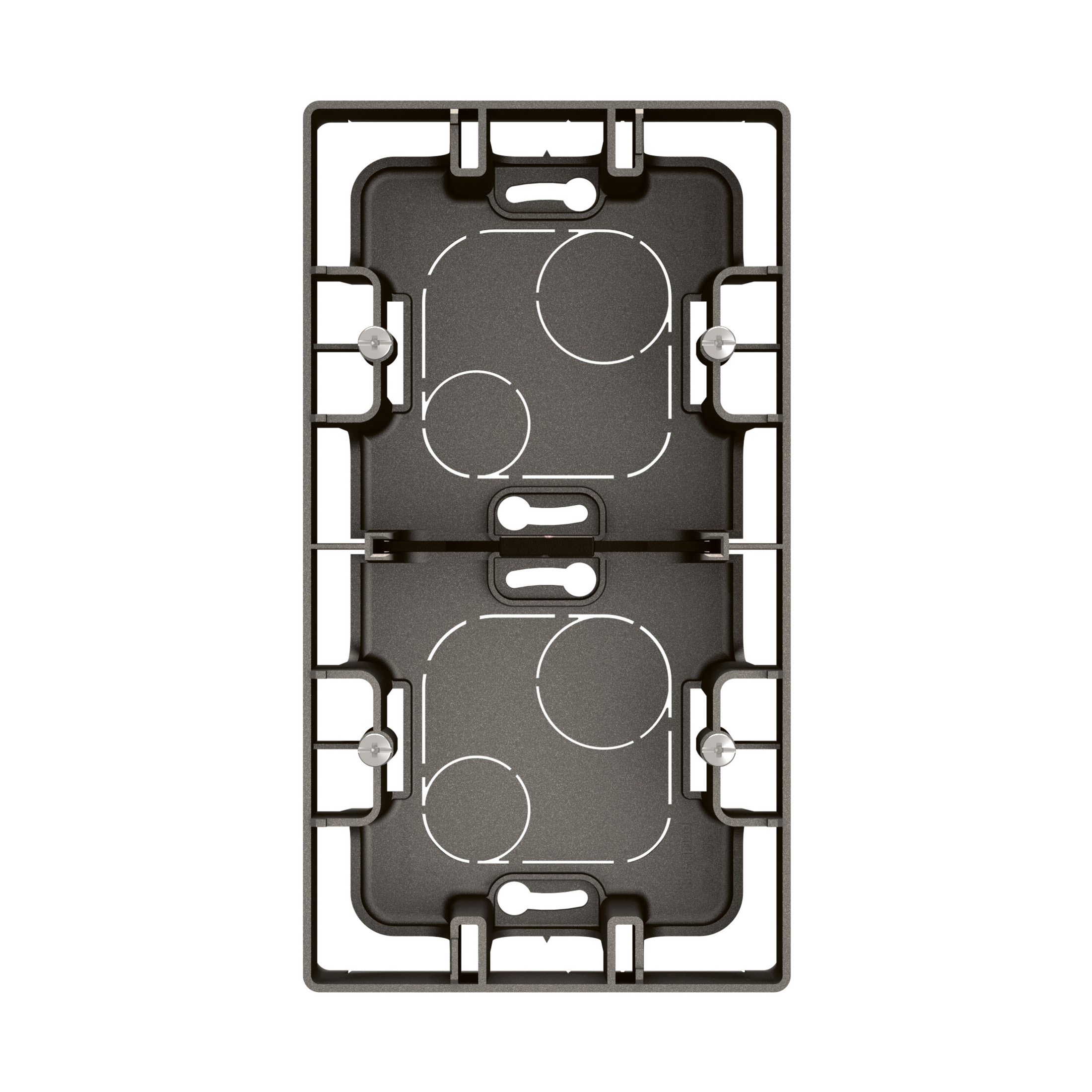

Niloé - Surface mounting box 2-gang medium grey - IP2X protection - Halogen free thermoplastic - Dual cable and duct entry

Niloé Legrand

Niloé - Surface mounting box 2-gang medium grey - IP2X protection - Halogen free thermoplastic - Dual cable and duct entry

REF. NP162MG EAN. 3414972810401
The Niloé 2-gang surface mounting box features robust thermoplastic construction, IP2X protection, and a matte medium grey finish. Includes cover plates or rockers and a 2-gang plate for multigang configurations.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé 2-gang surface mounting box features robust thermoplastic construction, IP2X protection, and a matte medium grey finish. Includes cover plates or rockers and a 2-gang plate for multigang configurations.

Product characteristics
  • Plastic support frame constructed from high-rigidity thermoplastic for enhanced mechanical strength and durability.
  • Recyclable paper packaging designed for efficient handling and disposal by professionals.
  • Accommodates two modular domestic switching devices with both horizontal and vertical mounting options.
  • Matt medium grey lacquered finish provides a modern aesthetic and increased surface protection.
  • IP2X and IK02 rated for basic ingress and impact protection, suitable for indoor environments with operating temperatures from -5°C to 40°C.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Avantages
  • Matte medium grey finishing

Technical characteristics

Antimicrobial treatment No
Assembly arrangement Surface mounted frame
Suitable for modular domestic switching devices Yes
Number of modules (module system) 2
Number of units 2
Mounting direction Horizontal and vertical
Shape Square
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Colour Grey
Transparent No
With cover frame No
With duct entry Yes
With cable entry Yes
With screw gland entry No
Shock resistant Yes
Degree of protection (IP) IP2X
Width 160 mm
Height 88.5 mm
Depth 42 mm
degree of impact strength (IK) IK02
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Entry membrane gland type Not applicable
Cable support Not applicable

Documentation

1 document
Technical Sheet
F04334EN-00.pdf pdf (0.82 Mo)
