Niloé - Surface mounting box 2-gang black - IP2X protection - Halogen free thermoplastic - Horizontal/vertical mounting

Niloé Legrand

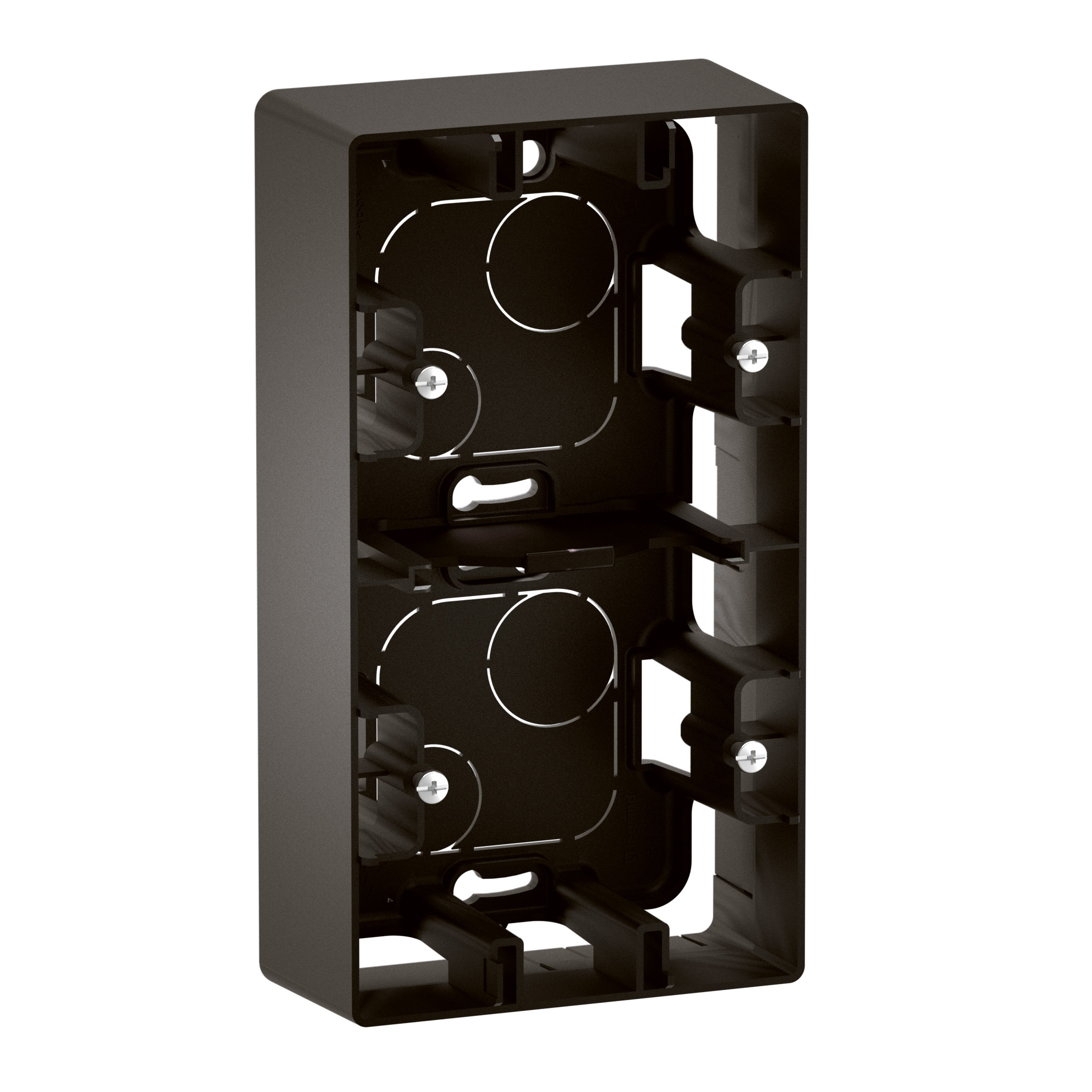

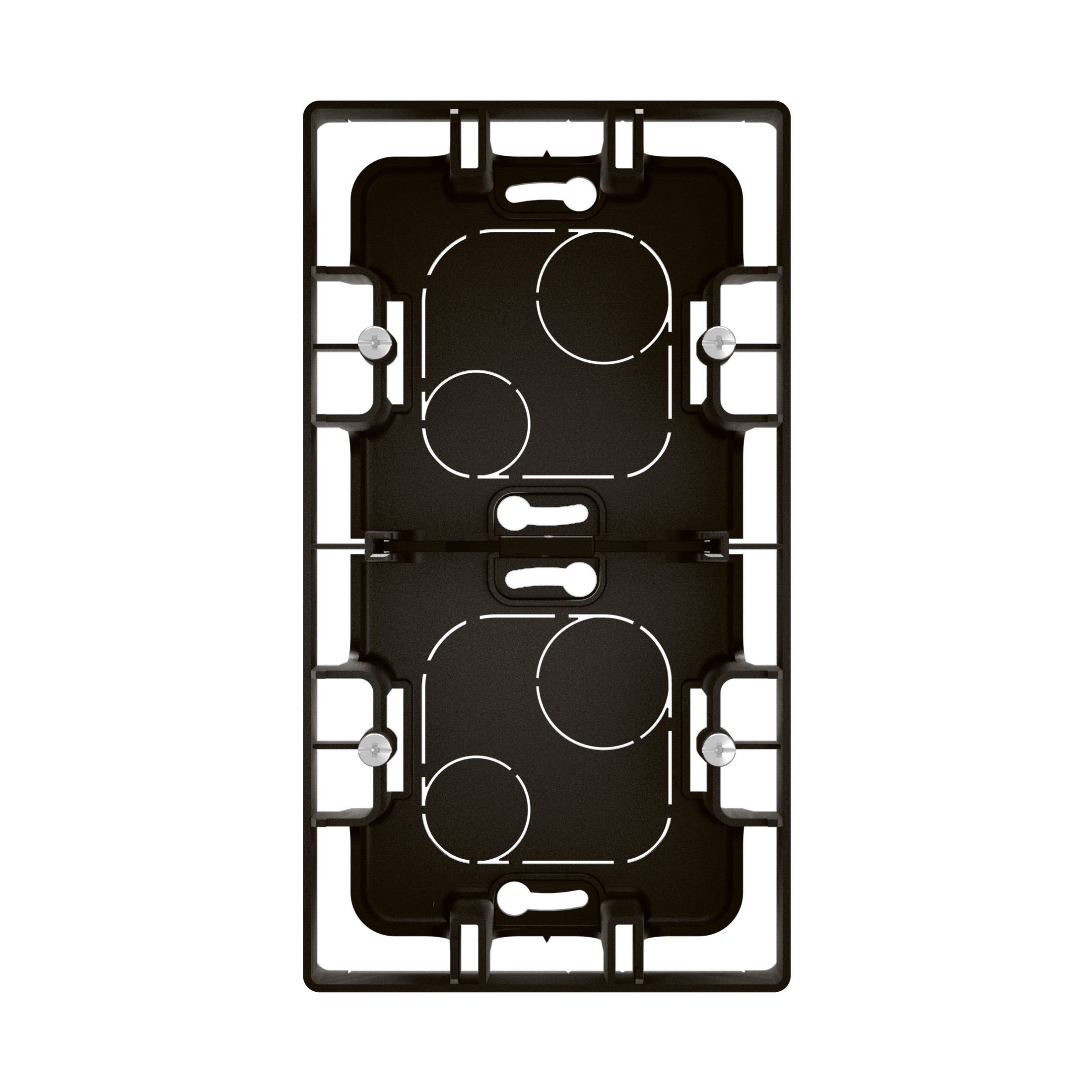

Niloé - Surface mounting box 2-gang black - IP2X protection - Halogen free thermoplastic - Horizontal/vertical mounting

REF. NP162BK EAN. 3414972643092
The Niloé 2-gang surface mounting box features robust thermoplastic construction, matte black finish, and IP2X protection. Enables external installation of two flush mounting functions. Includes cover plates and 2-gang plate.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé 2-gang surface mounting box features robust thermoplastic construction, matte black finish, and IP2X protection. Enables external installation of two flush mounting functions. Includes cover plates and 2-gang plate.

Product characteristics
  • Plastic support frame constructed from high-rigidity thermoplastic for enhanced mechanical strength.
  • Supplied in a recyclable paper box for environmentally responsible and efficient professional handling.
  • Accommodates two modular domestic switching devices with surface mounting for flexible installation.
  • Matte black lacquered finish provides a modern aesthetic and increased surface durability.
  • Ingress protection rating of IP2X and impact resistance IK02 ensure reliable indoor performance.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Avantages
  • Matte black finishing

Technical characteristics

Antimicrobial treatment No
Assembly arrangement Surface mounted frame
Suitable for modular domestic switching devices Yes
Number of modules (module system) 2
Number of units 2
Mounting direction Horizontal and vertical
Shape Square
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Colour Black
Transparent No
With cover frame No
With duct entry Yes
With cable entry Yes
With screw gland entry No
Shock resistant Yes
Degree of protection (IP) IP2X
Width 160 mm
Height 88.5 mm
Depth 42 mm
degree of impact strength (IK) IK02
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Entry membrane gland type Not applicable
Cable support Not applicable

Documentation

1 document
Technical Sheet
F04334EN-00.pdf pdf (0.82 Mo)
